12.5 Small Wheel excavator manufacturer

Adopt a new intelligent control system,with powerful big data analysis and storage functions,timely warning tips

Full-time four-wheel drive,walking motor through the gearbox,differential directly drive four wheels,can cope with various situations

Reinforced structural parts,more suitable for harsh working conditions,improve durability

Contact Now E-mail Telephone WhatsApp

Product Details

12.5 Ton wheel excavator,Double balance hydraulic suspension system,when the road is not normal,the suspension system can automatically adjust the front axle tilt Angle,so that the driving level,reduce the vehicle jolt,improve comfort

12.5 Ton Wheel excavator

Product parameter

Technical Specification
ShippingLength	7900mm
ShippingHeight	3255mm
OverllWidth	2580mm
Tail turning radius	2395mm
Turntable height	2500mm
WheelTread	2600mm
Wheelbase	1900mm
Boom length	4600mm
Stick length	2200mm

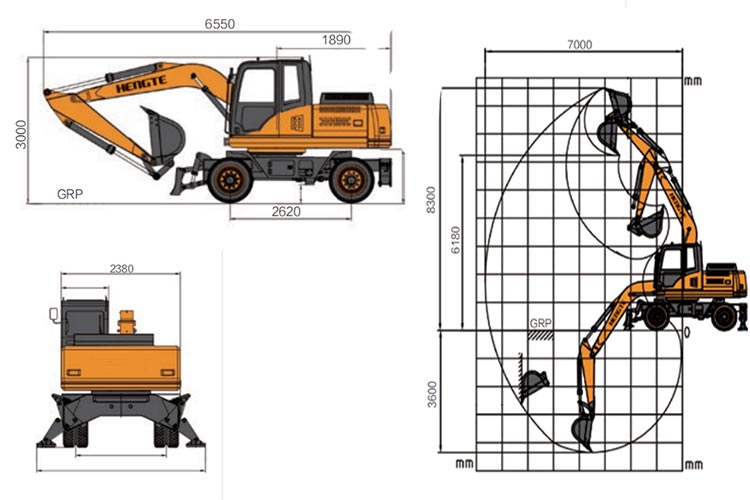

Working Range and Digging Force
Max.Digging Radius	8060mm
Max.DiggingHeight	8700mm
Max.DiggingDepth	4865mm
Max.Unloading height	6300mm
BucketForces	85kn
ArmForces	53kn
BucketVolume	0.6m3
Gradebility	>60%
SwingSpeed	13-14r/min
TravelSpeed	30Km/h

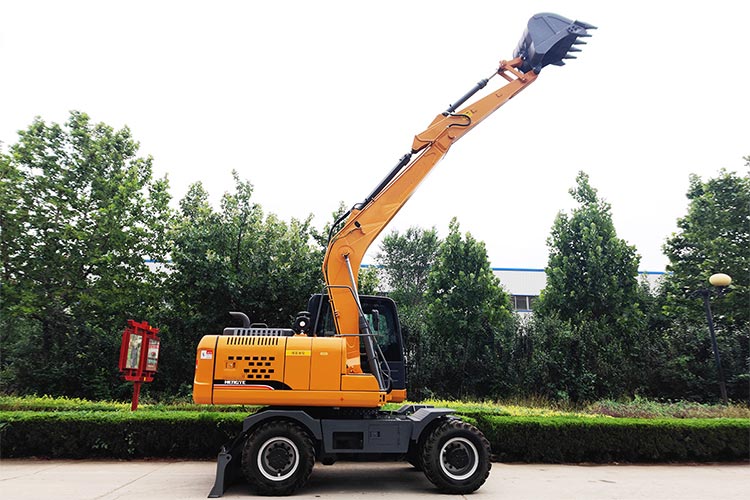

12.5 Ton Wheel excavator

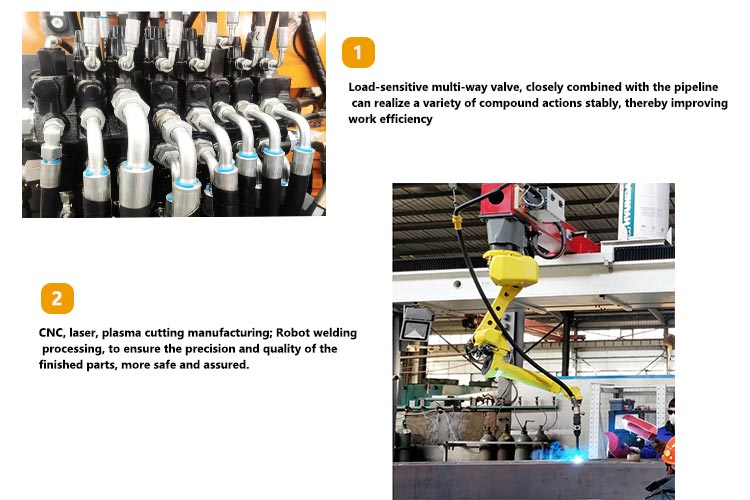

Product details

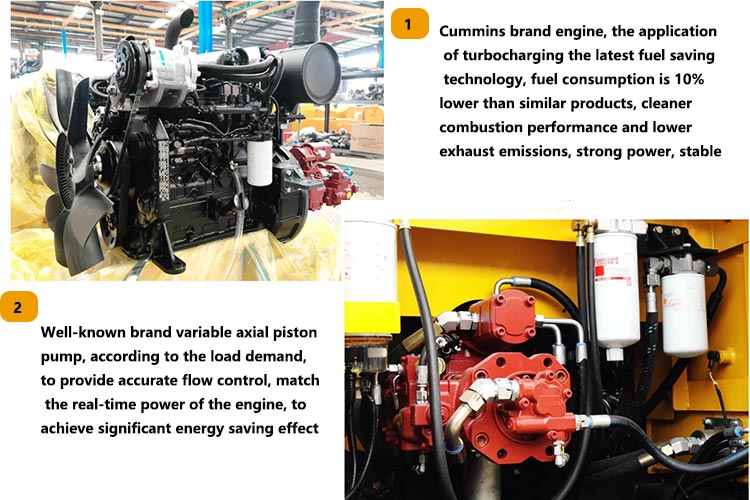

The new generation of fully hydraulic wheeled 12.5 Ton excavators uses a well-known brand engine with high power and low fuel consumption to ensure the strong power and power reserve of the whole machine

12.5 Ton wheel excavator

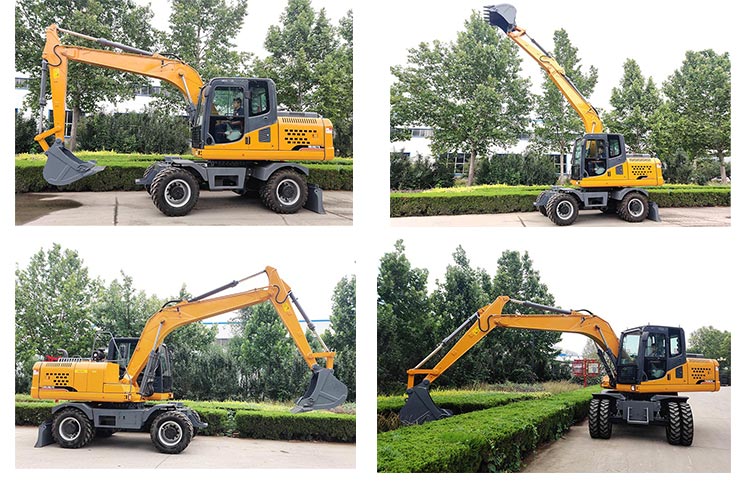

Product muiti-angle display

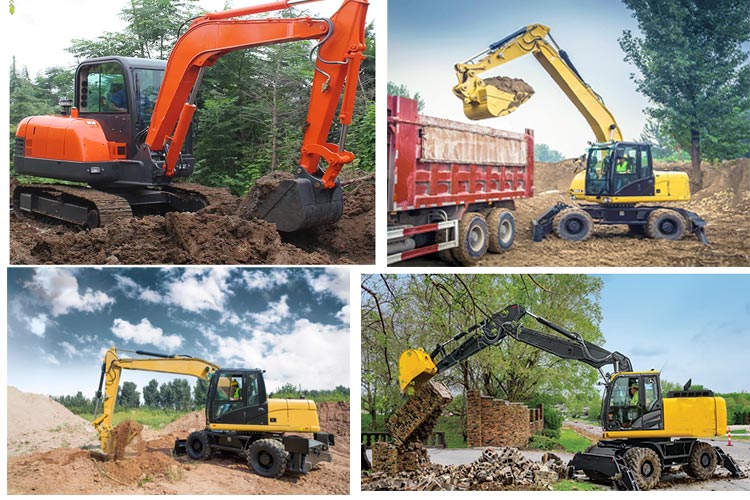

Application scenarios

it has a wide range of applications in greenhouses,indoors,landcaping,etc.,such as deepening orchard fertilization,watercourses,planting trees,digging cable trenches,digging water pipes,indoor crushing,etc

12.5 Ton wheel excavator
