15 Ton Large hydraulic wheel excavator Factory price

1、Adopt a new intelligent control system,with powerful big data analysis and storage functions,timely warning tips

2、Full-time four-wheel drive,walking motor through the gearbox,differential directly drive four wheels,can cope with various situations

3、Reinforced structural parts,more suitable for harsh working conditions,improve durability

Email:Sunny@hoclshine.com

WhatsApp:+8615806625431

  Contact Now E-mail Telephone WhatsApp
Product Details

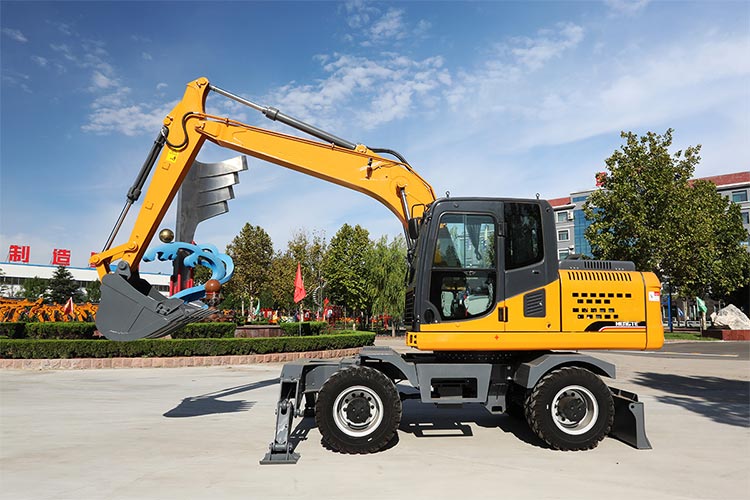

15 Ton Wheel excavator, Double balance hydraulic suspension system,when the road is not normal,the suspension system can automatically adjust the front axle tilt Angle,So that the driving level,reduce the vehicle jolt,improve comfort

15 Ton wheel excavator

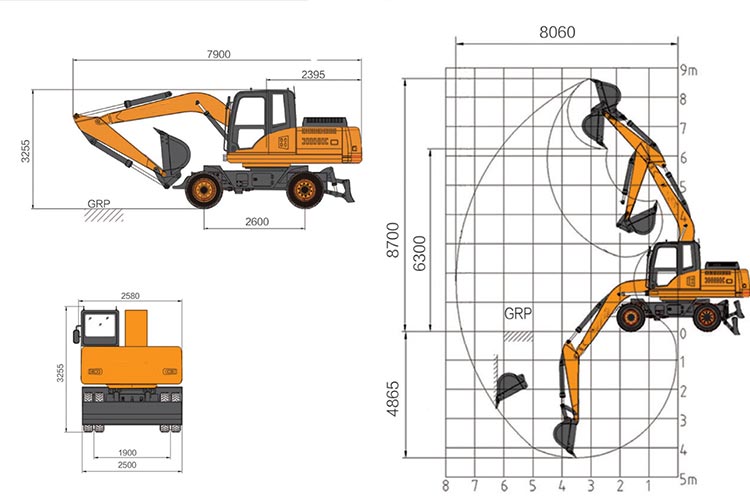

Product parameter


                                              Technical Specification
ShippingLength7900mm
ShippingHeight3255mm
OverallWidth2580mm
Tail turning radius2395mm
Turntable height2500mm
WheelTread2600mm
Wheelbase1900mm
Boom length4600mm
Stick length2200mm


                                                        Working Range and Digging Force
Max.DiggingRadius8060mm
Max.DiggingHeight8700mm
Max.DiggingDepth4865mm
Max.Unloading height6300mm
BucketForces85kn
ArmForces53kn
BucketVolume0.6m3
Gradebility>60%
SwingSpeed13-14r/min
TravelSpeed30km/h

15 Ton Wheel excavator

Product details

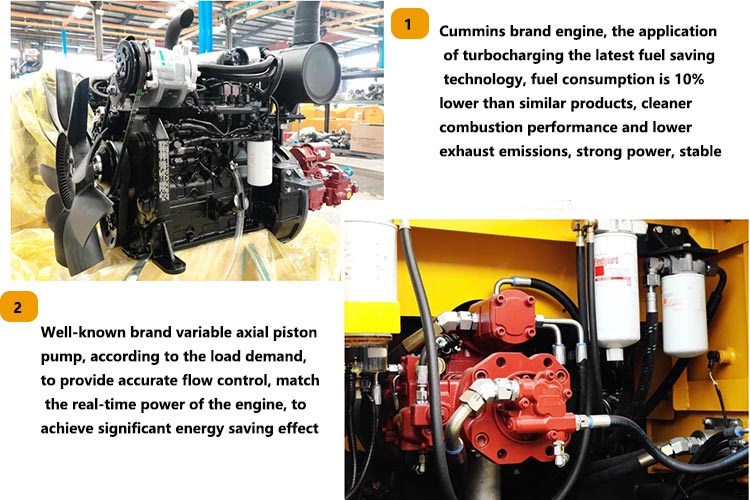

The new generation of fully hydraulic wheeled 15 Ton excavators uses a well-known brand engine with high power and low fuel consumption to ensure the strong power and power reserve of the whole machine

15 Ton wheel excavator

15 Ton wheel excavator

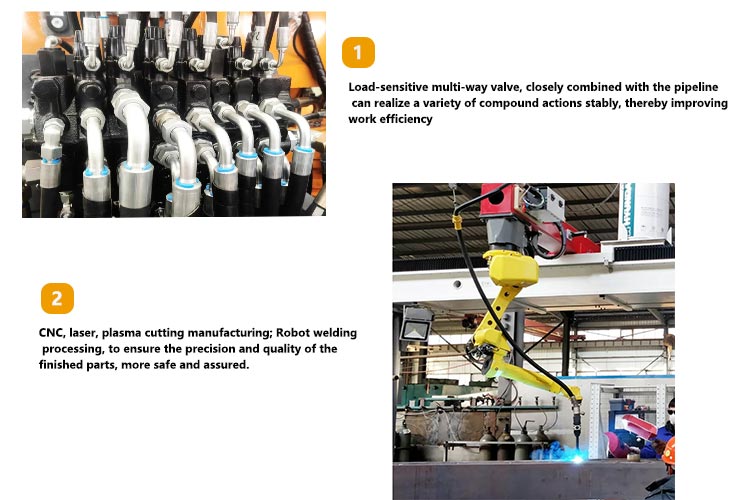

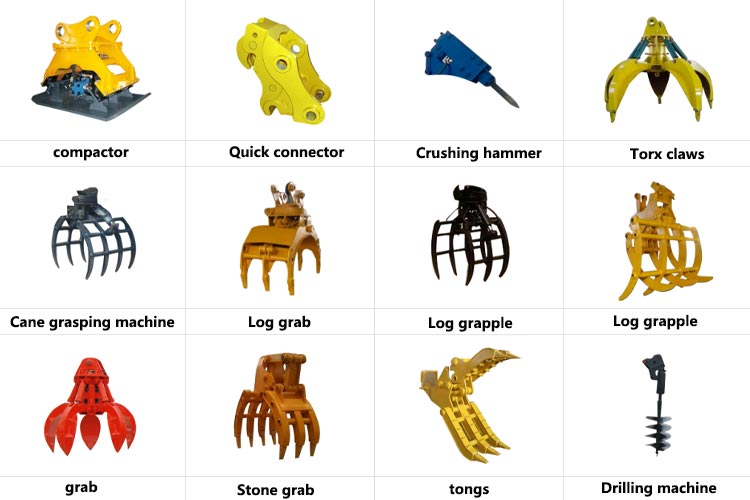

A variety of accessories to choose from, a muiti-purpose machine

15 Ton wheel excavator

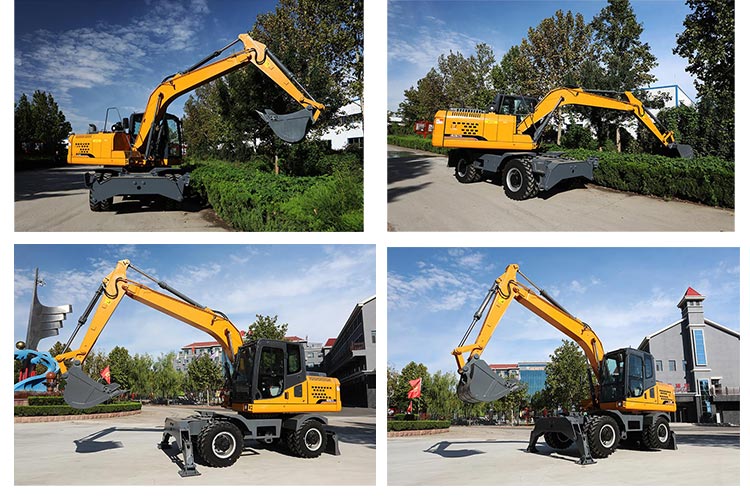

Product muiti-angle display

15 Ton wheel excavator

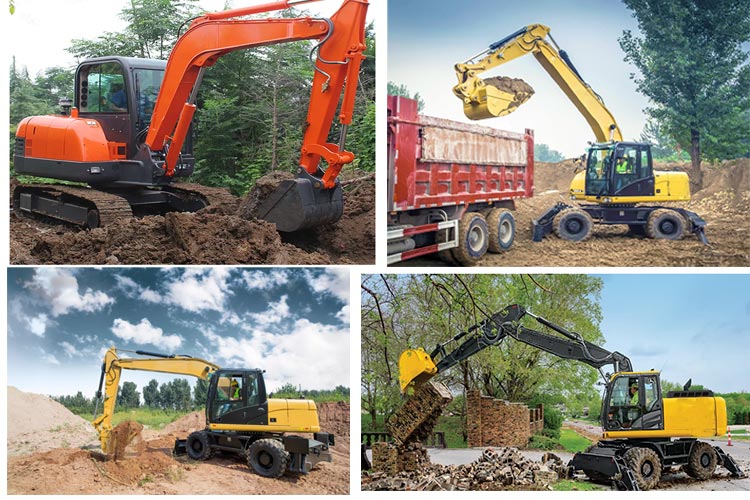

Application scenarios

it has a wide range of applications in greenhouses,indoors,landcaping,etc.,such as deepening orchard fertilization,watercourses,planting trees,digging cable trenches,digging water pipes,indoor crushing,etc

15 Ton wheel excavator

feedback

15 Ton wheel excavator

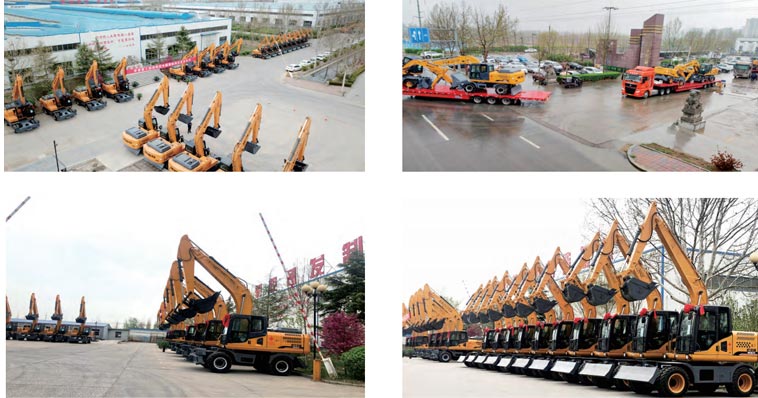

Factory

15 Ton wheel excavator
