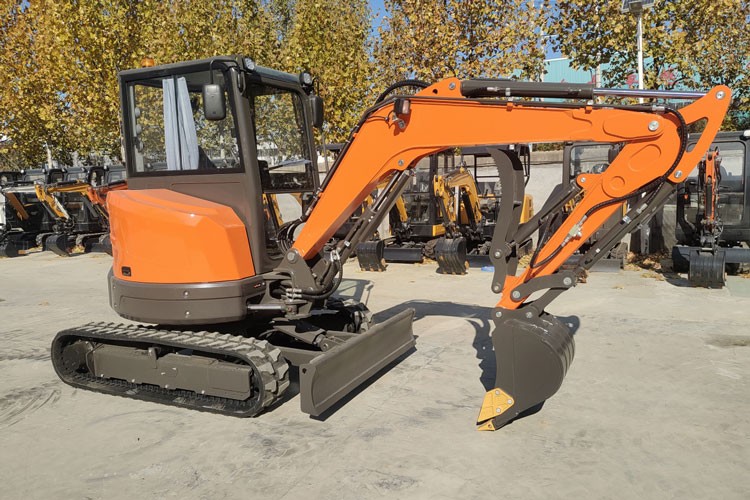

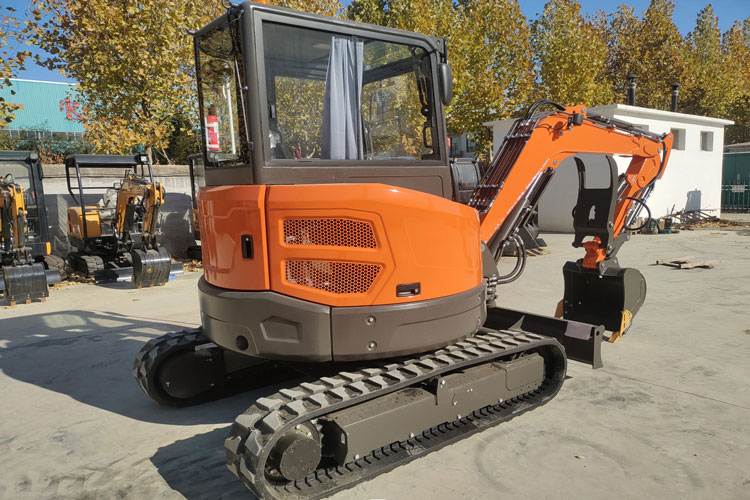

1.8T tracked excavator high traction force

-Engine type: Kubota

-Power: 18.4kw/2350rpm

-Bucket capacity: 0.06m ³

-Powerful, energy-saving and fuel-efficient

-Superior performance, high configuration, and low fuel consumption

-Supports OEM, meets environmental standards, and the appearance color can be customized

-Customization cycle: 25 days

-WhatsApp:+8615806625431

-Email: info@sdshinemachinery.com


  Contact Now E-mail Telephone WhatsApp
Product Details

Product Details

The rubber tracks of the 1.8T tracked excavator work very well on dry and smooth surfaces. This is because any rubber track has a high internal friction force.

Simply put, it is the ability to resist deformation under pressure. Rubber will not damage the surface. Moreover, the weight distribution of small excavators is uniform.

It is particularly useful on uneven surfaces as it provides greater stability.

In addition, if you use small excavator rubber tracks on sturdy surfaces such as asphalt or concrete, they will hardly be damaged. Therefore, you can use small excavator

tracks without fear during the final stage of construction. There is no risk of causing any damage to the new pedestrian walkway, road, or any other fragile surface.

Product parameter

Performance parameters
Bucket capacity (m³)0.06
Rotation speed (rmp)10-12
Maximum climbing angle (°)35
Maximum digging force of bucket (KN)14
Maximum digging force of bucket rod (KN)10
Engine modelKUBOTA
Power/speed (KW/rmp)18.4/2350

Tire model


-
System pressure (MPa)18

Scope of work
Maximum digging height (mm)3365
Maximum unloading height (mm)2385
Maximum digging depth (mm)2050
Maximum vertical digging depth (mm)1725
Maximum digging radius (mm)3860
Minimum turning radius (mm)1720
Maximum ground clearance of dozer blade (mm)230
Maximum depth of bulldozing board sinking (mm)275
Boom swing angle (left)°75
Boom swing angle (right)°45
Overall size
Overall dimensions length*width*height (mm)3865*1050*2270
Cab height (mm)2270
Wheelbase (mm)1230
Wheel (rail) gauge (mm)820
Minimum ground clearance (mm)210
Tail turning radius (mm)1125

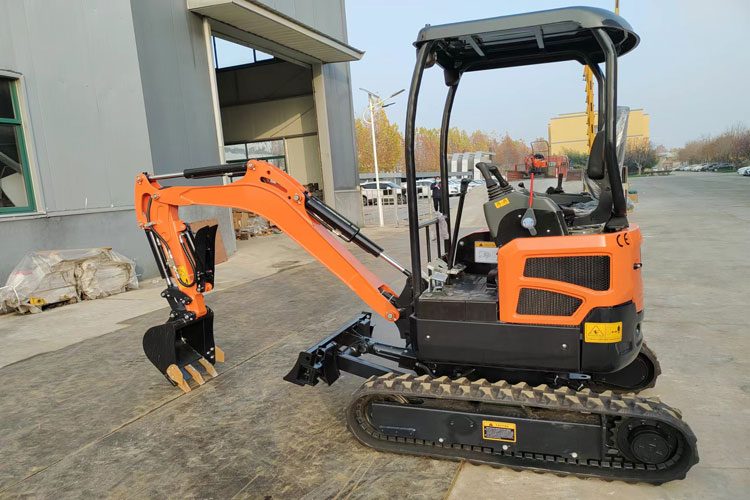

Product display

The 1.8T tracked excavator provides you with versatility and performance to complete almost any task. Kubota's zero tail swing makes it an advanced excavator. With its 360 degree rotation, excellent stability, and smooth control. All of this, combined with unparalleled power and efficiency, means you can achieve unlimited goals. This is true even in areas with heavy traffic and inside buildings.

Product display

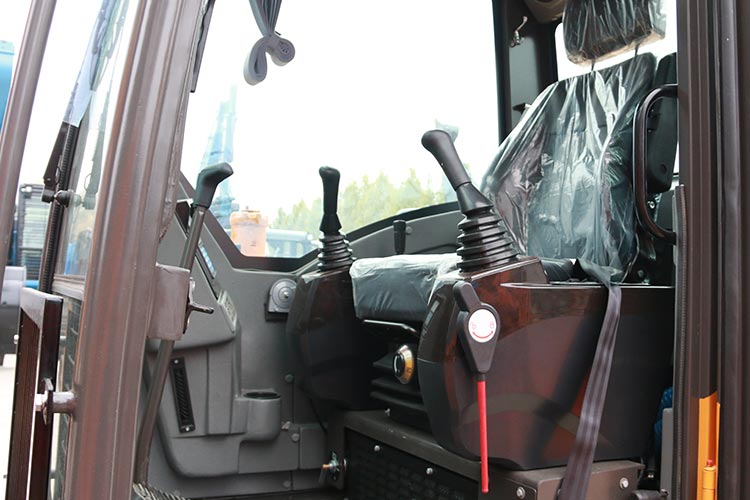

cab

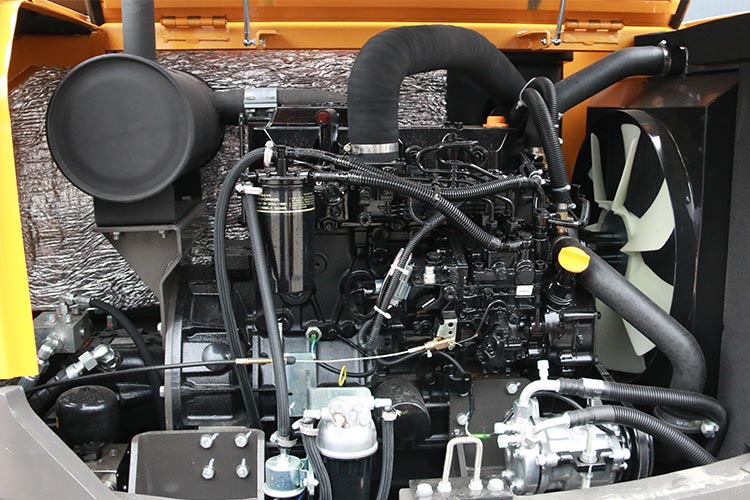

engine

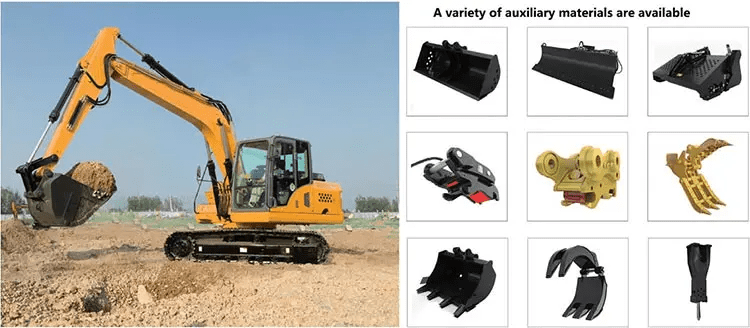

Structural display

The roof of the 1.8T tracked excavator provides all important safety functions. In addition to safer loading and unloading, due to its unique Kubota hydraulic system, it can provide straight driving even during simultaneous operations. These functions are all completed through simple daily maintenance

Structural display

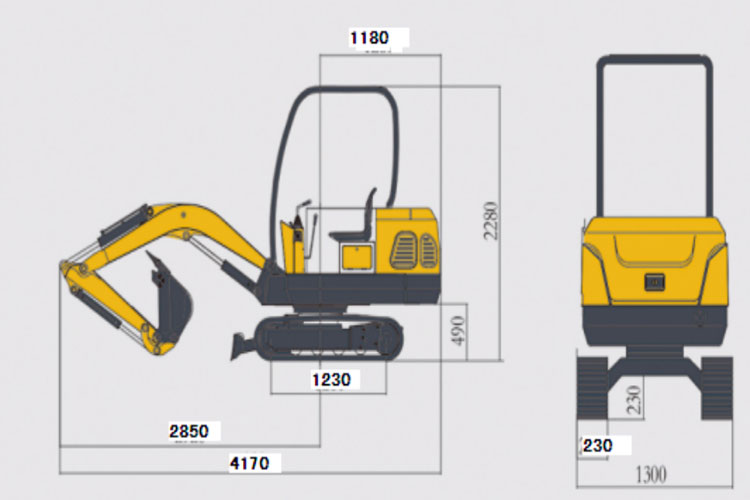

Mechanical drawing

Mechanical drawing

Applications

1.8T tracked excavator is widely used for indoor demolition, orchard planting, municipal engineering, greenhouses, land reclamation, nursery trenching and fertilization, pipelines, basement renovation, underground operations, etc.

Applications

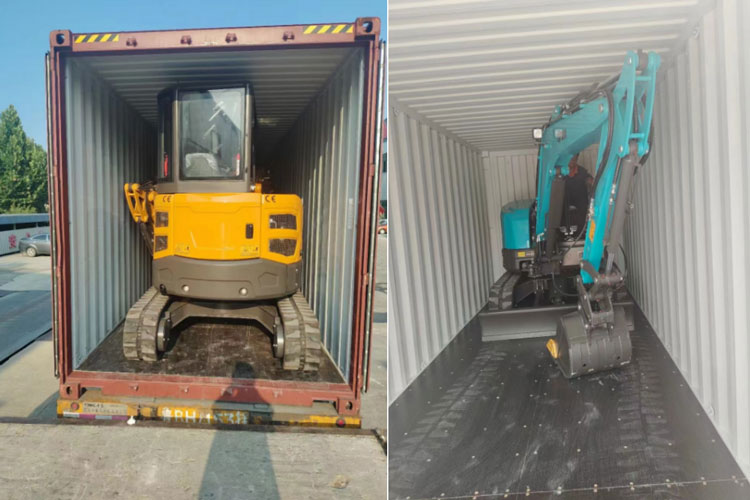

Logistics delivery

Our factory's trade method supports FOB/EXW/CIF/CFR

Logistics delivery
