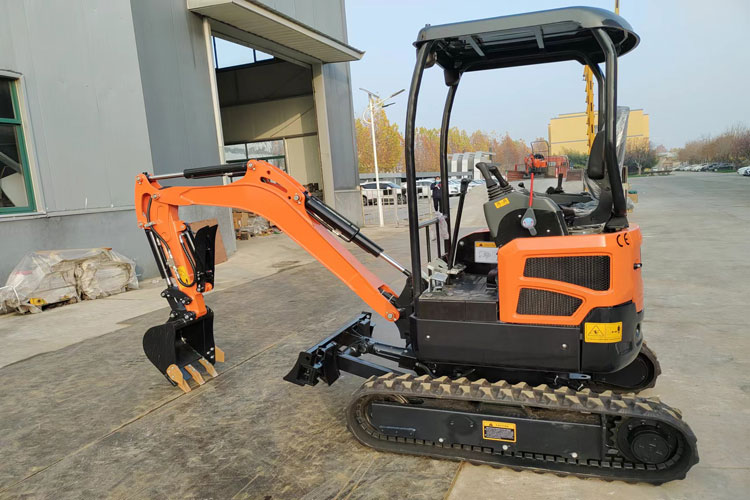

2.0T crawler excavator widely used

-Engine type: Kubota

-Powerful, energy-saving and fuel-efficient

-Supports OEM, meets environmental standards, and the appearance color can be customized

-Power: 22.1kW (19HP)/2300rpm

-Superior performance, high configuration, and low fuel consumption

-Bucket capacity: 0.1m ³

-Customization cycle: 25 days

-WhatsApp:+8615806625431

-Email: info@sdshinemachinery.com


  Contact Now E-mail Telephone WhatsApp
Product Details

ProductDetails

The 2T tracked excavator is specially equipped with excavators that rotate for a long time, which are flexible, compact, and versatile. Due to these characteristics, their range of use is quite extensive. In the construction of roads or sidewalks, in addition to crushing concrete, we can also benefit from their mobility in transporting materials and landscaping. Very suitable for working inside large buildings, its size also makes it easy to move. An excellent choice for landscaping and parks, it can be used in combination with paving and mobile pavers, as well as for earthworks and moving various materials.

Product parameter

Performance parameters
Bucket capacity (m³)0.07
Rotation speed (rmp)0-9
Maximum climbing angle (°)35
Maximum digging force of bucket (KN)18
Maximum digging force of bucket rod (KN)11
Engine modelKUBOTA
Power/speed (KW/rmp)

14.2kw(19HP)@2000rpm

Tire model-
System pressure (MPa)21.5

Scope of work
Maximum digging height (mm)3700
Maximum unloading height (mm)2440
Maximum digging depth (mm)2400
Maximum vertical digging depth (mm)2025
Maximum digging radius (mm)4040
Minimum turning radius (mm)1610
Maximum ground clearance of dozer blade (mm)240
Maximum depth of bulldozing board sinking (mm)270

Overall size
Overall dimensions length*width*height (mm)3555*1300*2290
Wheelbase (mm)1230
Wheel (rail) gauge (mm)760
Minimum ground clearance (mm)150

Tail turning radius (mm)

650
Product display

The 2T tracked excavator is equipped with a Kubota engine, providing strong power.

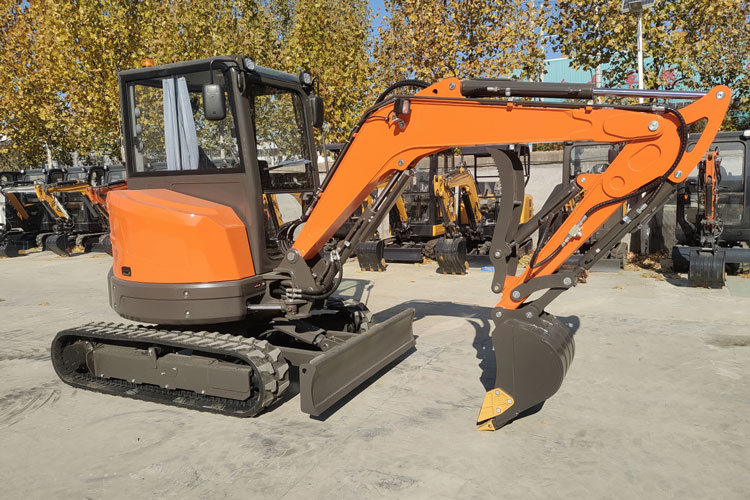

body display

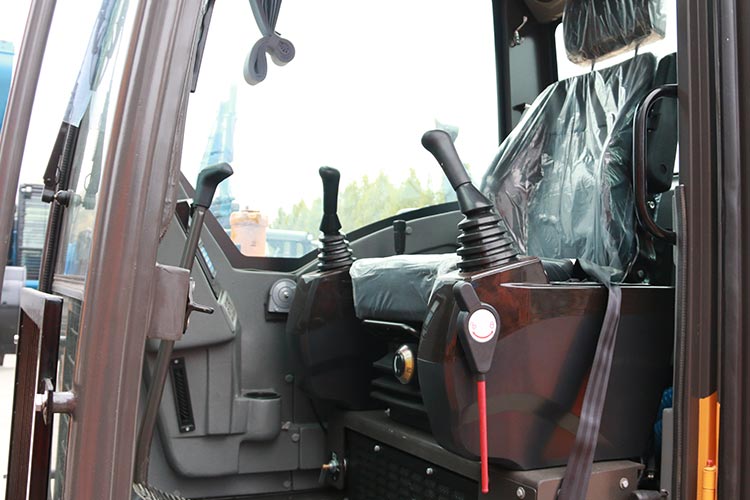

cab

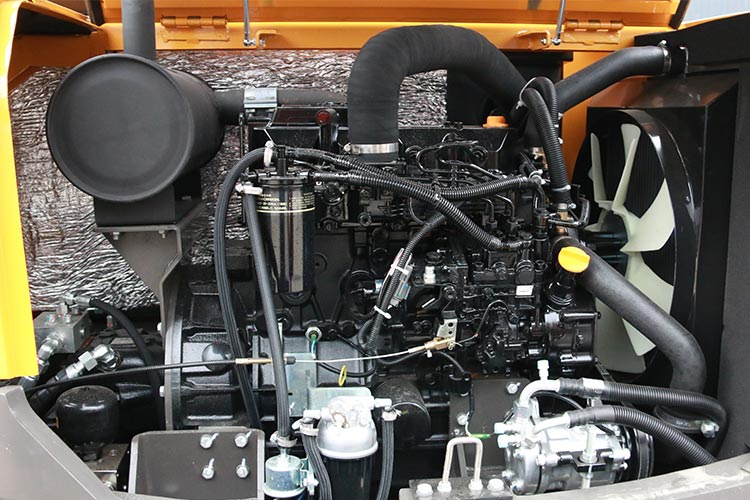

engine

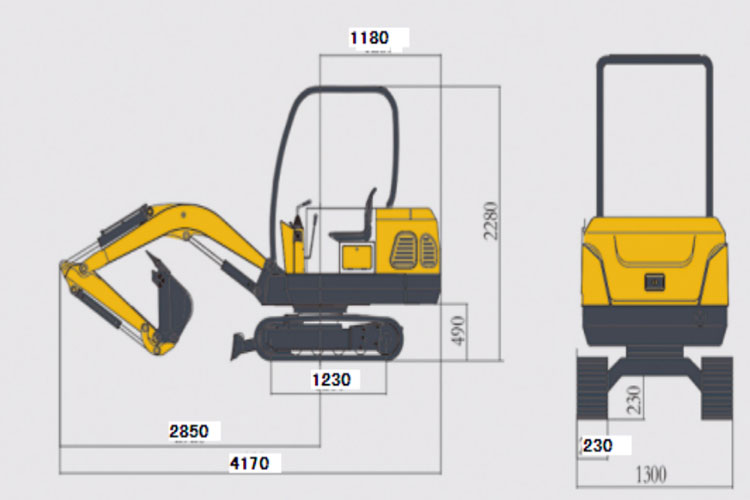

Mechanical drawing

Mechanical drawing

Applications

2T tracked excavator is widely used for indoor demolition, orchard planting, municipal engineering, greenhouses, land reclamation, nursery trenching and fertilization, pipelines, basement renovation, underground operations, etc.

Applications

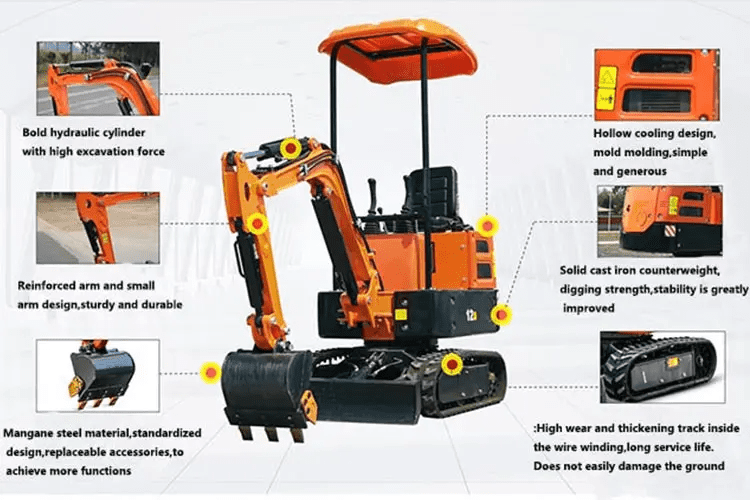

Structural display

The 2T tracked excavator adopts a new platform design with a new upper structure, which improves durability/robustness, while

 the high hydraulic flow rate of all four platforms enhances the working ability of the attachments.

Structural display

Logistics delivery

Our factory's trade method supports FOB/EXW/CIF/CFR

Logistics delivery
