2.2T tracked excavator advance improvement

-Power: 22.1kW (19HP)/2300rpm

-Engine type: Kubota

-Superior performance, high configuration, and low fuel consumption

-Powerful, energy-saving and fuel-efficient

-Supports OEM, meets environmental standards, and the appearance color can be customized

-Bucket capacity: 0.1m ³

-Customization cycle: 25 days

-WhatsApp:+8615806625431

-Email: info@sdshinemachinery.com


  Contact Now E-mail Telephone WhatsApp
Product Details

ProductDetails

2.2T tracked excavators can swing the tracks in place to improve the stability of the front of the machine, so they can lift more capacity at the front than wheeled machines. The combination of track and chassis system design, heavier weight, and larger footprint means that tracked excavators usually provide better traction on slopes, loose soil, and uneven terrain. Compared to wheeled models, they are also easier to walk under soft or damp foot conditions.

Product parameter

Performance parameters
Bucket capacity (m³)0.1
Rotation speed (rmp)0-12
Maximum climbing angle (°)30
Maximum digging force of bucket (KN)15.3
Maximum digging force of bucket rod (KN)10.5
Engine model

KUBOTA

Power/speed (KW/rmp)22.1/2300
Tire model-
System pressure (MPa)18

Scope of work
Maximum digging height (mm)3700
Maximum unloading height (mm)2290
Maximum digging depth (mm)2450
Maximum vertical digging depth (mm)2160
Maximum digging radius (mm)4370
Minimum turning radius (mm)2020
Maximum ground clearance of dozer blade (mm)240
Maximum depth of bulldozing board sinking (mm)310
Boom swing angle (left)°70
Boom swing angle (right)°50

Overall size
Overall dimensions length*width*height (mm)4170*1300*2280
Cab height (mm)2280
Wheelbase (mm)1230
Wheel (rail) gauge (mm)1050
Minimum ground clearance (mm)230
Tail turning radius (mm)1180

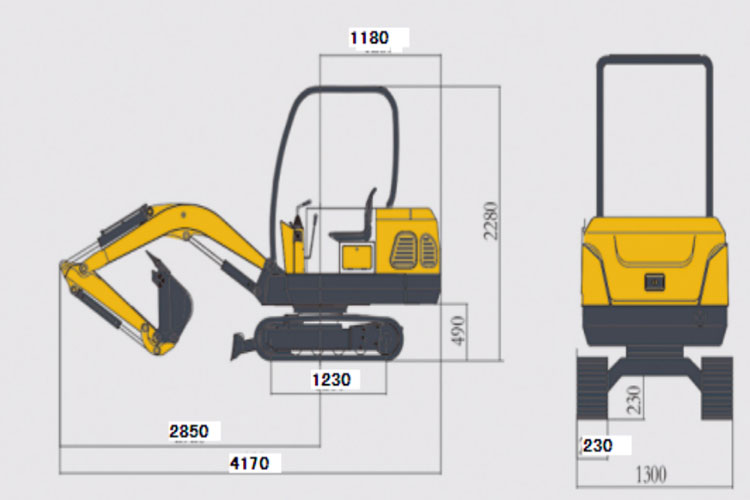

Mechanical drawing

Mechanical drawing

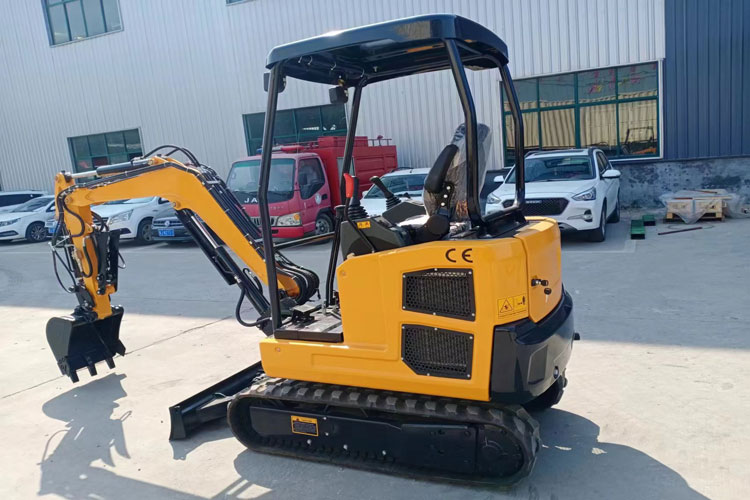

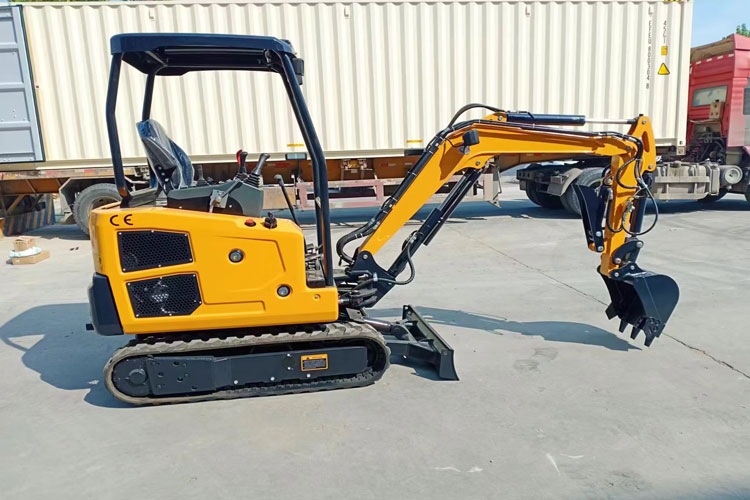

Product display

The 2.2T tracked excavator occupies a larger area and is lower off the ground. The lower center of gravity and larger chassis weight provide additional stability

and higher load capacity

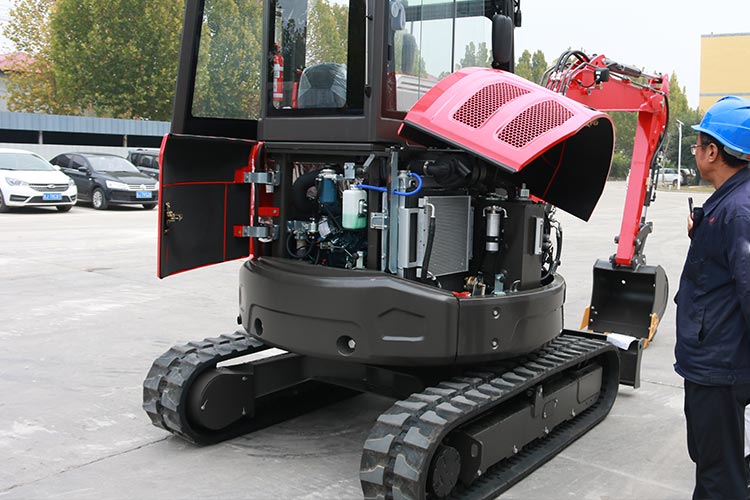

Body display

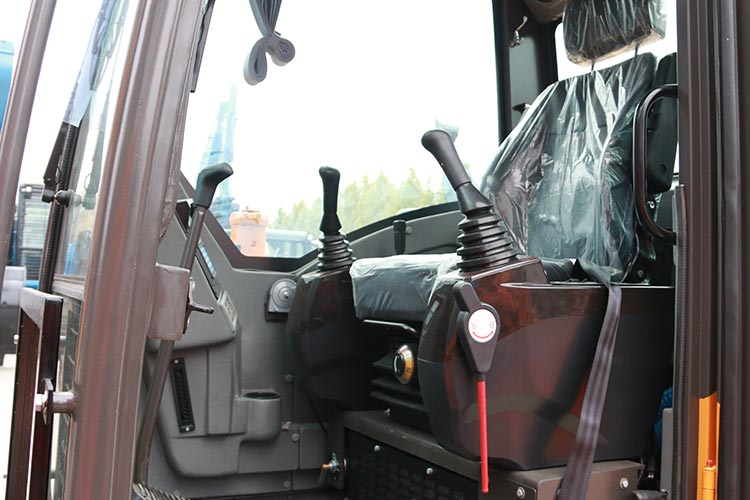

Cabin

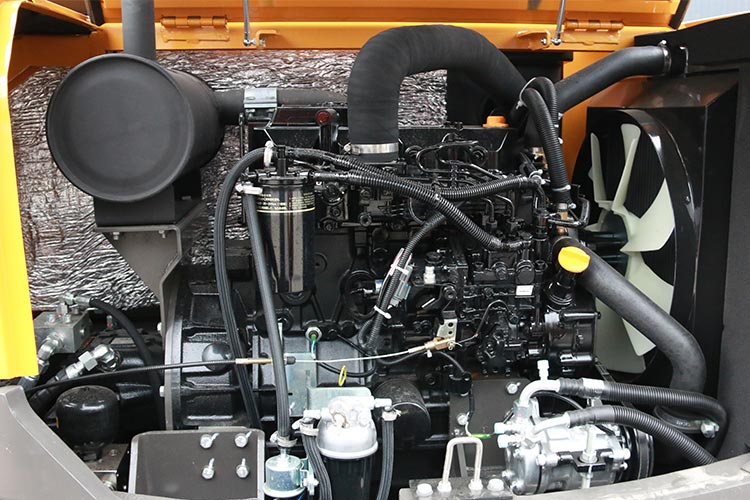

engine

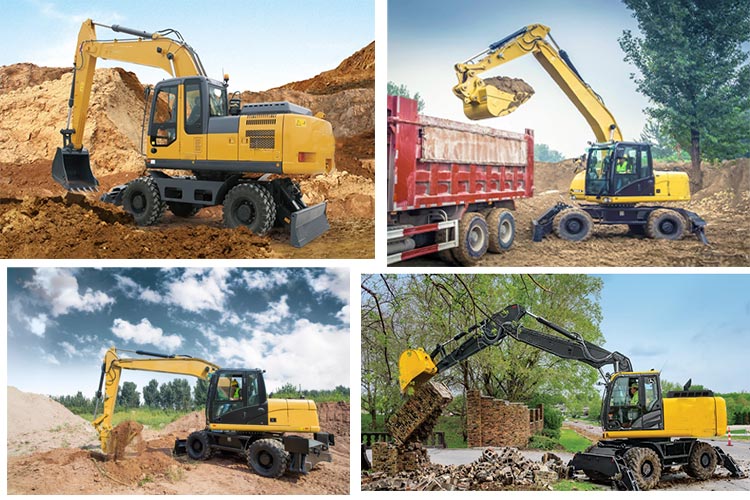

Applications

Applications

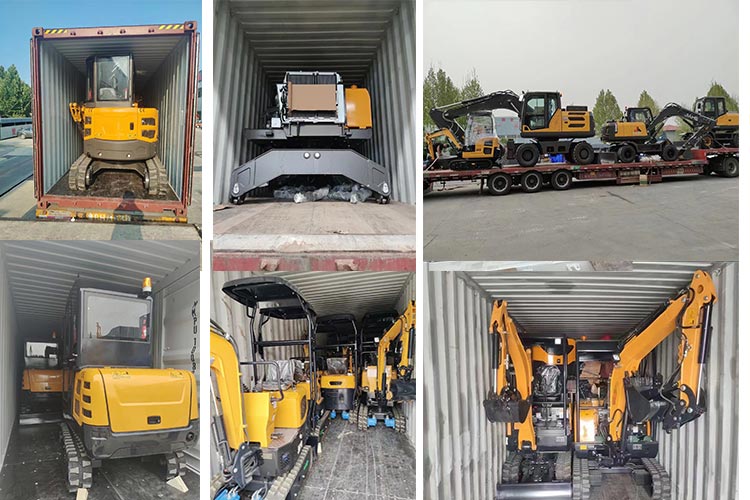

Loading and delivery

Loading and delivery

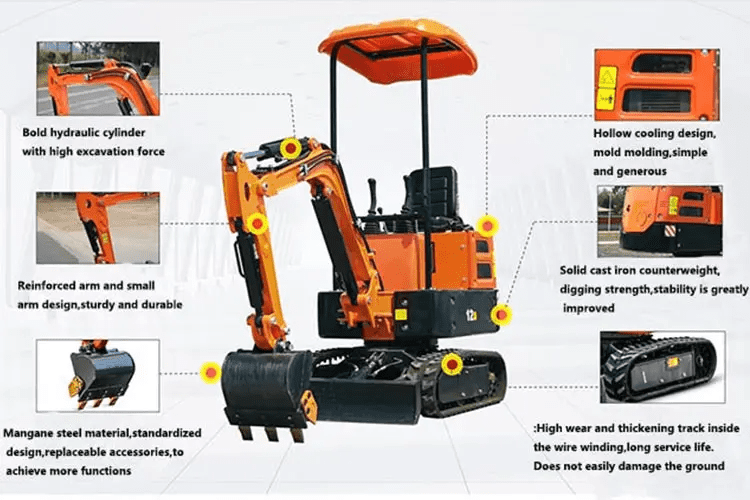

Structural display

Structural display
