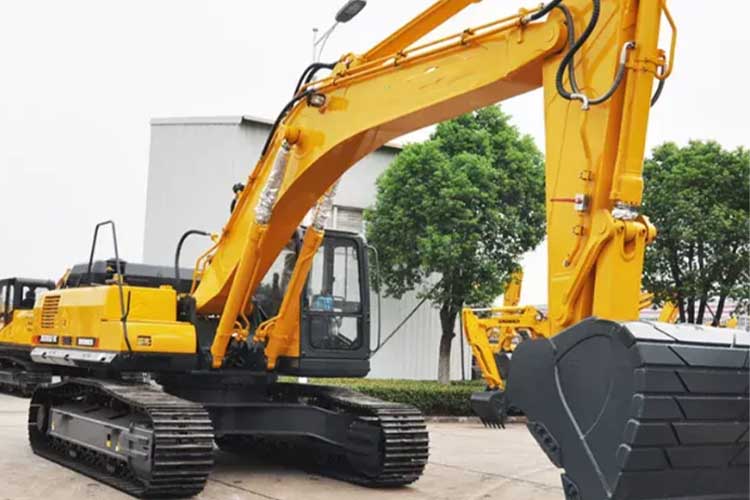

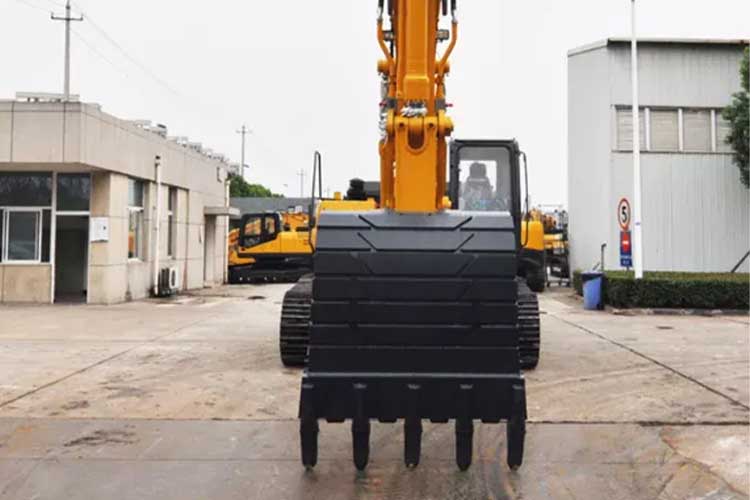

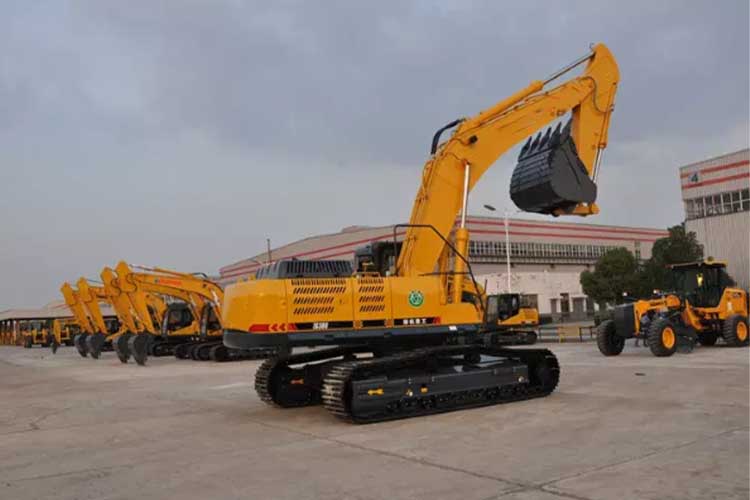

13.5T large crawler excavator

Engine: KUBOTAD

Source factory, can accept OEM

Power /Rotation speed: 73/2000（KW/rmp）

Contact:

whatsapp:+86 15806625431

E-mail: info@sdshinemachinery.com

Contact Now E-mail Telephone WhatsApp

Product Details

Key attributes

Industry-specific attributes

▲ The humanized design , ensure the machine can comfortable operation and convenient maintenance.

ENGINE
Tire model	-
Make	KUBOTA
Power /Rotation speed	73kw/2000rpm

PERFORMANCE PARAMETER
Standard Bucket capacity	0.6m³
System pressure	32Mpa
Maximum Grade ability	30°
Maximum Bucket digging force	91KN
Maximum Arm digging force	55KN

MACHINE SIZE
Overall dimension (LWH)	7635mm2500mm2750mm
Height of cabin	2750mm
Track length on ground(Axle base)	2950mm
Track gauge	2000mm
Minimum Ground clearance	400mm
Swing radius at tail	2340mm

WORKING RANGE
Maximum Digging height	8540mm
Maximum Dumping height	6125mm
Maximum Digging depth	5095mm
maximum digging radius	8000mm
Maximum Vertical digging depth	4650mm
Minimum swing radius	2445mm

Product descriptions from the supplier

Why Choose Us

product feature

Super configuration excellent performance Import configuration domestic price

• Domestic brand engine, strong power, to meet the requirements of efficient operation.

• Precise matching design coupled with advanced energy saving control makes the machine less fuel consumption.

• The use of new cooling fans and large silencers to make the machine less noisy;

• Adopt advanced turbocharging technology to enhance the plateau adaptability of the machine;

• Funnel mouth fan cover, greatly improve the engine air intake and system heat dissipation capacity, to ensure continuous and efficient operation of the machine.
