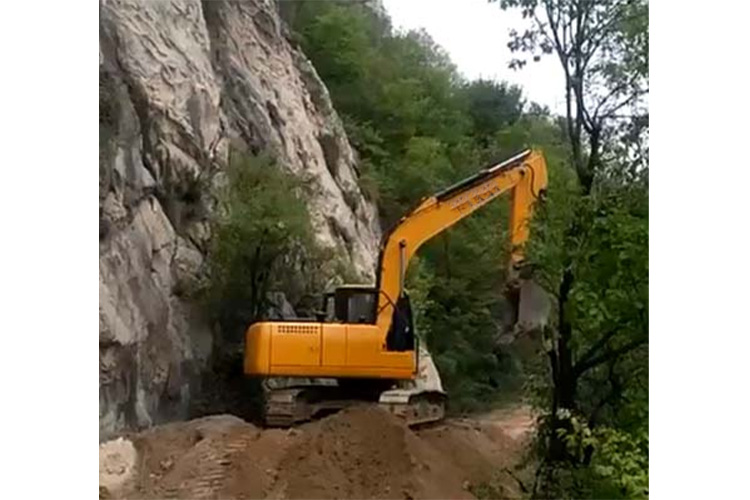

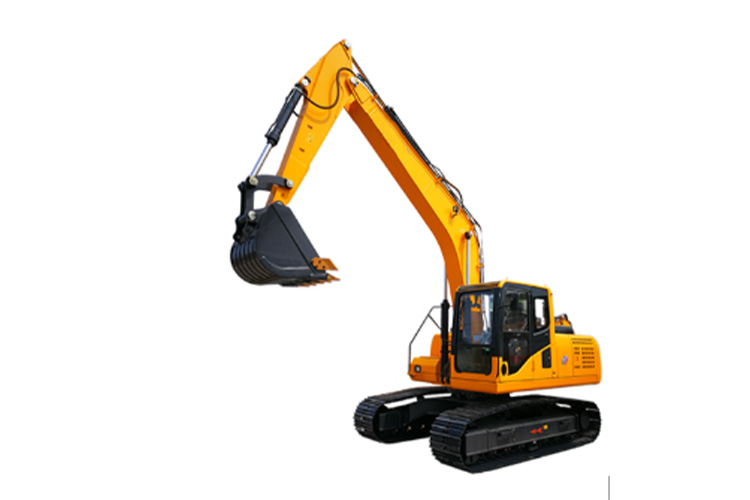

low price 18T crawler excavator

Engine: KUBOTAD

Source factory, can accept OEM

Power /Rotation speed: 93/2200(KW/rmp)







Contact:

whatsapp:+86 15806625431

E-mail: info@sdshinemachinery.com


Contact Now E-mail Telephone WhatsApp
Product Details

major parameter


• Easy to control the handle.

• Luxury interior cab, LCD panel, luxury seats

• Install air conditioning and warm air to ensure rapid indoor heating and cooling

Intelligent operation and display

The electric throttle control system makes full use of the engine power, so that the machine always

maintains the best efficiency and economy under different operating conditions.


                                                                                             ENGINE

rotating speed


0-12rmp

Make

KUBOTA


Power /Rotation speed

93kw/2200rpm





                                                                         PERFORMANCE PARAMETER

Standard Bucket capacity

0.8m³

System pressure

32Mpa

Maximum digging force of bucket rod

68°

Maximum Angle of climb

30


                                                                                  MACHINE SIZE

Overall dimension (L*W*H)

8540mm*2720mm*2920mm

Height of cabin

2920mm

Track length on ground(Axle base)

3200mm

Track gauge

2120mm

Minimum Ground clearance

480mm

Swing radius at tail

2430mm


                                                                                   WORKING RANGE

Maximum Digging height

9430mm

Maximum Dumping height

6960mm

Maximum Digging depth

5975mm

maximum digging radius

8985mm

Maximum Vertical digging depth

5630mm

Minimum swing radius

2725mm

show details


• High-end configuration: main pump, main valve, rotary motor, walking motor, cylinder, pilot control valve and other components are all adopted international well-known brands to ensure the quality of products.

• Integrates the latest research results to reduce energy consumption, improve design, and respond faster.

• Robust and precise rotation control: improved vibration absorption to ensure more accurate and smooth rotation stop action; By increasing the torque reserve, the machine is provided with more powerful turning capacity;

• Cylinder with buffer function: boom cylinder and bucket rod cylinder, bucket cylinder designed with buffer, can reduce the vibration and shock of the machine, reduce noise and extend the life of the cylinder;

• Dual pump confluence technology: increase the main valve supply boom, bucket rod, bucket cylinder flow, improve the speed of operation.

Rugged and reliable

• Improve the design of the cross section shape of the track frame, reduce soil accumulation, make the sprocket less prone to wear, and improve the durability of the machine.
