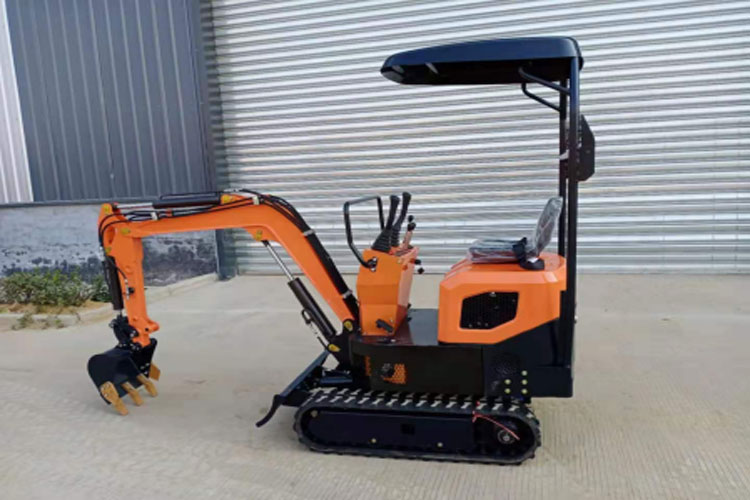

1.0T crawler excavator with large rotation radius

-Superior performance, high configuration, and low fuel consumption

-Power: 7kw/3000rpm

-Supports OEM, meets environmental standards, and the appearance color can be customized

-Powerful, energy-saving, and fuel-efficient

-Engine type: Kubota

-Bucket capacity: 0.023m ³

-Customization cycle: 25 days

-WhatsApp:+8615806625431

Contact Now E-mail Telephone WhatsApp

Product Details

Product Details

1.0T crawler excavator dual pump combined flow technology: increases the flow rate of the main valve to the boom, stick, and bucket oil cylinders, improves the operating speed, and provides strong and precise rotation control. Improves vibration absorption characteristics to ensure more accurate and stable rotation stop action; By increasing torque reserve, provide the machine with stronger turning ability; High end configuration: The main pump, main valve, rotary motor, walking motor, oil cylinder, pilot operated valve, and other components are all from internationally renowned brands, ensuring the quality of the product.

Product parameter

Performance parameters
Bucket capacity (m³)	0.023
Rotation speed (rmp)	0-13
Maximum climbing angle (°)	30
Maximum digging force of bucket (KN)	72
Maximum digging force of bucket rod (KN)	4.6
Engine model	KUBOTA
Power/speed (KW/rmp)	7/3000
Tire model	-
System pressure (MPa)	16

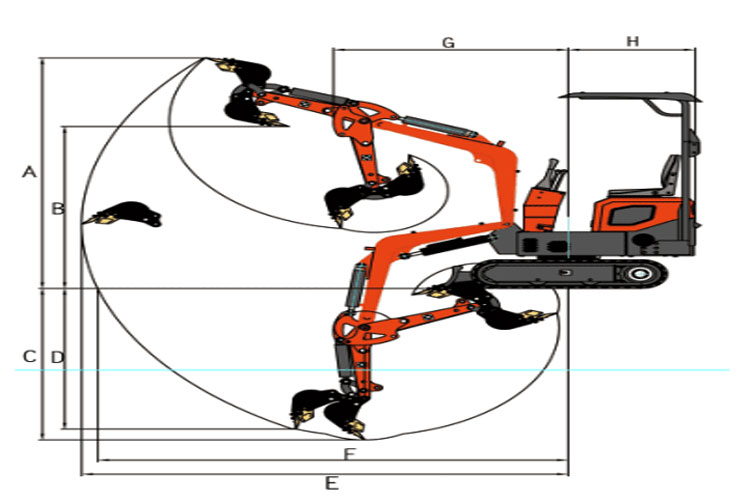

Scope of work
Maximum digging height (mm)	2600
Maximum unloading height (mm)	2385
Maximum digging depth (mm)	1715
Maximum vertical digging depth (mm)	1590
Maximum digging radius (mm)	3065
Minimum turning radius (mm)	1480

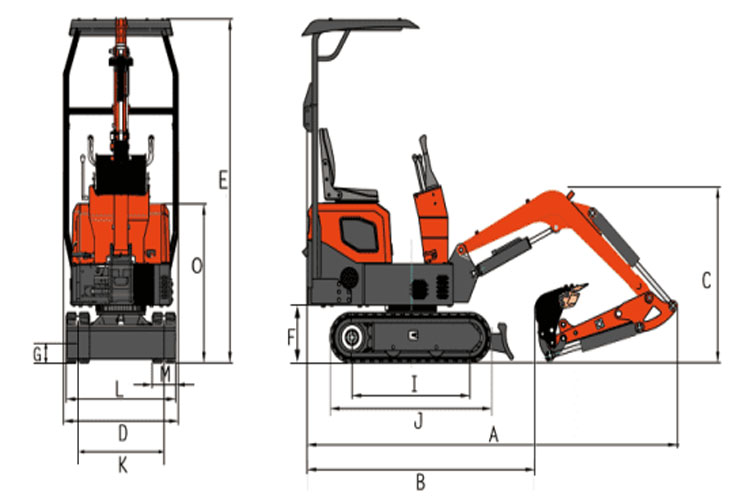

Overall size
Overall dimensions lengthwidthheight (mm)	28408802220
Cab height (mm)	2220
Wheelbase (mm)	900
Wheel (rail) gauge (mm)	660
Minimum ground clearance (mm)	132
Tail turning radius (mm)	800

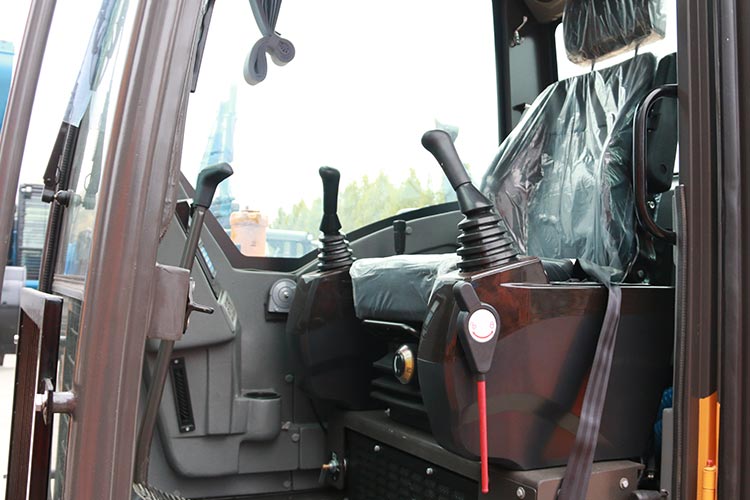

Product display

The 1.0T crawler excavator funnel shaped fan cover greatly improves the engine's air intake and system heat dissipation capacity, ensuring continuous and efficient operation of the machine. Advanced turbocharging technology is adopted to enhance the machine's adaptability to high altitude.

Product display

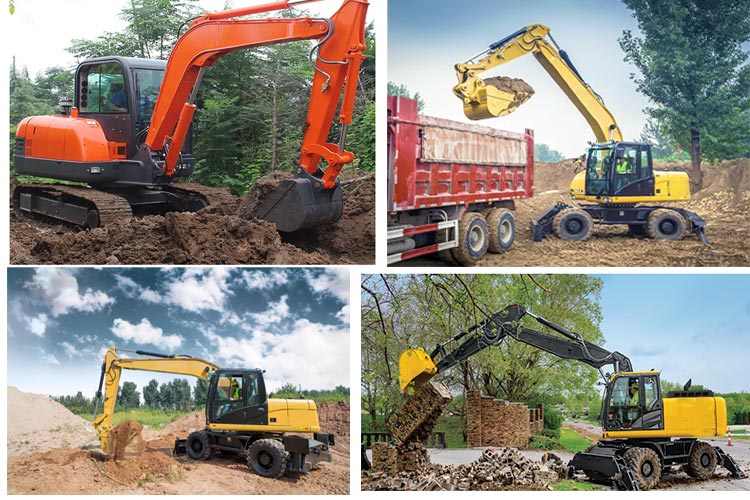

Applications

The product is widely used for indoor demolition, orchard planting, municipal engineering, greenhouses, land reclamation, nursery trenching and fertilization, pipelines, basement renovation, underground operations, etc.

Applications
