1T crawler excavator

-Supports OEM, meets environmental standards, and the appearance color can be customized

-Superior performance, high configuration, and low fuel consumption

-Powerful, energy-saving, and fuel-efficient

-Engine type: Kubota

-Power: 7kw/3000rpm

-Bucket capacity: 0.023m ³

-Customization cycle: 25 days

-WhatsApp:+8615806625431

-Email:info@sdshinemachinery.com


  Contact Now E-mail Telephone WhatsApp
Product Details

Product Details

The precise matching design of the 1T crawler excavator, coupled with advanced energy-saving control, reduces the machine's fuel consumption. Integrate the latest research results, reduce energy consumption, improve design, and respond faster. Dual pump combined flow technology: Increase the flow rate of the main valve to the boom, stick, and bucket cylinders, and improve the operation speed.

Product parameter

Performance parameters
Bucket capacity (m³) 0.023
Rotation speed (rmp)0-13
Maximum climbing angle (°)30
Maximum digging force of bucket (KN)72
Maximum digging force of bucket rod (KN) 4.6
Engine model        KUBOTA
Power/speed (KW/rmp) 7/3000
Tire model                -
System pressure (MPa)               16

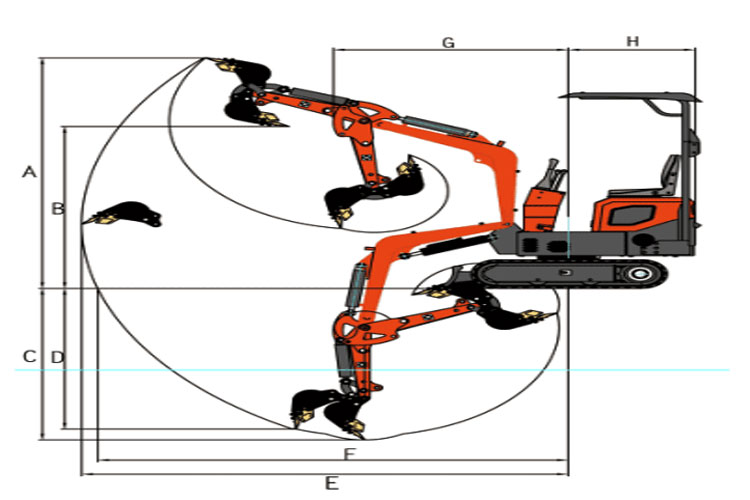

Scope of work


Maximum digging height (mm)2600
Maximum unloading height (mm)2385
Maximum digging depth (mm)1715
Maximum vertical digging depth (mm)1590
Maximum digging radius (mm)3065
Minimum turning radius (mm)1480

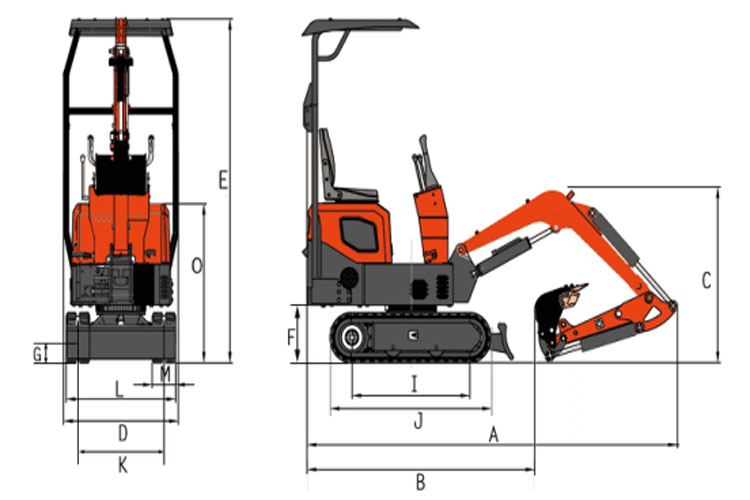

Overall size
Overall dimensions length*width*height (mm)2840*880*2220
Cab height (mm)            2220
Wheelbase (mm)             900
Wheel (rail) gauge (mm)             660
Minimum ground clearance (mm)132
Tail turning radius (mm)             800

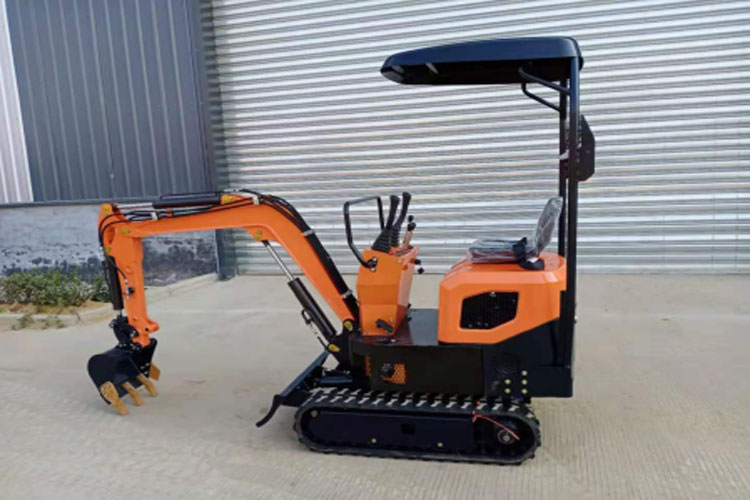

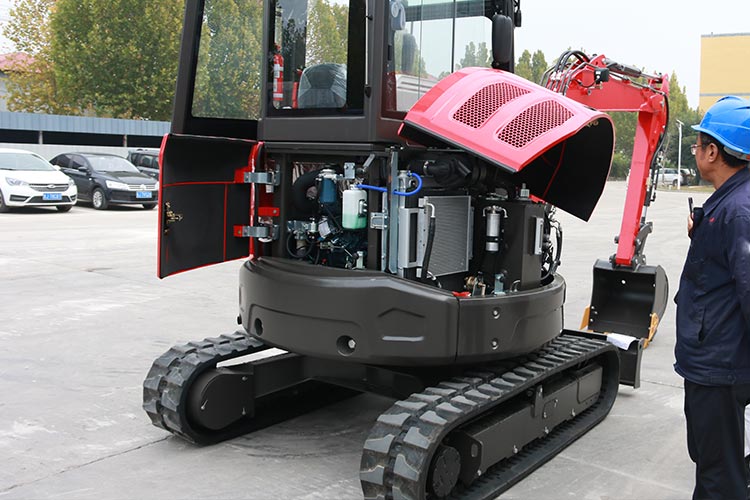

Product display

Using thickened steel plates and adding side reinforcement plates to improve wear resistance; The bucket cutting plates are made of special wear-resistant steel plates, which are suitable for heavy-duty operations. They are equipped with wear-resistant bucket teeth and side teeth to improve the performance of the machine.

Product display

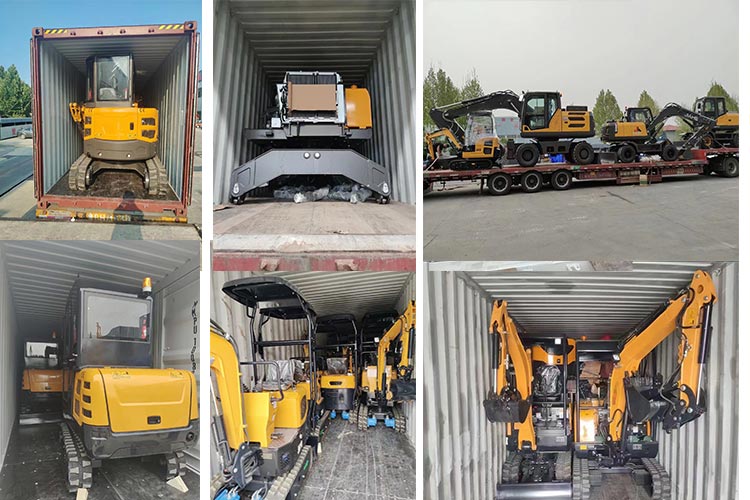

Logistics delivery

Logistics delivery

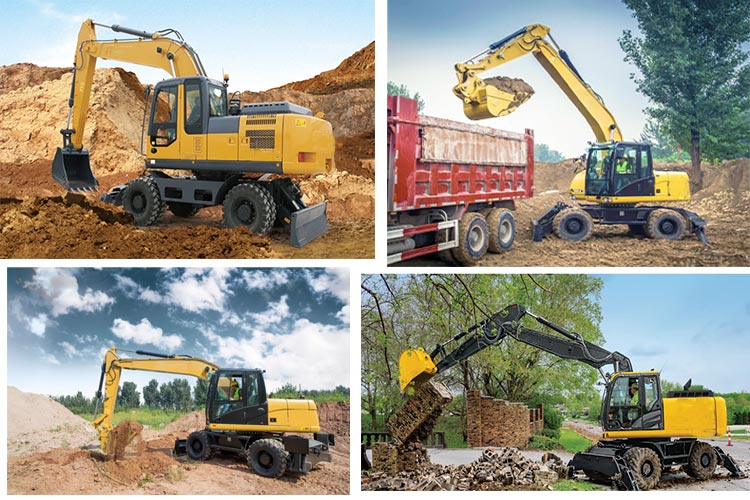

Applications

The product is widely used for indoor demolition, orchard planting, municipal engineering, greenhouses, land reclamation, nursery trenching and fertilization, pipelines, basement renovation, underground operations, etc.

Applications
