1t Mini excavator with Mechanical drawing

-Supports OEM, meets environmental standards, and the appearance color can be customized

-Superior performance, high configuration, and low fuel consumption

-Powerful, energy-saving, and fuel-efficient

-Engine type: Kubota

-Power: 7kw/3000rpm

-Bucket capacity: 0.023m ³

-Customization cycle: 25 days

-WhatsApp:+8615806625431

Contact Now E-mail Telephone WhatsApp

Product Details

Product Details

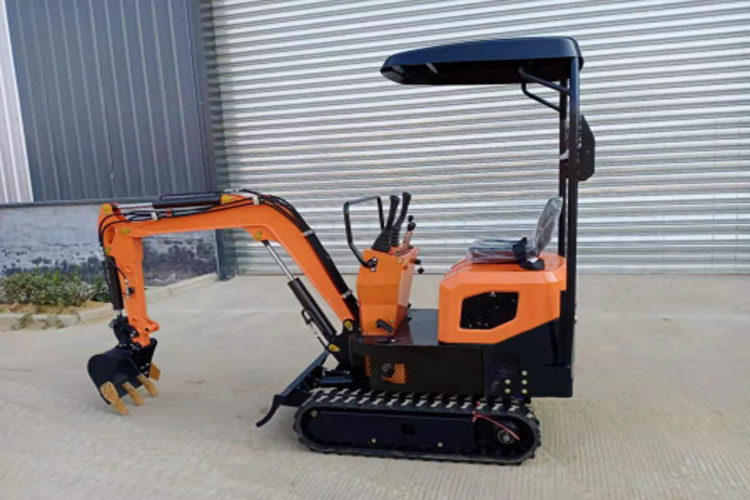

The 1T tracked excavator adopts advanced turbocharging technology to enhance the machine's adaptability to high altitude. Integrate the latest research results, reduce energy consumption, improve design, and respond faster. The important hinge parts of the bucket handle adopt forged structures, which can alleviate stress and improve durability by changing shape and plate thickness.

Product parameter

Performance parameters
Bucket capacity (m³)	0.023
Rotation speed (rmp)	0-13
Maximum climbing angle (°)	30
Maximum digging force of bucket (KN)	72
Maximum digging force of bucket rod (KN)	4.6
Engine model	KUBOTA
Power/speed (KW/rmp)	7/3000
Tire model	-
System pressure (MPa)	16

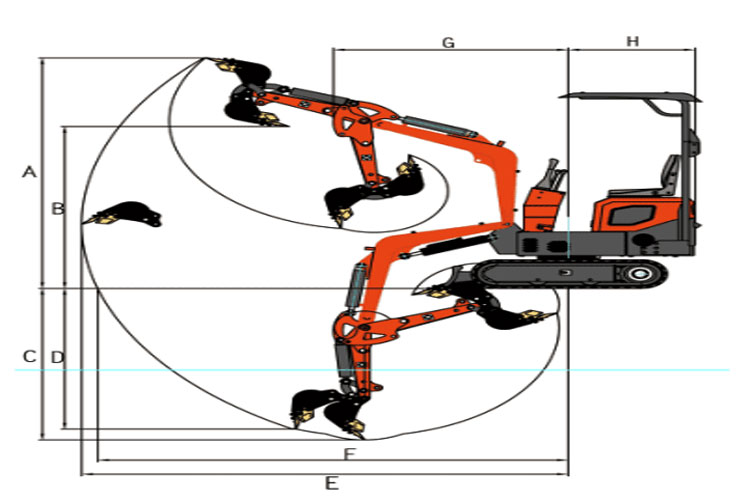

Scope of work
Maximum digging height (mm)	2600
Maximum unloading height (mm)	2385
Maximum digging depth (mm)	1715
Maximum vertical digging depth (mm)	1590
Maximum digging radius (mm)	3065
Minimum turning radius (mm)	1480

Overall size
Overall dimensions lengthwidthheight (mm)	28408802220
Cab height (mm)	2220
Wheelbase (mm)	900
Wheel (rail) gauge (mm)	660
Minimum ground clearance (mm)	132
Tail turning radius (mm)	800

Product display

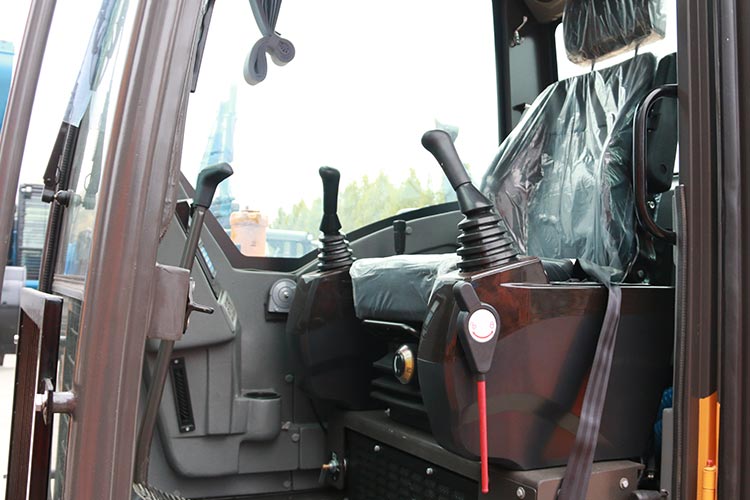

Increase the sunroof glass to improve upward visibility and increase ventilation. The doors and windows are made of tempered glass, which is a sunshade to prevent direct sunlight

pilothouse

Applications

The product is widely used for indoor demolition, orchard planting, municipal engineering, greenhouses, land reclamation, nursery trenching and fertilization, pipelines, basement renovation, underground operations, etc.
