14.5 Ton Wheel excavator

1、Full hydraulic drive (automatic transmission,more convenient)

2、Load sensitive system(smooth operation,more power)

3、Full view of the cab (high configuration,good vision)

4、Multi-function operating system(handle control,easy operation)

5、High driving force,full-time four-wheel drive(faster,more stable)

Email :Sunnyshine.com

WhatsApp+8615806625431

  Contact Now E-mail Telephone WhatsApp
Product Details

The 14.5 ton full hydraulic wheel excavator adopts a well-known brand generator with high power and low fuel consumption to ensure the strong power and power reserve of the whole machine. The precise matching of the efficient hydraulic system and the bridge box ensures the arbitrary switching of the working state and the walking state. The hydraulic system of the whole machine matches the imported hydraulic parts, which has the characteristics of high reliability, quality assurance, safety and environmental protection, comfort and convenience. At the same time, it can provide a variety of special configurations to choose from, which can adapt to the needs of different countries and customers

14.5 Ton wheel excavator


product parameter

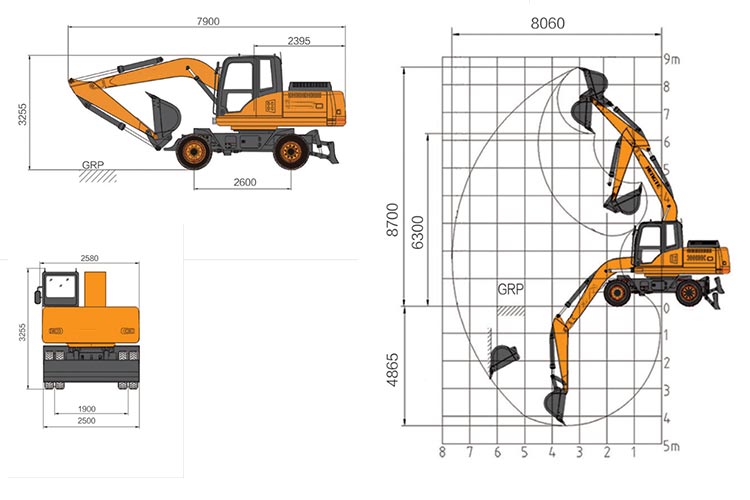

                                                        Technical Specification
ShippingLength7900mm
ShippingHeight3255mm
OverallWidth2580mm
Tail turning radius2395mm
Turntable width2500mm
WheelTread1900mm
Wheelbase2600mm
Boom length4600mm
Stick length2200mm

                                                 Working Range and Digging Force
Max.DiggingRadius8060mm
Max.DiggingHeight8700mm
Max.DiggingDepth4865mm
Max.Unloading height6300mm
HydraulicSystem Pressure85kn
ArmForces53kn
BucketVolume0.60m3
Gradebility>60%
SwingSpeed13-14r/min
TravelSpeed30km/h


14.5 Ton wheel excavator

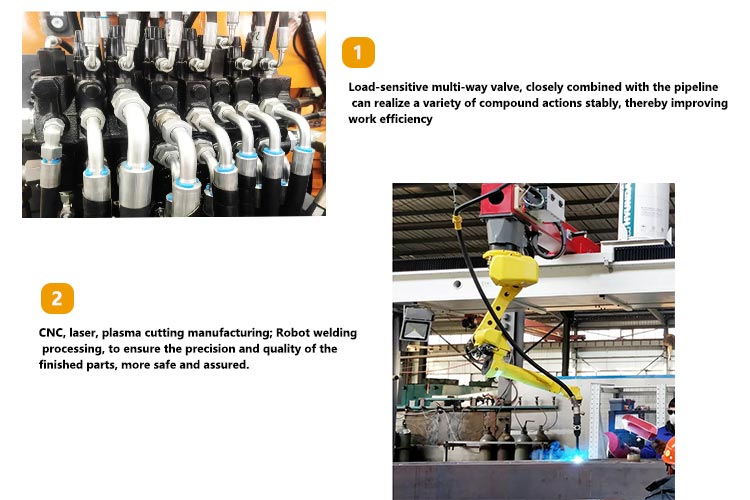

Product details

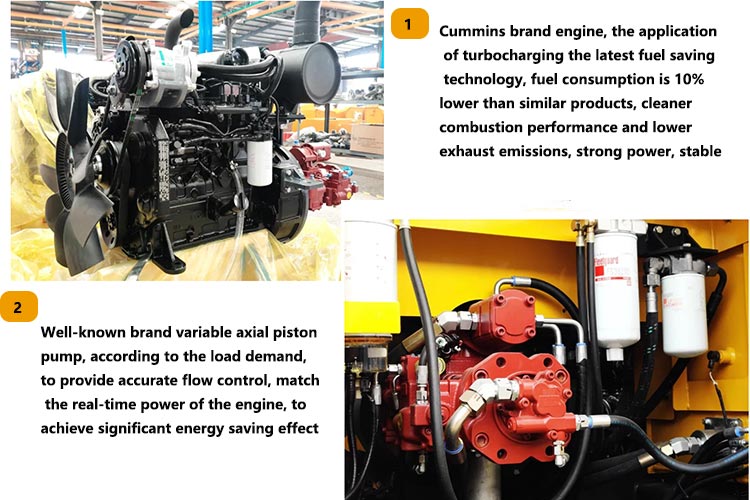

The 14.5 Ton new generation of fully hydraulic tire excavator uses a well-known brand engine with high power and low fuel consumption to ensure the strong power and power reserve of the whole machine

14.5Ton Wheel excavator

14.5 Ton Wheel excavator

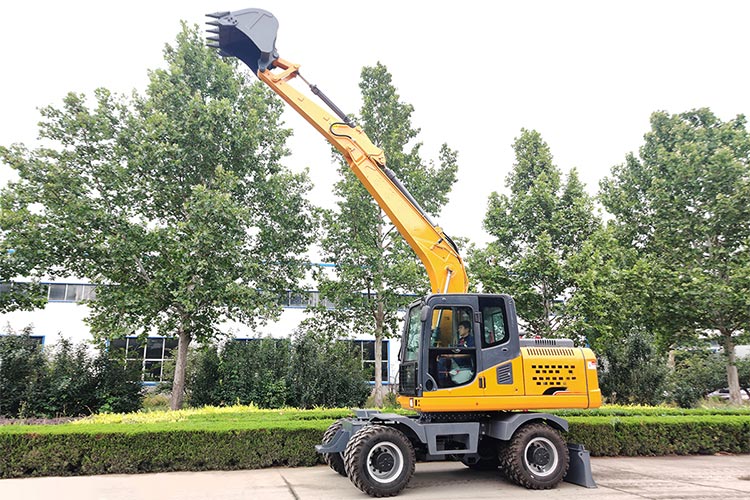

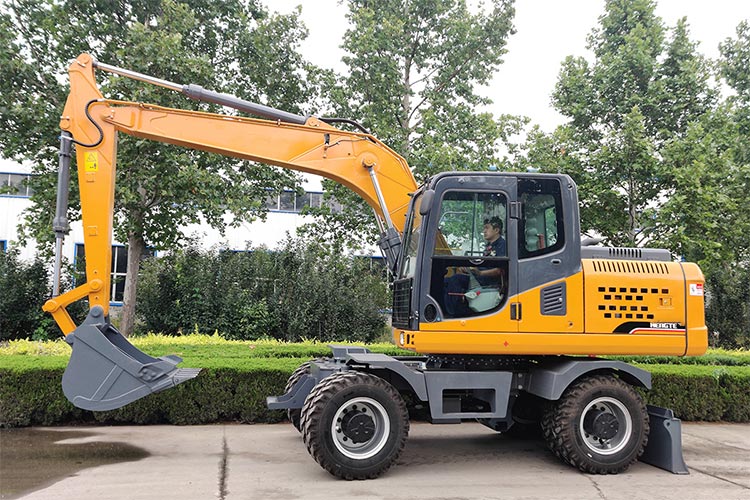

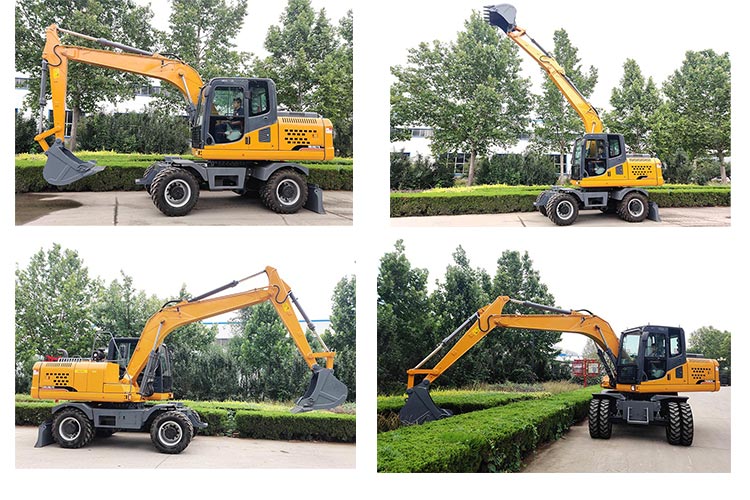

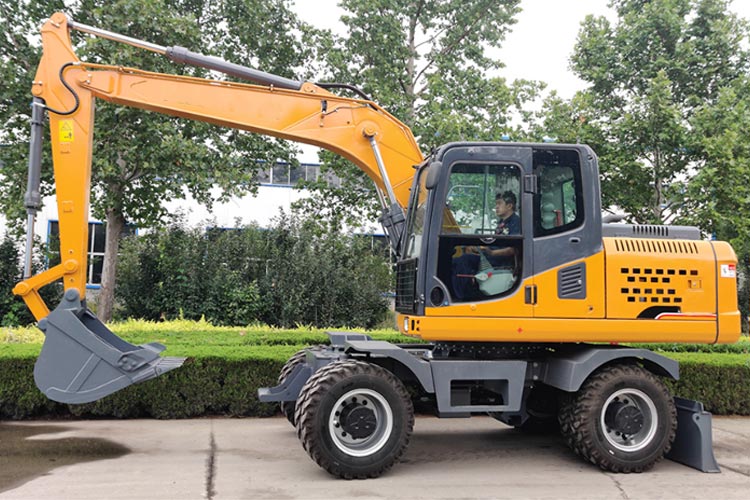

Multi-angle product display

14.5 Ton wheel excavator

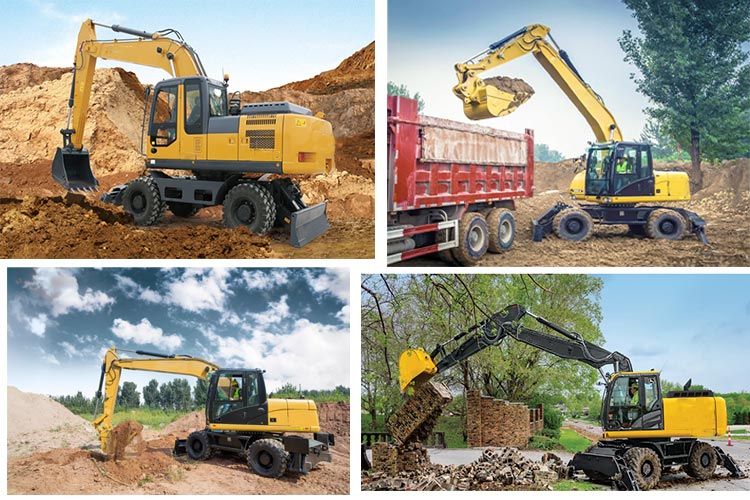

Application scenario

14.5 Ton Wheel excavator applicable to indoor demolition,toilet upgrading,engineering forcible entry,excavator barren hills,small earthwork,municipal projects,break concrete,dredging river and pther working environment

14.5 Ton wheel excavator

feedback

14.5 Ton wheel excavator

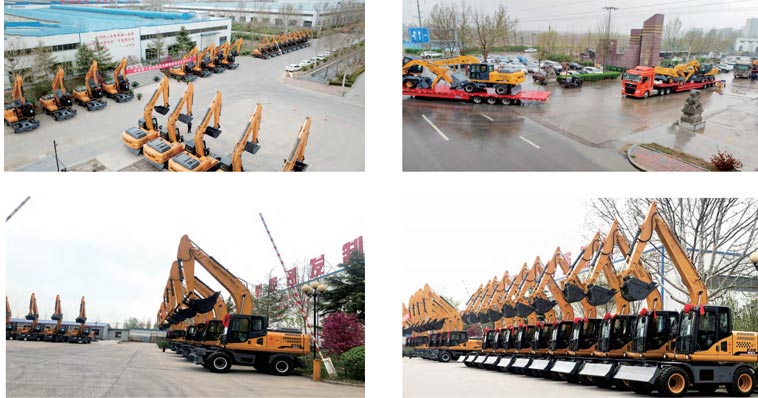

Factory

14.5 Ton Wheel excavator
