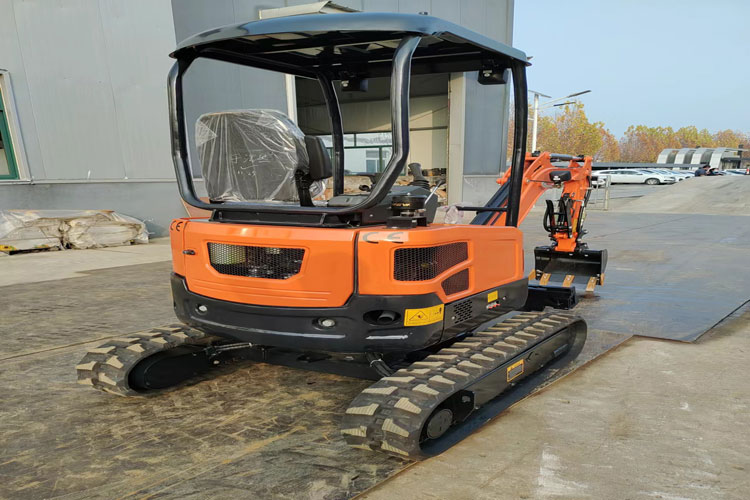

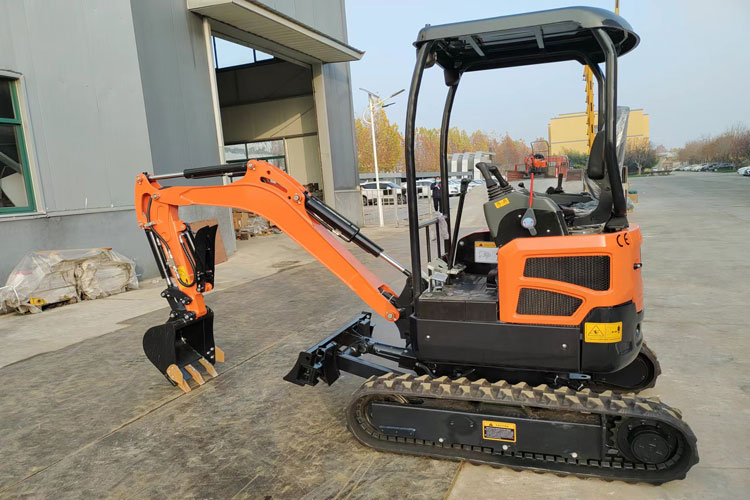

1.5T crawler excavator with hydraulic system

-Supports OEM, meets environmental standards, and the appearance color can be customized

-Powerful, energy-saving and fuel-efficient

-Superior performance, high configuration, and low fuel consumption

-Engine type: Kubota

-Power: 10.2kw/2500rpm

-Bucket capacity: 0.025m ³

-Customization cycle: 25 days

-WhatsApp:+8615806625431

-Email: info@sdshinemachinery.com


  Contact Now E-mail Telephone WhatsApp
Product Details

Product Details

The 1.5T crawler excavator is equipped with a roof, Japanese Yanmar or Kubota engines, and standard extendable tracks (variable width tracks). The boom is offset through a joystick, which can be comfortably controlled to achieve fatigue resistance and precise control. The rotary motor and three hydraulic pumps are equipped with auxiliary outputs and can be used in conjunction with various accessories. The valves adopt an automatic system. The hydraulic pump is a piston pump that perfectly matches the output of the valve. The bulldozer also has a variable width option so that it can be changed to match the track width setting.

Product parameter

Performance parameters
Bucket capacity (m³)          0.025
Rotation speed (rmp)              14
Maximum climbing angle (°)30
Maximum digging force of bucket (KN) 9
Maximum digging force of bucket rod (KN)             5.5
Engine model

 KUBOTA

Power/speed (KW/rmp)    10.2/2500
Tire model-
System pressure (MPa)              20

Scope of work
Maximum digging height (mm)2955
Maximum unloading height (mm)2077
Maximum digging depth (mm)2017
Maximum vertical digging depth (mm)1610
Maximum digging radius (mm)3529
Minimum turning radius (mm)1720
Maximum ground clearance of dozer blade (mm)236
Maximum depth of bulldozing board sinking (mm)229
Boom swing angle (left)°50
Boom swing angle (right)°52

Overall size
Overall dimensions length*width*height (mm)3865*1050*2270
Cab height (mm)2270
Wheelbase (mm)1230
Wheel (rail) gauge (mm)820
Minimum ground clearance (mm)210
Tail turning radius (mm)1125
Product display

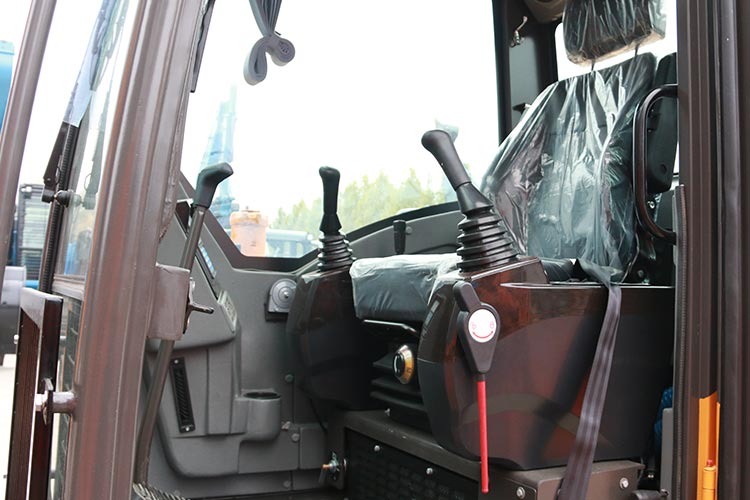

The comfortable safety seat of the 1.5T tracked excavator based on human bionics has a triple comfort structure, adjustable front and rear anti fatigue settings, and also includes a safety belt and comfort pilot control device.

pilothouse

The 1.5T tracked excavator is based on excellent engine matching technology and high-quality Japanese European hydraulic system, which enables the machine to have high power output, improve working speed, and reduce fuel consumption.

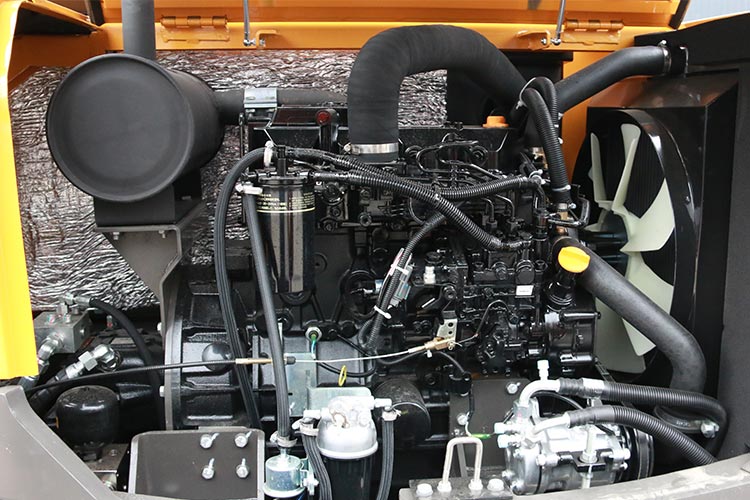

Kubota engine

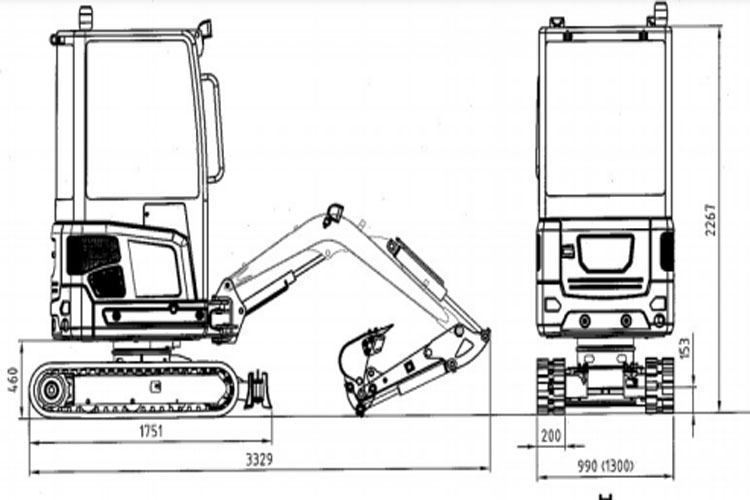

Mechanical drawing

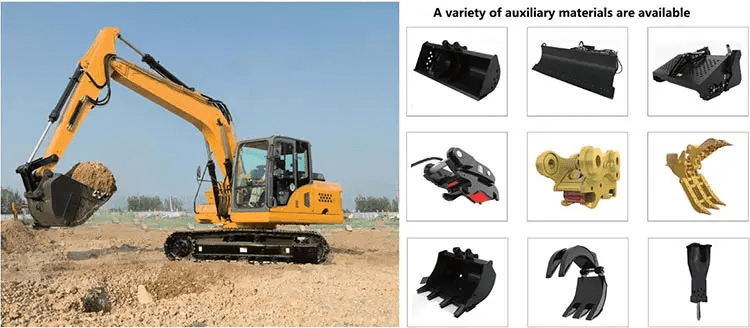

Structural display

Structural display

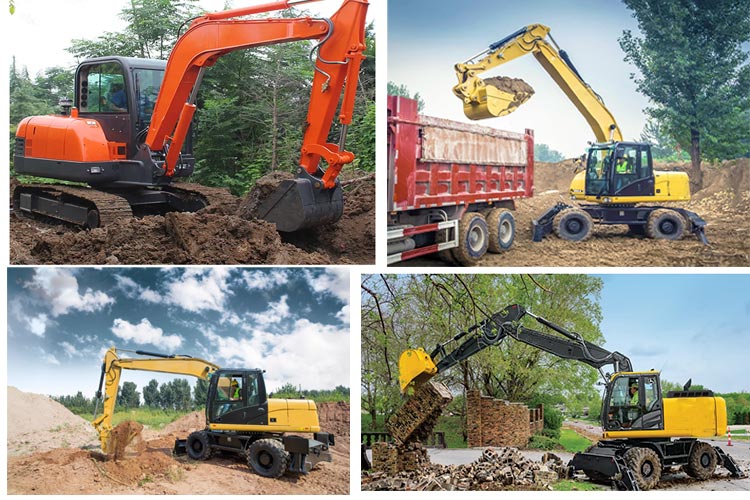

Applications

The product is widely used for indoor demolition, orchard planting, municipal engineering, greenhouses, land reclamation, nursery trenching and fertilization, pipelines, basement renovation, underground operations, etc.

Applications

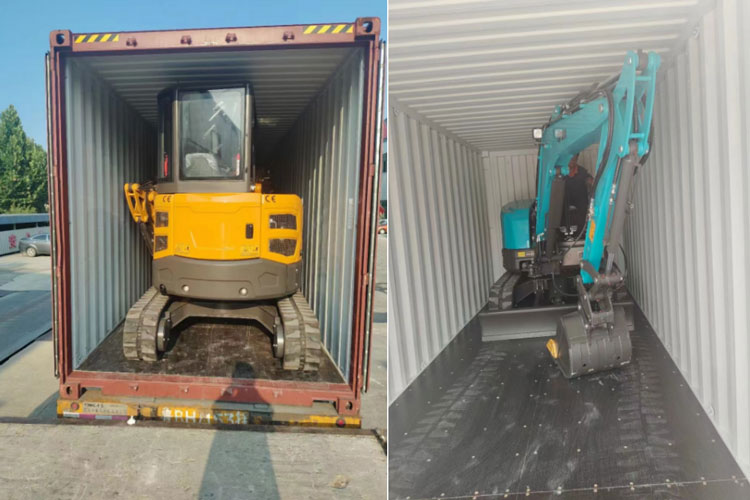

Logistics delivery
