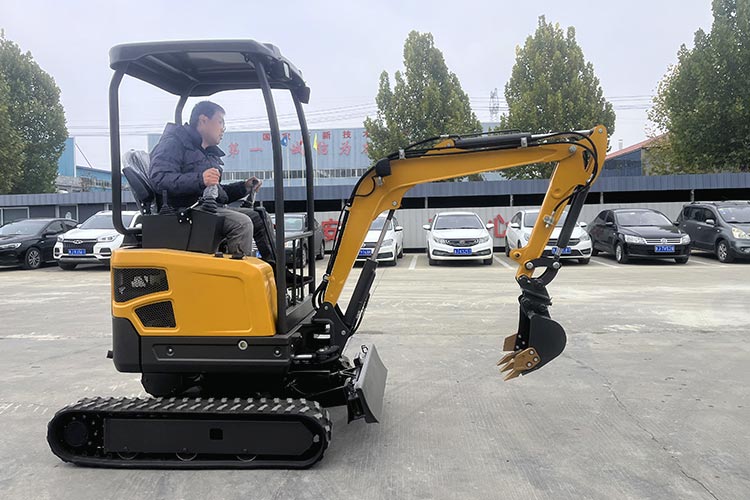

1.5T crawler excavator with strong climbing force

-Powerful, energy-saving, and fuel-efficient

-Superior performance, high configuration, and low fuel consumption

-Supports OEM, meets environmental standards, and the appearance color can be customized

-Engine type: Kubota

-Power: 10.2kw/2500rpm

-Bucket capacity: 0.025m ³

-Customization cycle: 25 days

-WhatsApp:+8615806625431

-Email: info@sdshinemachinery.com


  Contact Now E-mail Telephone WhatsApp
Product Details

ProductDetails

The arm of the 1.5T crawler excavator is formed by overall welding, and finally bored by the boring machine and treated with alkane,

which can effectively strengthen the robustness of the large and small arms, extend the service life of the pins and sleeves, and avoid welding fractures

at the welding points, making it durable and durable.

Product parameter

Performance parameters
Bucket capacity (m³)          0.025
Rotation speed (rmp)              14
Maximum climbing angle (°)30
Maximum digging force of bucket (KN) 9
Maximum digging force of bucket rod (KN)             5.5
Engine model

 KUBOTA

Power/speed (KW/rmp)    10.2/2500
Tire model-
System pressure (MPa)              20

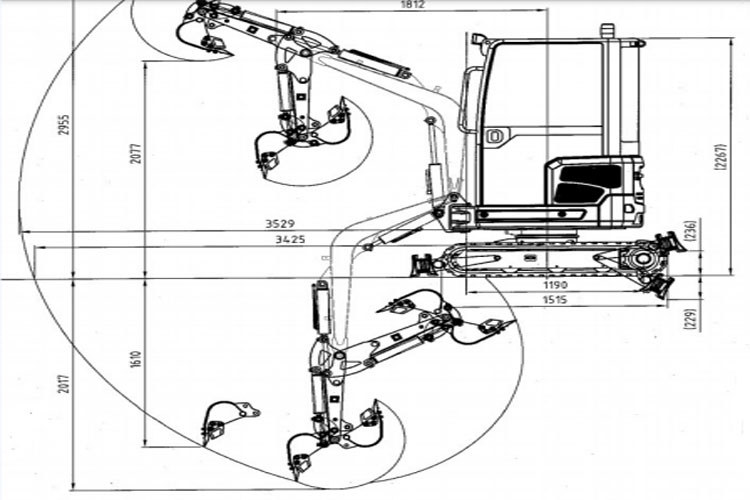

Scope of work
Maximum digging height (mm)2955
Maximum unloading height (mm)2077
Maximum digging depth (mm)2017
Maximum vertical digging depth (mm)1610
Maximum digging radius (mm)3529
Minimum turning radius (mm)1720
Maximum ground clearance of dozer blade (mm)236
Maximum depth of bulldozing board sinking (mm)229
Boom swing angle (left)°50
Boom swing angle (right)°52
Overall size
Overall dimensions length*width*height (mm)3865*1050*2270
Cab height (mm)2270
Wheelbase (mm)1230
Wheel (rail) gauge (mm)820
Minimum ground clearance (mm)210
Tail turning radius (mm)1125

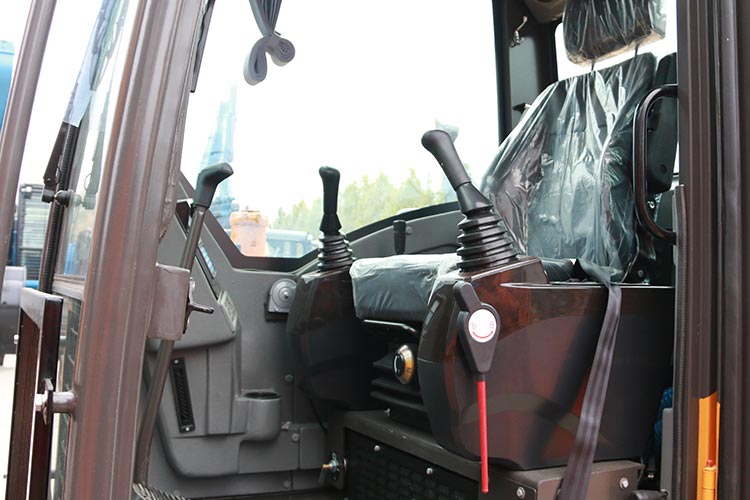

Product display

Powerful and precise rotation control of 1.5T tracked excavator: improve vibration absorption characteristics to ensure more accurate and stable rotation stop action; By increasing torque reserve, the machine is provided with stronger turning ability.

Product display

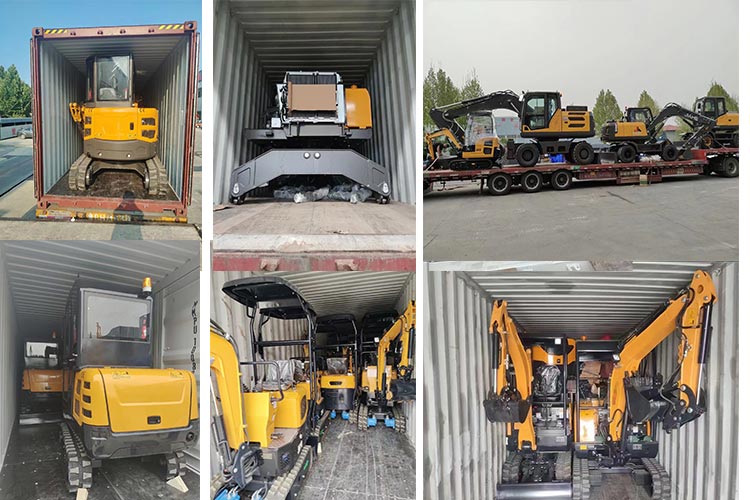

Logistics display

Logistics display

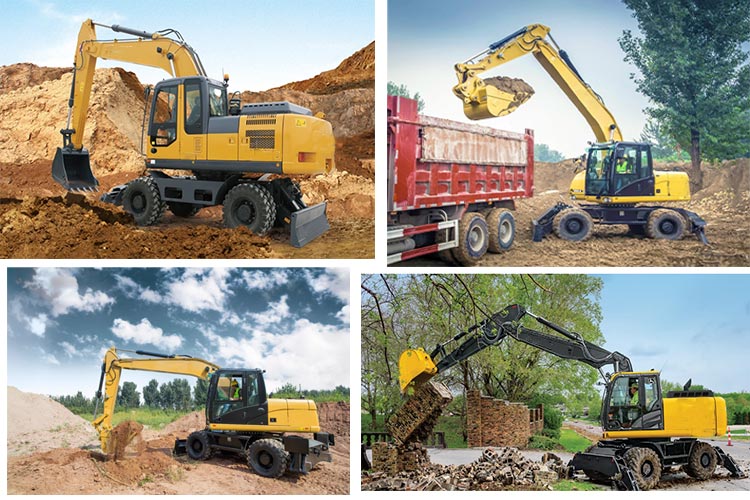

Applications

The product is widely used for indoor demolition, orchard planting, municipal engineering, greenhouses, land reclamation, nursery trenching and fertilization, pipelines, basement renovation, underground operations, etc.
