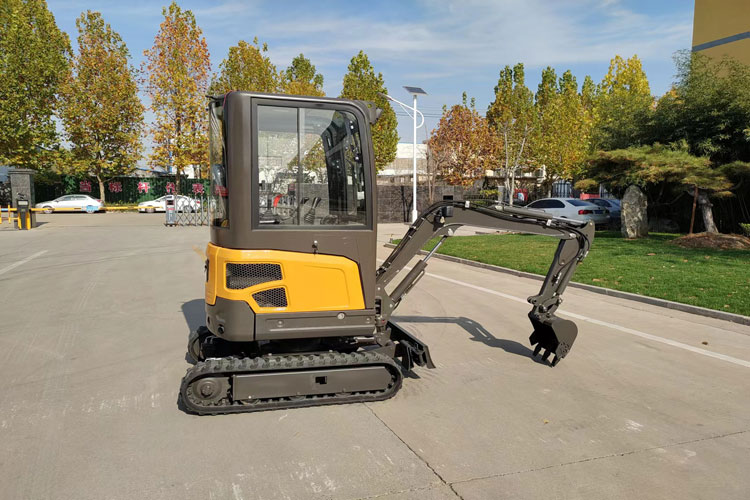

1.5T crawler excavator telescopic track

-Engine type: Kubota

-Bucket capacity: 0.025m ³

-Power: 10.2kw/2500rpm

-Supports OEM, meets environmental standards, and the appearance color can be customized

-Powerful, energy-saving and fuel-efficient

-Superior performance, high configuration, and low fuel consumption

-Customization cycle: 25 days

-WhatsApp:+86 15806625431

-Email: info@sdshinemachinery.com


  Contact Now E-mail Telephone WhatsApp
Product Details

Product Details

The width of the 1.5T tracked excavator is slightly more than one meter, but many small excavators are equipped with retractable tracks, making them thinner machines. Taking the Kubota ROC15 as an example, its standard width is only 1300 millimeters, but after being pulled into the track, its width is only 990 millimeters. When we say that there are very few access points that this machine cannot pass through, we are serious.

Product parameter

Performance parameters
Bucket capacity (m³)          0.025
Rotation speed (rmp)              14
Maximum climbing angle (°)30
Maximum digging force of bucket (KN) 9
Maximum digging force of bucket rod (KN)             5.5
Engine model

 KUBOTA

Power/speed (KW/rmp)    10.2/2500
Tire model-
System pressure (MPa)              20

Scope of work
Maximum digging height (mm)2955
Maximum unloading height (mm)2077
Maximum digging depth (mm)2017
Maximum vertical digging depth (mm)1610
Maximum digging radius (mm)3529
Minimum turning radius (mm)1720
Maximum ground clearance of dozer blade (mm)236
Maximum depth of bulldozing board sinking (mm)229
Boom swing angle (left)°50
Boom swing angle (right)°52

Overall size
Overall dimensions length*width*height (mm)3865*1050*2270
Cab height (mm)2270
Wheelbase (mm)1230
Wheel (rail) gauge (mm)820
Minimum ground clearance (mm)210
Tail turning radius (mm)1125

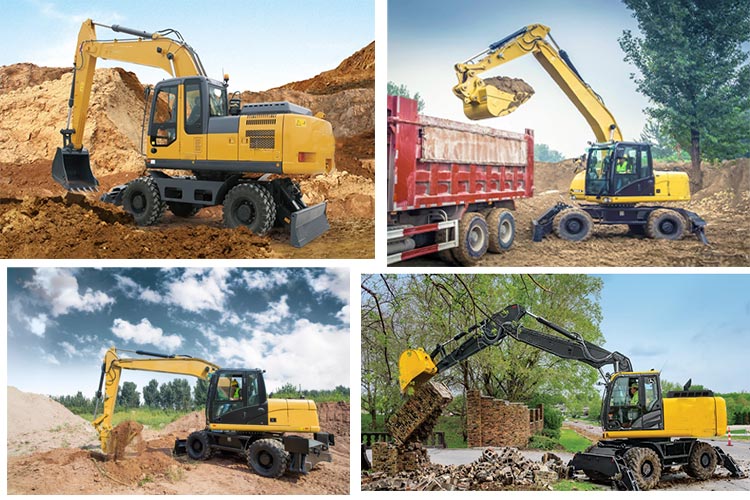

Applications

1.5T tracked excavator is widely used for indoor demolition, orchard planting, municipal engineering, greenhouses, land reclamation, nursery trenching and fertilization, pipelines, basement renovation, underground operations, etc.

Applications

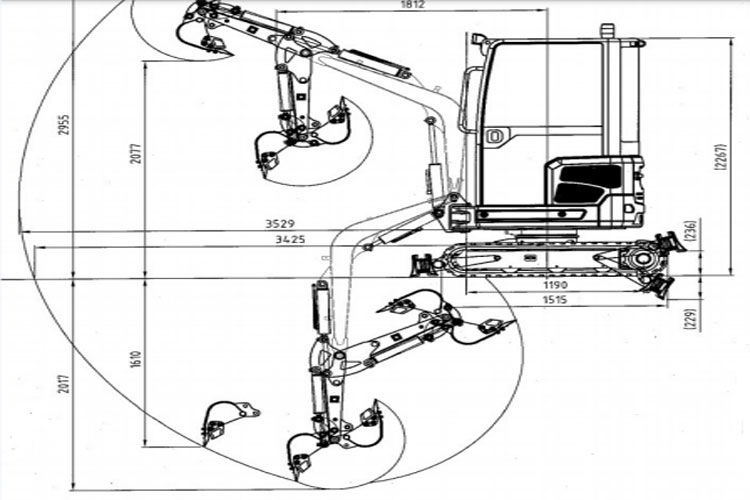

Mechanical drawing

Mechanical drawing

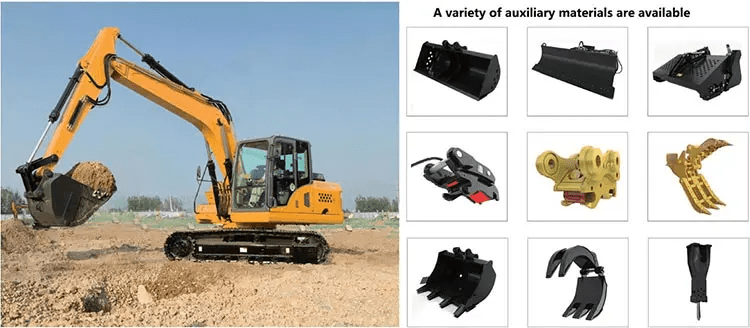

Structural display

The 1.5T tracked excavator uses a Kubota engine with strong power.

Structural display

Product display

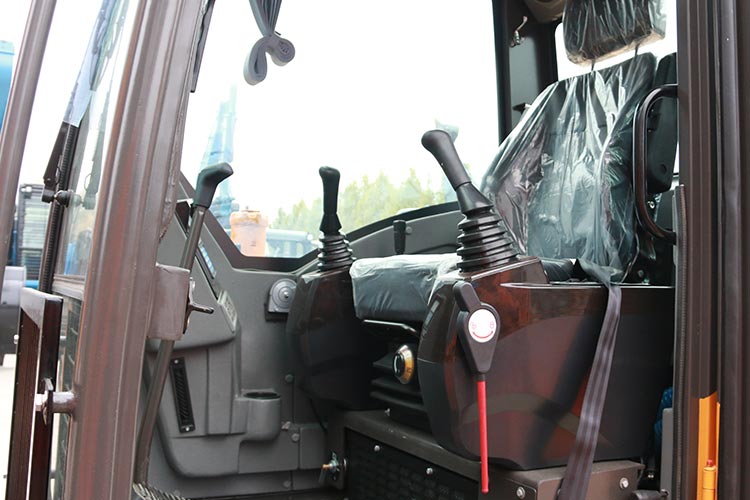

cab

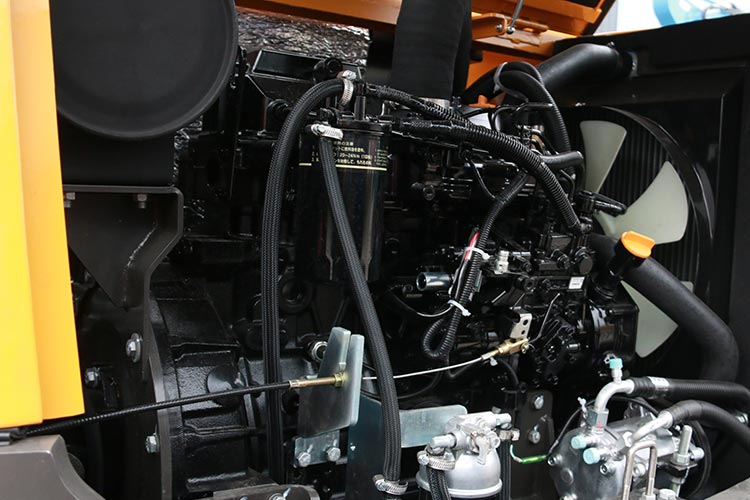

engine

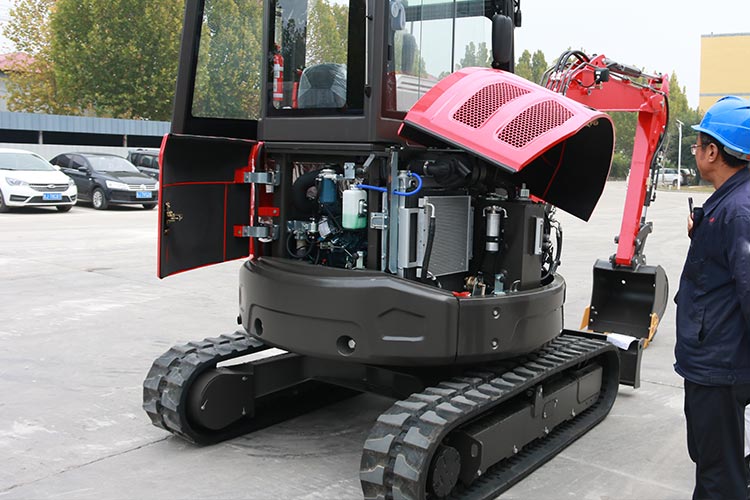

body display

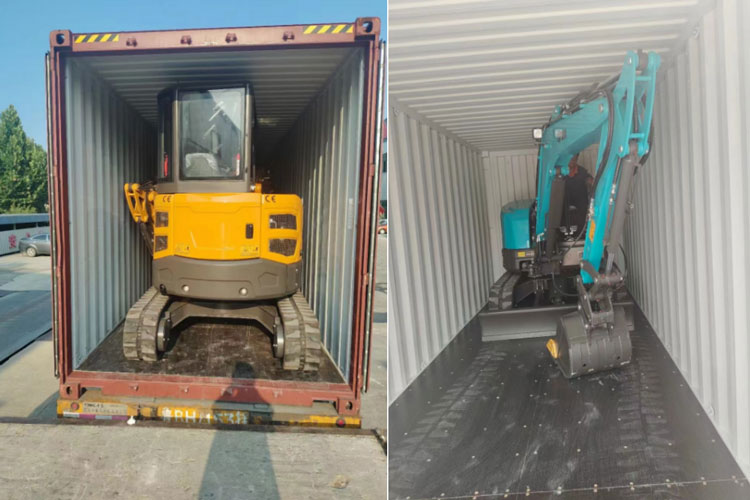

Logistics Display

Our trade method supports FOB/EXW/CIF/CFR

Logistics Display
