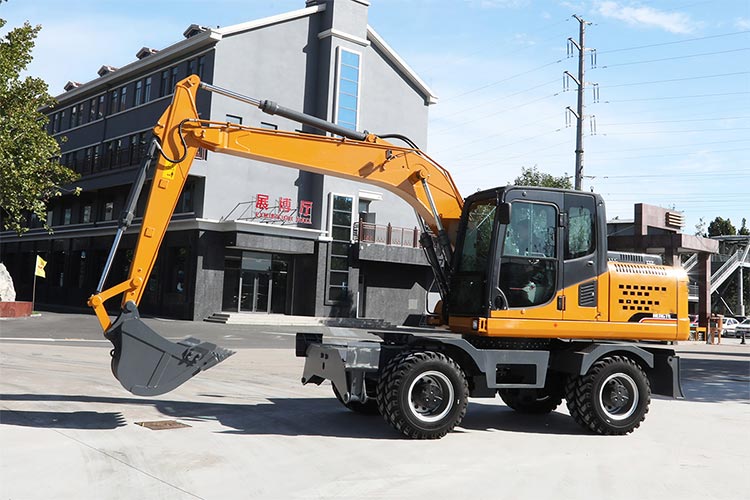

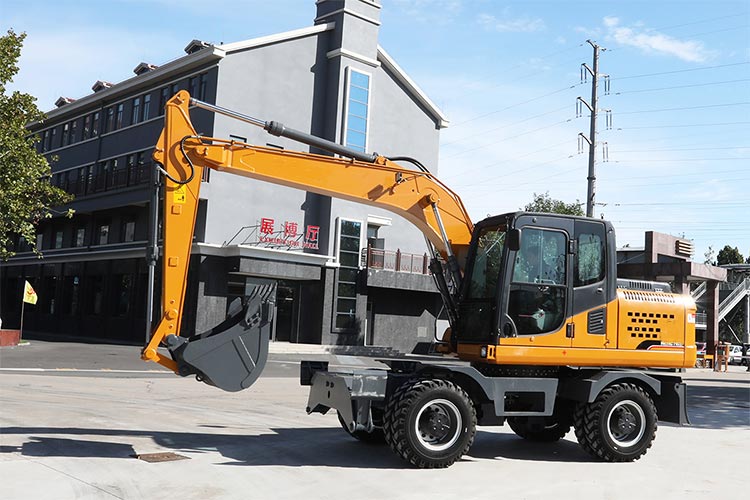

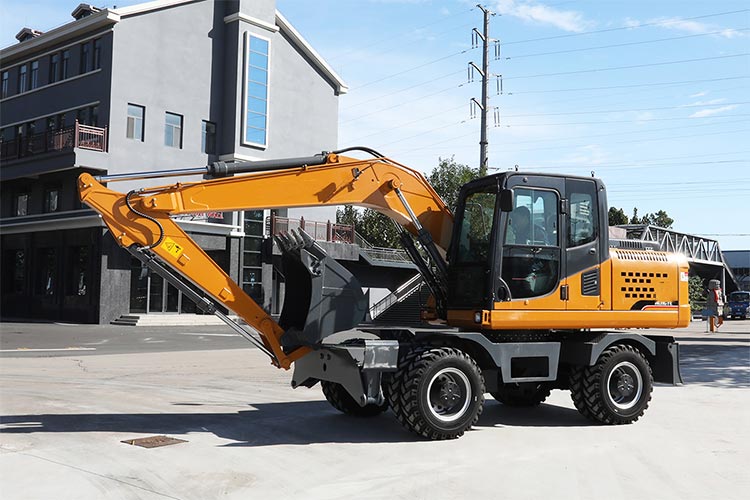

15.5 Ton Large wheel excavator Factory sales

International famous brand engine

Power:110Kw/2500rpm/min

Weigth:14000kg

Hydraulic system pressure:32Mpa

Hydraulic system flow:2*130L/min

Fuel tank capacity:220L

Hydraulic tank capacity:180L

Email:Sunny@hoclshine.com

WhatsApp:+8615806625431

  Contact Now E-mail Telephone WhatsApp
Product Details

15.5 Ton of new generation of full hydraulic wheel excavator,using high power and low fuel consumption of well-known brand engine(Cummins),the application of turbocharging the lastest fuel saving technology,fuel consumption is 10% lower than similar products,cleaner combustion performance and low energy exhaust emissions,strong power,stable and reliable

15.5 Ton wheel excavator


Product parameter

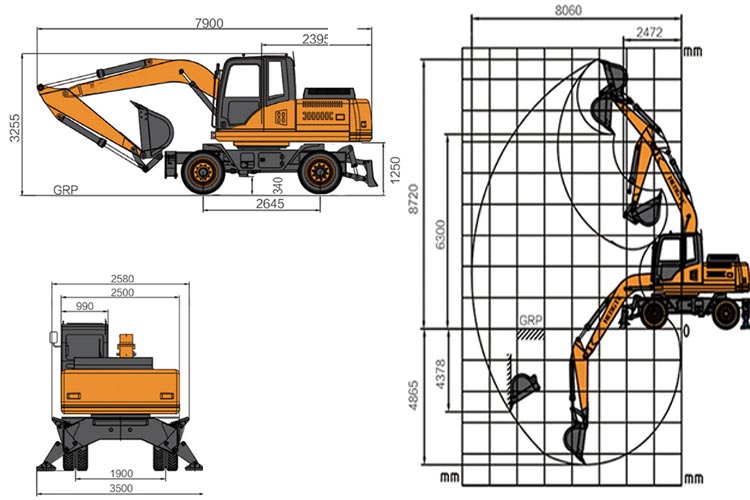

                                            Technical Specification
ShippingLength7900mm
ShippingHeight3255mm
OverallWidth2580mm
Tail turning radius2395mm
WheelTread1900mm
Wheelbase2645mm
Boom length4600mm
Stick length2200mm
Overall weigth14000kg


                                    Working Range and digging Force
Max.DiggingRadius8060mm
Max.DiggingHeight8720mm
Max.DiggingDepth4865mm
Max.Unloading height6300mm
BucketForces85kn
Armforces53kn
BucketVolume0.6m3
Gradebility>60%
SwingSpeed13-14r/min
TeavelSpeed30Km/h

15.5 Ton wheel excavator

Product detail

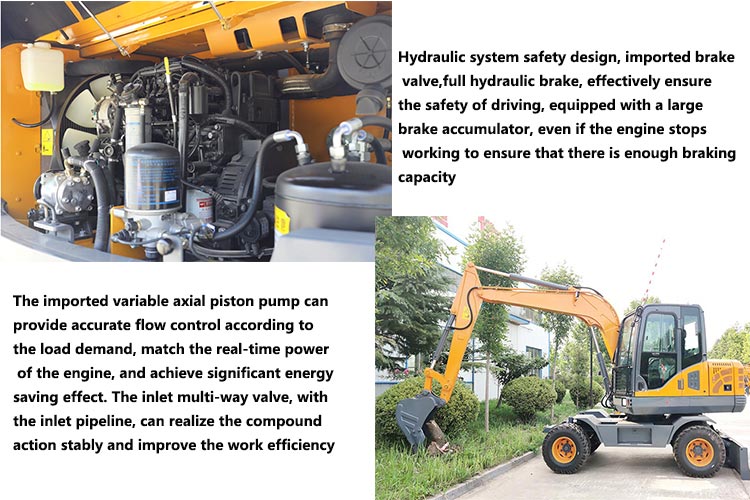

15.5 Ton of new generation of hydraulic wheel excavator,using intelligent driving computer,with big data analysis and storage functions,timely warning function,international well-known brand engine,more fuel saving,strong power,at the same time,the original imported main hydraulic system is perfectly matched with the engine to provide accurate flow and improve the operation effect

15.5 Ton wheel excavator

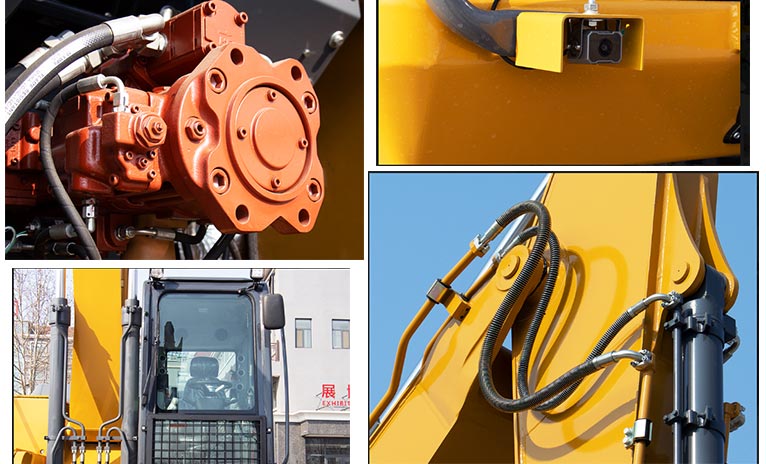

  • Spacious and comfortable cab with wide all-round view

  • Ergonomic ner suspension seat to improve the driver's operating comfort

  • The use of internationally renowned brand engine,reduce fuel consumption strong power

  • The original imported main hydraulic system is perfectly matched with the engine,accurately providing flow and improving working efficiency

  • Intelligent driving computer,with big data analysis and storage functions,timely warning tips

  • Full-time four-wheel drive,equipped with high and low gear,with high-speed walking ability,can achieve rapid transition

  • High driving force,so that the vehicle has flexible escape ability,to ensure strong off-road performance

15.5 Ton wheel excavator

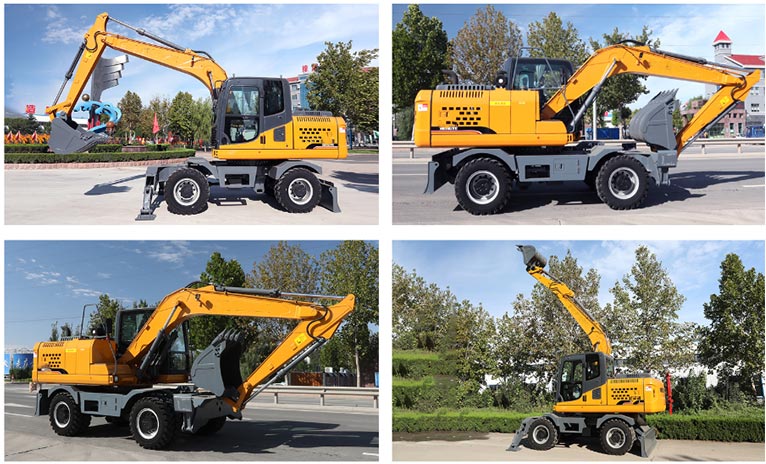

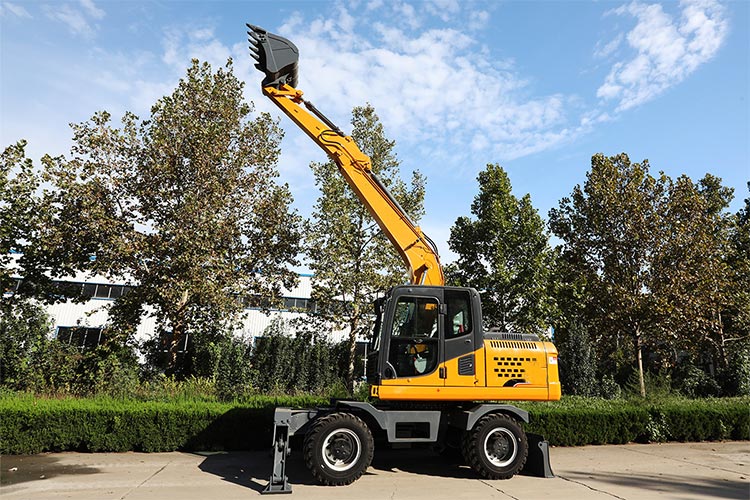

Product muiti-angle display

15.5 Ton wheel excavator

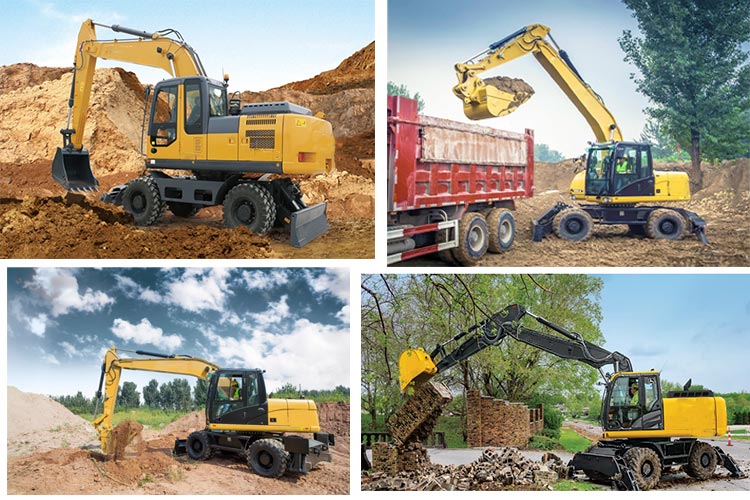

15.5 Ton wheel excavator is a large excavator and is suitable for large-scale projects,Such as mining,quarrying,large-scale foundation engineering construction,large-scale construction site construction,forest operations,etc.,In addition,our excavators are also equipped with a variety of auxiliary equipment to meet various operating scenarios in large-scale engineering coustruction

15.5 Ton wheel excavator
