17.5 Tons large wheeled excavator manufacturer

1、Famous national three engine,using newly developed fuel saving technology,strong power

2、The original imported hydraulic system and the engine perfectly match,accurately provide flow,improve the operation effect

3、Full time four-wheel drive with high and low gears for quick transitions

Email:info@sdshinemachinery.com

WhatsApp:+8615806625431


  Contact Now E-mail Telephone WhatsApp
Product Details

15.5 tons of new generation hydraulic wheel excavator, the use of high power and low fuel consumption of three well-known brand engine, to ensure the strong power and power reserve of the whole machine, efficient hydraulic system and bridge box accurate matching, to ensure that the working state and walking state of the switch, the hydraulic system matching imported hydraulic parts, with coordinated action, high reliability, safety and environmental protection, Comfortable and convenient, and can provide customized requirements according to customer needs, can adapt to the needs of different countries and customers

17.5 Ton wheel excavator

Product parameter

                                                              Technical Specification
ShippingLength7540mm
ShippingHeight3300mm
OverallWidth2550mm
Tail turning radius2400mm
Turntable width2500mm
Wheelbase2670mm
WheelTread1900mm
Boom length4600mm
Stick length2500mm

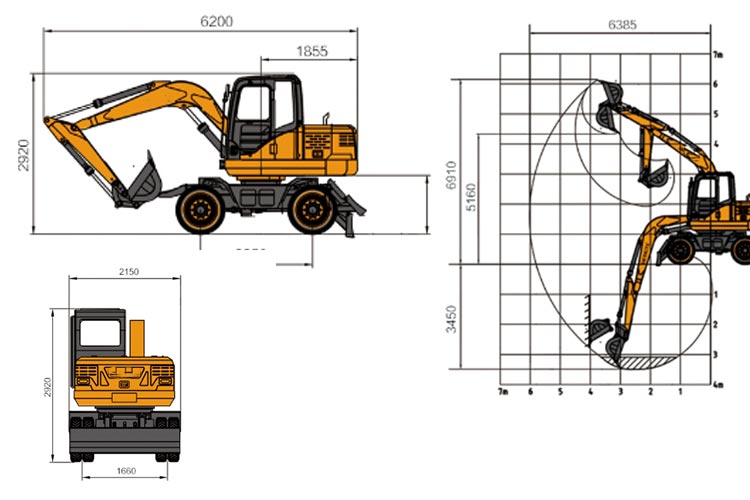

                                                        Working Range and Digging Force
Maximum excavation radius8550mm
Maxmum excavation height9022mm
Maximum excavation depth5045mm
Maximum unloading height6260mm
Bucket digging force92.2kn
Stick digging force59.7kn
Bucket capacity0.7m3
Gradient>60%
Slewing speed13-14r/min
Maximum walking speed30km/h

17.5 wheel excavator

Product details

15.5 tons of new generation hydraulic wheel excavator, the use of high power and low fuel consumption of three well-known brand engine, to ensure the strong power and power reserve of the whole machine, efficient hydraulic system and bridge box accurate matching, to ensure that the working state and walking state of the switch, the hydraulic system matching imported hydraulic parts, with coordinated action, high reliability, safety and environmental protection, Comfortable and convenient, and can provide customized requirements according to customer needs, can adapt to the needs of different countries and customers

17.5 Ton wheel excavator

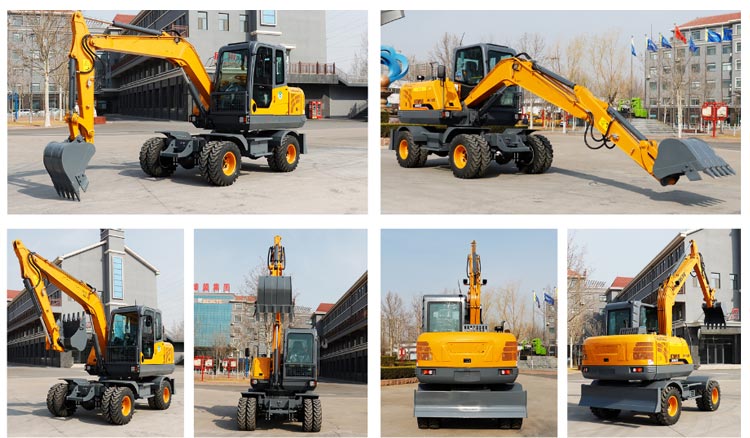

Product multi-angle display

17.5 Ton wheel excavator

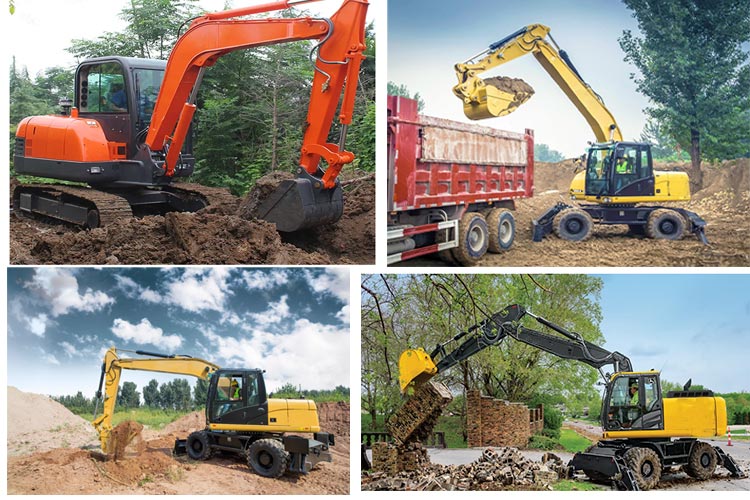

Application scenario

17.5 Ton wheel excavator applicable to indoor demolition,toilet upgrading,engineering forcible entry,excavator barreb hills,small earthwork,municipal projects,break concrete,dredging river and pther working environment

17.5 Ton wheel excavator
