1.8T mini crawler excavator with Kubota engine

-Powerful, energy-saving, and fuel-efficient

-Superior performance, high configuration, and low fuel consumption

-Supports OEM, meets environmental standards, and the appearance color can be customized

-Engine type: Kubota

-Power: 18.4kw/2350rpm

-Bucket capacity: 0.06m ³

-Customization cycle: 25 days

-WhatsApp:+8615806625431


  Contact Now E-mail Telephone WhatsApp
Product Details

Product Details

The 1.8T tracked excavator has flexible rotation and precise and focused operation. Due to the zero turning radius design adopted at the tail of the small excavator, the boom in the excavator components is hinged with the body, allowing for a wide range of swinging. Even if encountering obstacles, the body can be avoided without transferring. Therefore, in limited space, the operator does not need to consider whether there are obstacles hindering rotation at the construction site, so they can focus more on the operation of the bucket and move more accurately. At the same time, the rubber tracks in the components of small excavators help reduce the damage to narrow construction areas and roads during the excavator construction process, making construction operations more refined.

Product parameter

Performance parameters
Bucket capacity (m³)0.06
Rotation speed (rmp)10-12
Maximum climbing angle (°)35
Maximum digging force of bucket (KN)14
Maximum digging force of bucket rod (KN)10
Engine modelKUBOTA
Power/speed (KW/rmp)18.4/2350
Tire model-
System pressure (MPa)18

Scope of work


Maximum digging height (mm)3365
Maximum unloading height (mm)2385
Maximum digging depth (mm)2050
Maximum vertical digging depth (mm)1725
Maximum digging radius (mm)3860
Minimum turning radius (mm)1720
Maximum ground clearance of dozer blade (mm)230
Maximum depth of bulldozing board sinking (mm)275
Boom swing angle (left)°75
Boom swing angle (right)°45



Overall size
Overall dimensions length*width*height (mm)3865*1050*2270
Cab height (mm)2270
Wheelbase (mm)1230
Wheel (rail) gauge (mm)820
Minimum ground clearance (mm)210
Tail turning radius (mm)1125

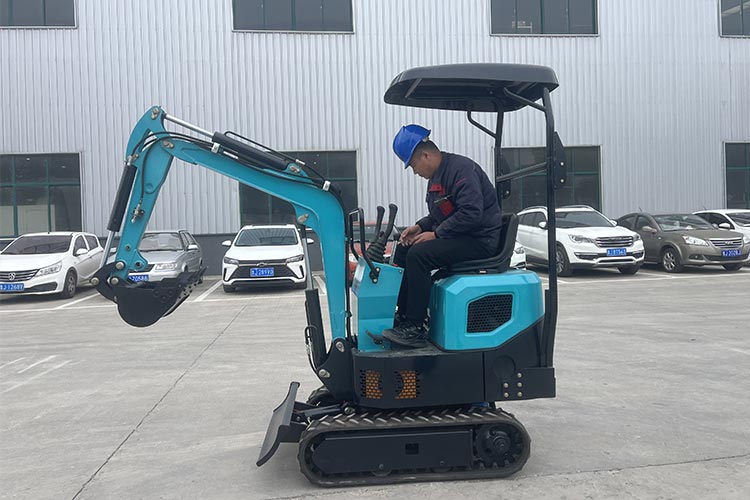

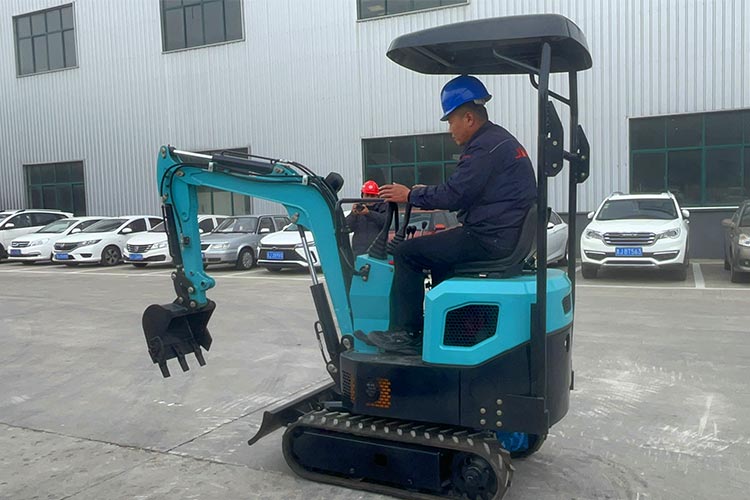

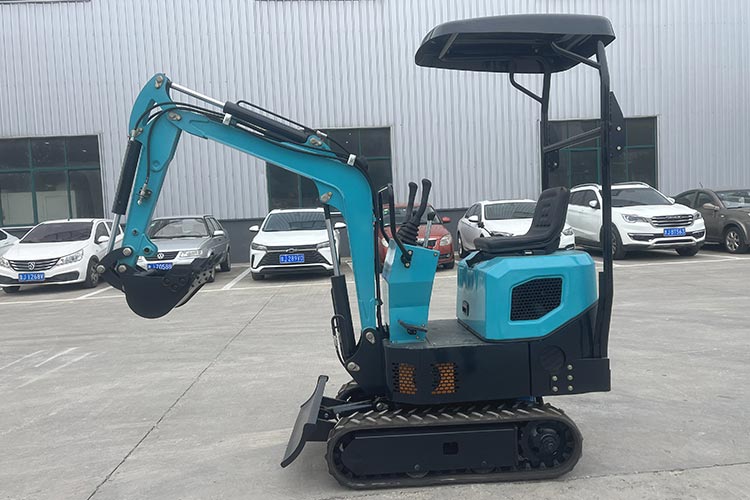

Product display

Integrated reinforced vehicle tray, robot welding, and weld forming completely eliminate the influence of human factors. The arc is stable, the penetration depth is controllable, and the forming is beautiful

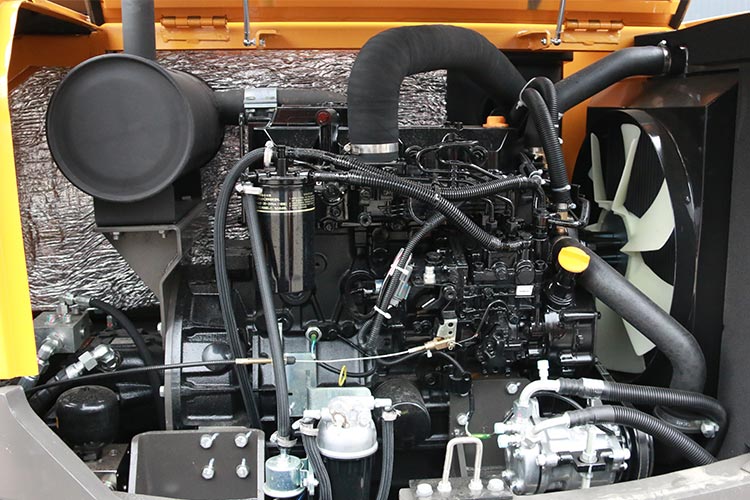

Core accessories

Applications

The product is widely used for indoor demolition, orchard planting, municipal engineering, greenhouses, land reclamation, nursery trenching and fertilization, pipelines, basement renovation, underground operations, etc.

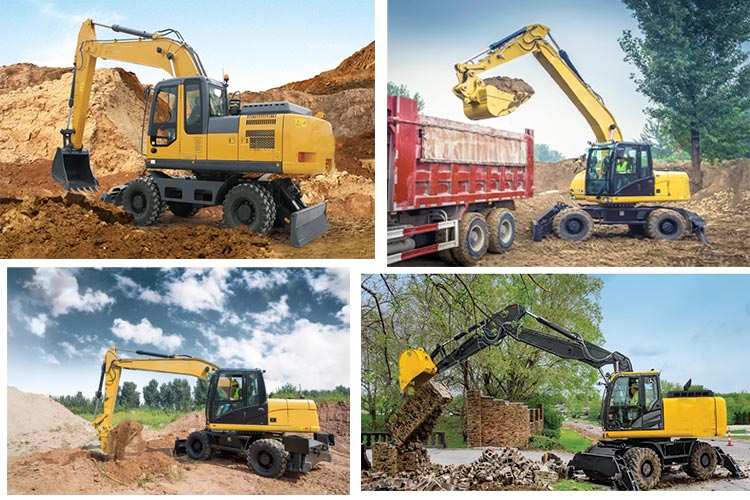

Application display

Logistics delivery

Logistics delivery
