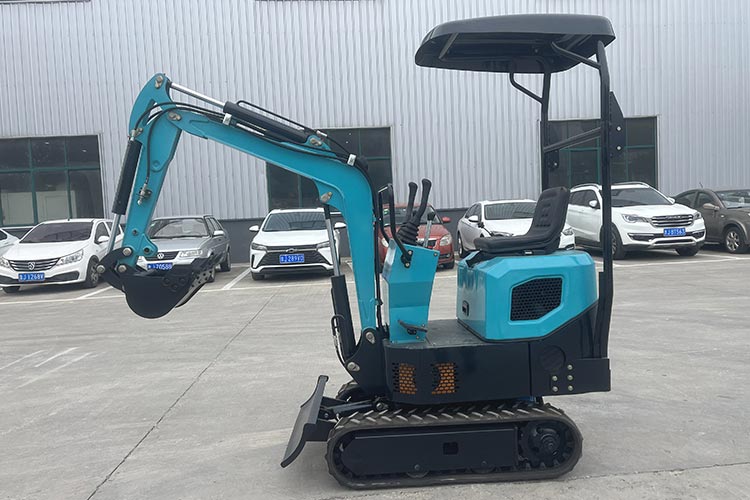

1.8T mini Tracked Excavator

-Powerful, energy-saving, and fuel-efficient

-Superior performance, high configuration, and low fuel consumption

-Supports OEM, meets environmental standards, and the appearance color can be customized

-Engine type: Kubota

-Power: 18.4kw/2350rpm

-Bucket capacity: 0.06m ³

-Customization cycle: 25 days

-WhatsApp:+86 186689901

-Email: info@sdshinemachinery.com


  Contact Now E-mail Telephone WhatsApp
Product Details

Product Details

Standard crushing pipeline can be equipped with various attachments such as crushing hammers, scarifiers, wood grabbers, spiral drills, etc., making it versatile for one machine;A versatile worker. Small excavators can achieve multifunctional operations by replacing various auxiliary tools in the excavator components. For example, after installing a roller and a flat compactor, it can be used to bury grooves, resulting in uneven compaction; After installing the hydraulic hammer and hydraulic pliers, lightweight disassembly operations can be carried out; The rotary drilling rig of this device can be used for drilling holes; Hook can be used for lifting; This device can be used for cleaning work after being clamped with finger pliers.

Product parameter

Performance parameters
Bucket capacity (m³)0.06
Rotation speed (rmp)10-12
Maximum climbing angle (°)35
Maximum digging force of bucket (KN)14
Maximum digging force of bucket rod (KN)10
Engine model

KUBOTA

Power/speed (KW/rmp)18.4/2350
Tire model-
System pressure (MPa)18

Scope of work
Maximum digging height (mm)3365
Maximum unloading height (mm)2385
Maximum digging depth (mm)2050
Maximum vertical digging depth (mm)1725
Maximum digging radius (mm)3860
Minimum turning radius (mm)1720
Maximum ground clearance of dozer blade (mm)230
Maximum depth of bulldozing board sinking (mm)275
Boom swing angle (left)°75
Boom swing angle (right)°45



Overall size
Overall dimensions length*width*height (mm)3865*1050*2270
Cab height (mm)2270
Wheelbase (mm)1230
Wheel (rail) gauge (mm)820
Minimum ground clearance (mm)210
Tail turning radius (mm)1125

Product display


The overall reinforced vehicle tray, robot welding, and weld forming completely eliminate the influence of human factors, with stable arc, controllable penetration, and beautiful forming.

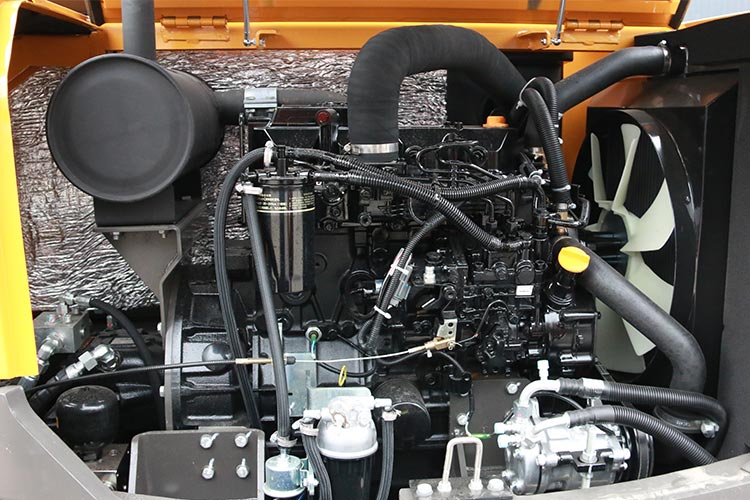

Core accessories

Funnel shaped fan hood greatly enhances the engine's air intake and system heat dissipation capacity, ensuring continuous and efficient operation of the machine

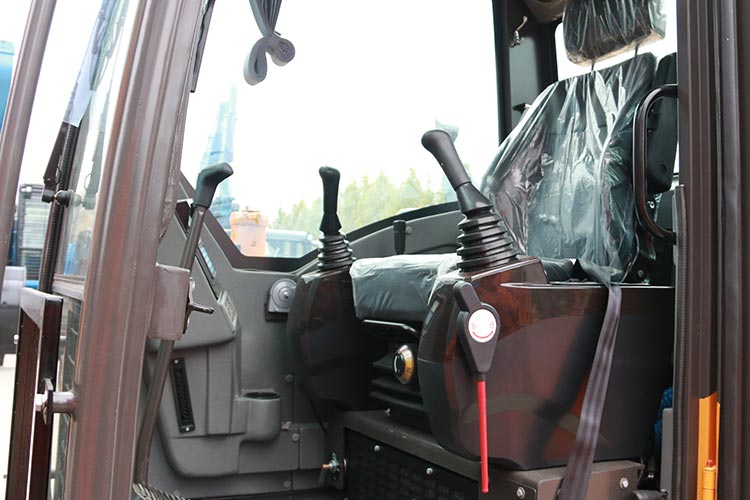

pilothouse

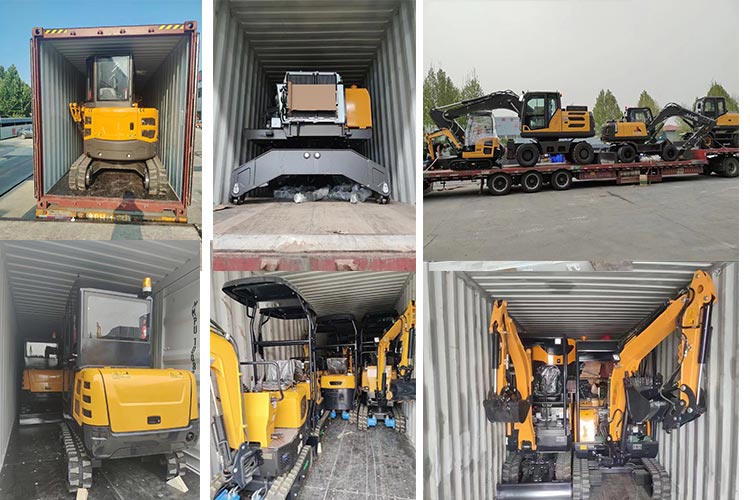

Logistics delivery

Logistics delivery

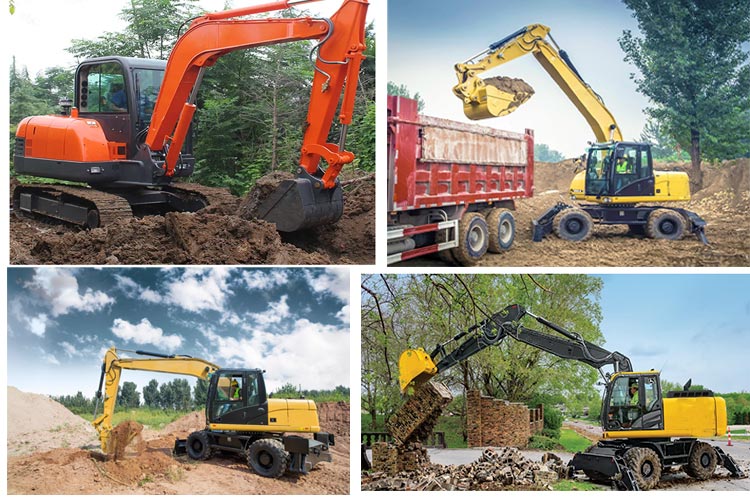

Applications

The product is widely used for indoor demolition, orchard planting, municipal engineering, greenhouses, land reclamation, nursery trenching and fertilization, pipelines, basement renovation, underground operations, etc.
