2.0l tracked excavator with low fuel consumption

-Superior performance, high configuration, and low fuel consumption

-Powerful, energy-saving, and fuel-efficient

-Supports OEM, meets environmental standards, and the appearance color can be customized

-Engine type: Kubota

-Power: 14.2kW (19HP) @ 2000rpm

-Bucket capacity: 0.07m ³

-Customization cycle: 25 days

-WhatsApp:+8615806625431

-Email: info@sdshinemachinery.com


  Contact Now E-mail Telephone WhatsApp
Product Details

Product Details

The cutting plates of the 2.0T crawler excavator bucket are made of special wear-resistant steel plates, suitable for heavy-duty operations. They are equipped with wear-resistant bucket teeth and side teeth to improve the machine's performance. The funnel shaped fan cover greatly enhances the engine's air intake and system heat dissipation capacity, ensuring continuous and efficient operation of the machine. High end configurations include the main pump, main valve, rotary motor, walking motor, oil cylinder, pilot operated valve, and other components, all of which are internationally renowned brands, ensuring the quality of the product. The design of improving the cross-sectional shape of the track frame reduces soil accumulation, makes the carrier roller less prone to wear, and improves the durability of the machine.

Product parameter

Performance parameters
Bucket capacity (m³)0.07
Rotation speed (rmp)0-9
Maximum climbing angle (°)35
Maximum digging force of bucket (KN)18
Maximum digging force of bucket rod (KN)11
Engine modelKUBOTA
Power/speed (KW/rmp)

14.2kw(19HP)@2000rpm

Tire model-
System pressure (MPa)21.5

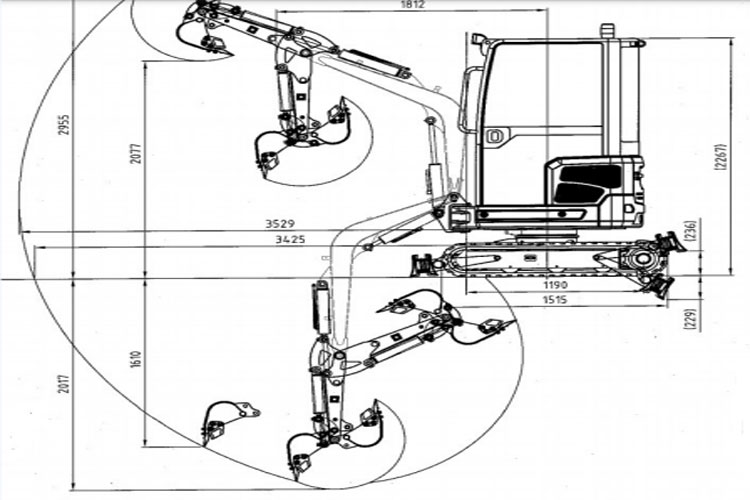

Scope of work
Maximum digging height (mm)3700
Maximum unloading height (mm)2440
Maximum digging depth (mm)2400
Maximum vertical digging depth (mm)2025
Maximum digging radius (mm)4040
Minimum turning radius (mm)1610
Maximum ground clearance of dozer blade (mm)240
Maximum depth of bulldozing board sinking (mm)270


Overall size
Overall dimensions length*width*height (mm)3555*1300*2290
Wheelbase (mm)1230
Wheel (rail) gauge (mm)760
Minimum ground clearance (mm)150

Tail turning radius (mm)

650

Product display

The 2.0T crawler excavator has a multifunctional LCD monitor with a large screen and digital display, which comprehensively monitors the working status of the engine (such as speed, water temperature, oil pressure, etc.). Various operating information of the machine can be queried at any time. The function switches are centrally arranged on the control panel and can be easily selected through touch buttons.

pilothouse

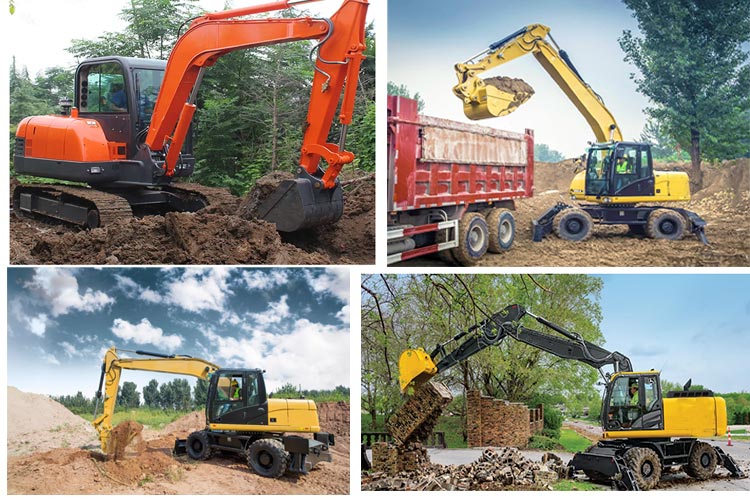

Applications

The product is widely used for indoor demolition, orchard planting, municipal engineering, greenhouses, land reclamation, nursery trenching and fertilization, pipelines, basement renovation, underground operations, etc.

Applications

Logistics display


Logistics display
