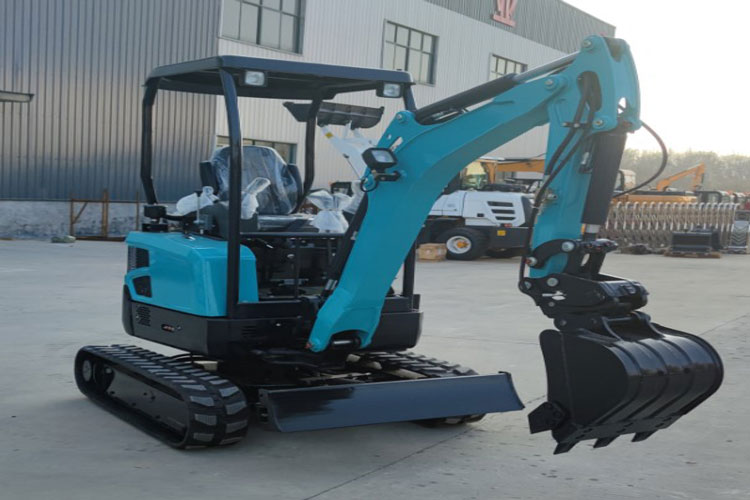

2.0T crawler excavator with strong climbing force

-Superior performance, high configuration, and low fuel consumption

-Powerful, energy-saving, and fuel-efficient

-Supports OEM, meets environmental standards, and the appearance color can be customized

-Engine type: Kubota

-Power: 14.2kW (19HP) @ 2000rpm

-Bucket capacity: 0.07m ³

-Customization cycle: 25 days

-WhatsApp:+8615806625431

-Email: info@sdshinemachinery.com

Contact Now E-mail Telephone WhatsApp

Product Details

ProductDetails

The 2.0T crawler excavator arm is formed by overall welding, and finally bored by the boring machine and treated with alkane,

which can effectively strengthen the robustness of the large and small arms, extend the service life of the pins and sleeves, and

avoid welding fractures at the welding points, making it durable. Using thickened steel plates and adding side reinforcement

plates to improve wear resistance; When using a flat bottom bucket for leveling operations, the finishing surface should be neat and flat.

Product parameter

Performance parameters
Bucket capacity (m³)	0.07
Rotation speed (rmp)	0-9
Maximum climbing angle (°)	35
Maximum digging force of bucket (KN)	18
Maximum digging force of bucket rod (KN)	11
Engine model	KUBOTA
Power/speed (KW/rmp)	14.2kw(19HP)@2000rpm
Tire model	-
System pressure (MPa)	21.5

Scope of work
Maximum digging height (mm)	3700
Maximum unloading height (mm)	2440
Maximum digging depth (mm)	2400
Maximum vertical digging depth (mm)	2025
Maximum digging radius (mm)	4040
Minimum turning radius (mm)	1610
Maximum ground clearance of dozer blade (mm)	240
Maximum depth of bulldozing board sinking (mm)	270

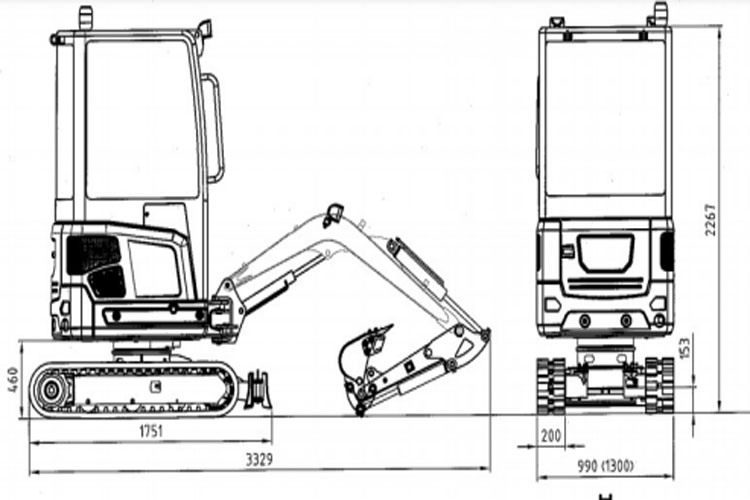

Overall size
Overall dimensions lengthwidthheight (mm)	355513002290
Wheelbase (mm)	1230
Wheel (rail) gauge (mm)	760
Minimum ground clearance (mm)	150
Tail turning radius (mm)	650

Applications

The product is widely used for indoor demolition, orchard planting, municipal engineering, greenhouses, land reclamation, nursery trenching and fertilization, pipelines, basement renovation, underground operations, etc.

Applications

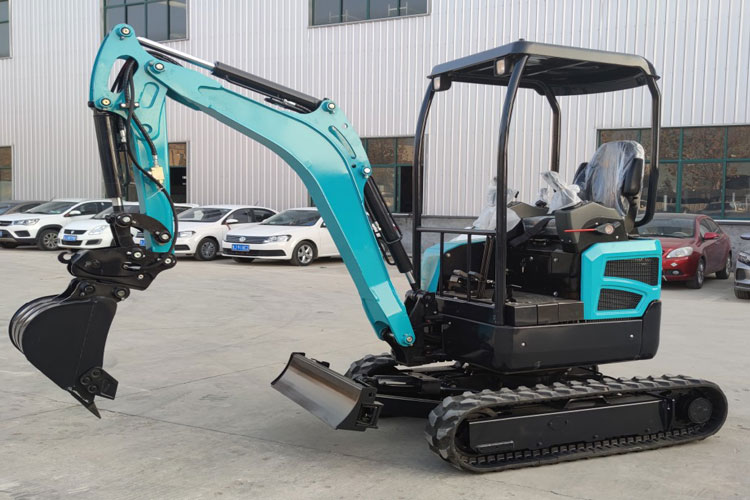

Product display

The 2.0T crawler excavator has a large capacity fuel tank, which enables long-term operation and longer repair and maintenance cycles. High quality components are selected to extend service life and reduce machine maintenance time.

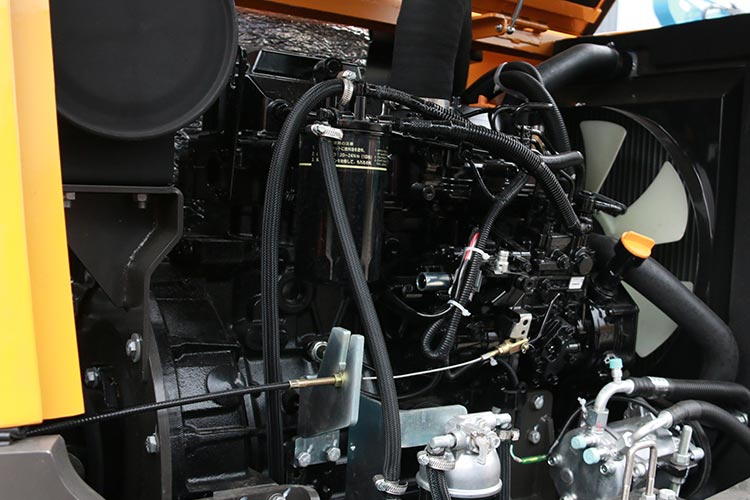

Core part
