2T tracked excavator strong flexible

-Power: 22.1kW (19HP)/2300rpm

-Engine type: Kubota

-Superior performance, high configuration, and low fuel consumption

-Powerful, energy-saving and fuel-efficient

-Supports OEM, meets environmental standards, and the appearance color can be customized

-Bucket capacity: 0.1m ³

-Customization cycle: 25 days

-WhatsApp:+8615806625431

-Email: info@sdshinemachinery.com


  Contact Now E-mail Telephone WhatsApp
Product Details

ProductDetails

The 2.0T tracked excavator adopts a tracked transmission system, which has the advantage of driving in complex terrains. It can adapt to both uneven construction sites and wild mountains and ridges. In addition, tracked excavators have stronger maneuverability, can move flexibly, are easier to adjust construction positions, have a lower center of gravity, and have a wider chassis, making them more stable. During construction, tracked excavators can operate stably, reducing the likelihood of overturning and other accidents; Crawler excavators are equipped with various tools, such as buckets, hooks, etc., which can adapt to different working environments and needs. In addition, tracked excavators have a large installed capacity and can be equipped with hydraulic and power systems of different specifications as needed.

Product parameter

Performance parameters
Bucket capacity (m³)0.07
Rotation speed (rmp)0-9
Maximum climbing angle (°)35
Maximum digging force of bucket (KN)18
Maximum digging force of bucket rod (KN)11
Engine modelKUBOTA
Power/speed (KW/rmp)

14.2kw(19HP)@2000rpm

Tire model-
System pressure (MPa)21.5

Scope of work
Maximum digging height (mm)3700
Maximum unloading height (mm)2440
Maximum digging depth (mm)2400
Maximum vertical digging depth (mm)2025
Maximum digging radius (mm)4040
Minimum turning radius (mm)1610
Maximum ground clearance of dozer blade (mm)240
Maximum depth of bulldozing board sinking (mm)270

Overall size
Overall dimensions length*width*height (mm)3555*1300*2290
Wheelbase (mm)1230
Wheel (rail) gauge (mm)760
Minimum ground clearance (mm)150

Tail turning radius (mm)

650

Product display

The engine and hydraulic system of the 2.0T tracked excavator have been comprehensively upgraded, further improving system efficiency, achieving lower consumption and higher efficiency, and further reducing maintenance costs. While providing more benefits, it also effectively reduces operating costs, bringing you maximum value, lower operating costs, and more competitive advantages.

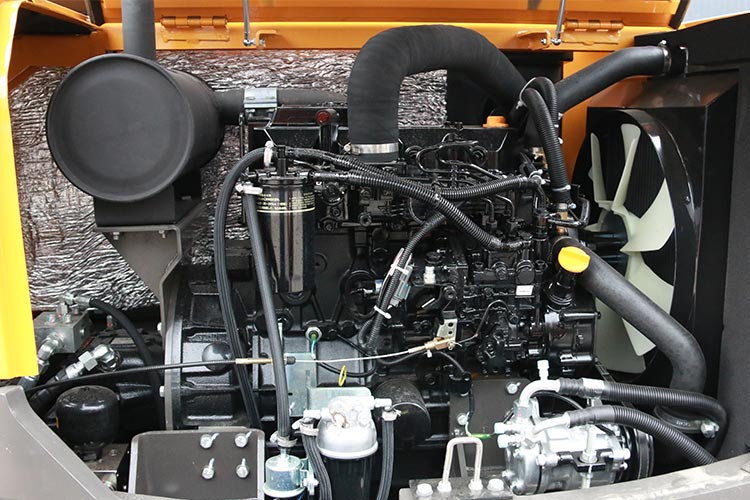

engine

The operating system of the 2.0T tracked excavator is highly integrated and can be driven after simple training.

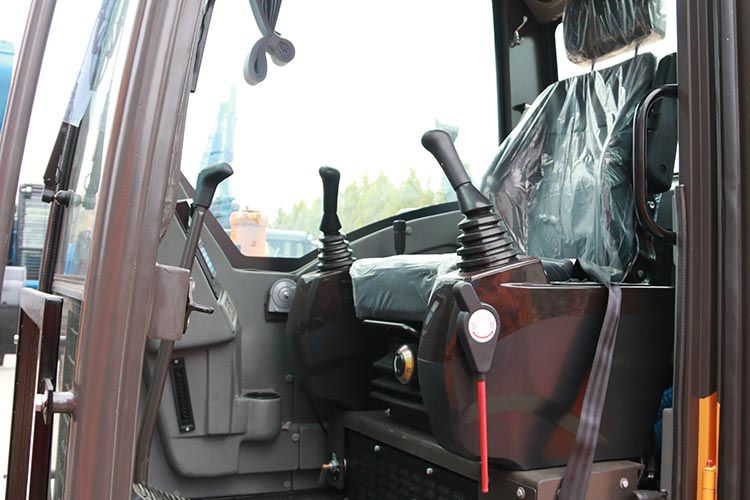

pilothouse

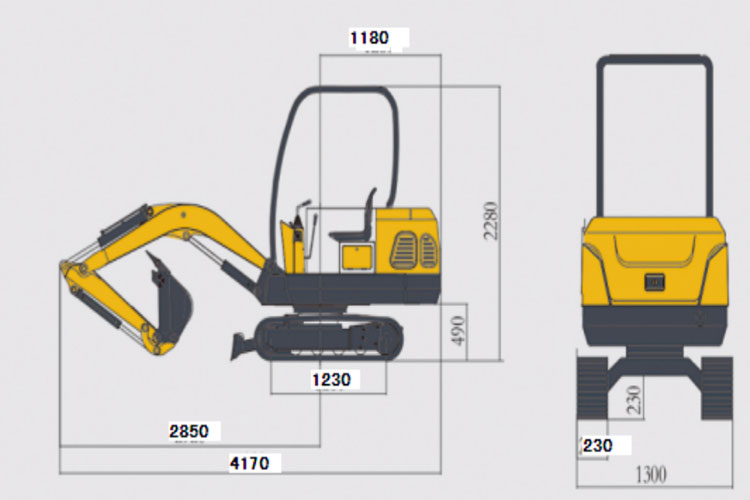

Mechanical drawing

The mechanical design of the 2.0T mini tracked excavator is reasonable.

Mechanical drawing

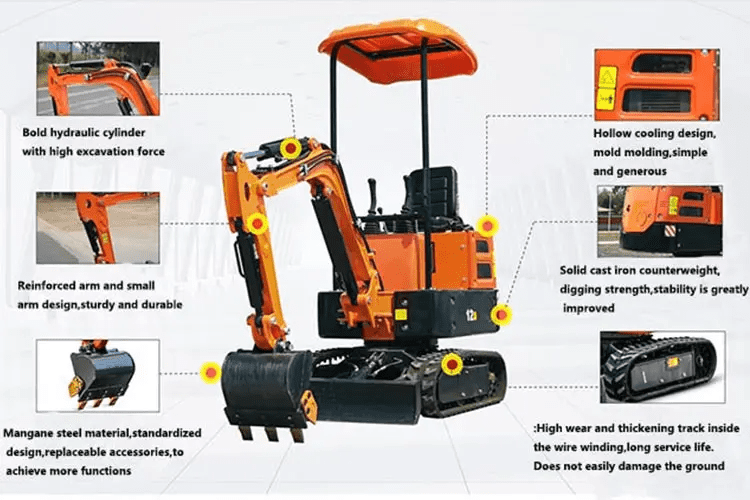

Structural display

The 2.0T mini tracked excavator has a reasonable structural layout and high-quality parts.

Structural display

Applications

The 2.0T mini tracked excavator has a wide range of applications, including road laying, mountain maintenance, and mineral mining.


Applications

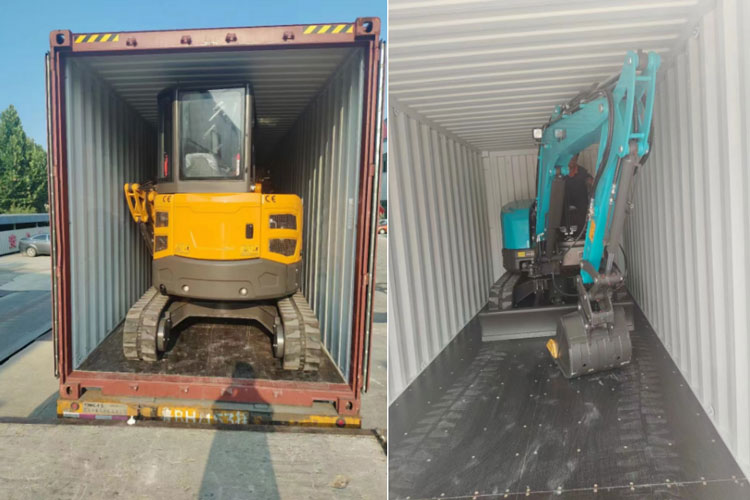

Logistics delivery

The 2.0T tracked excavator can be shipped by sea, land, railway, and other means.

Logistics delivery
