21.5 Tons Big wheel excavation Factory price

1、Adopt a new intelligent control system,with powerful big data analysis and storage functions,timely warning tips

2、Full-time four-wheel drive,walking motor through the gearbox,differential directly drive four wheels,can cope with various situations

3、Reinforced structural parts,more suitable for harsh working conditions,improve durability

Email:Sunny@hoclshine.com

WhatsApp:+8615806625431


Contact Now E-mail Telephone WhatsApp
Product Details

21.5 tons of new generation hydraulic wheel excavator, the use of high power and low fuel consumption of three well-known brand engine, to ensure the strong power and power reserve of the whole machine, efficient hydraulic system and bridge box accurate matching, to ensure that the working state and walking state of the switch, the hydraulic system matching imported hydraulic parts, with coordinated action, high reliability, safety and environmental protection, Comfortable and convenient, and can provide customized requirements according to customer needs, can adapt to the needs of different countries and customers

21.5 Wheel excavator


Product parameter

                                                                Technical Specification
Shipping length9700mm
Total height during transporation3300mm
OverallWidth2490mm
Tail turning radius2750mm
Wheelbase2855mm
Track width1975mm
Turntable ground clearance1240mm
Rear axle ground clearance340L
Fuel tank capacity350L
Hydraulic tank capacity215L

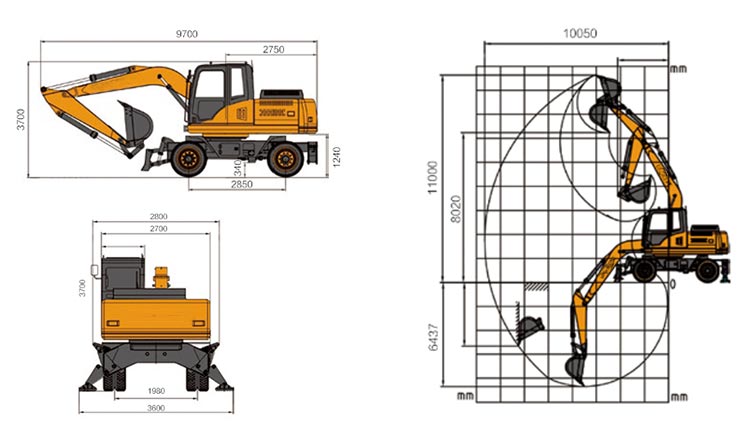

                                                               Working Range and Digging Force
Max.Digging Radius10050mm
Max.DiggingHeight11000mm
Max.DiggingDepth6437mm
Max.Unloading height8020mm
BucketForces152.1kn
ArmForces119.5kn
BucketVolum1.0m3
Travel Speed30km/h
HydraulicSystem Flow2*239L/min
Climbing ability70%

21.5 Big wheel excavator

Product details

21.5 Ton Wheel excavator, Double balance hydraulic suspension system,when the road is not normal,the suspension system can automatically adjust the front axle tilt Angle,So that the driving level,reduce the vehicle jolt,improve comfort

21.5 Ton wheel excavator

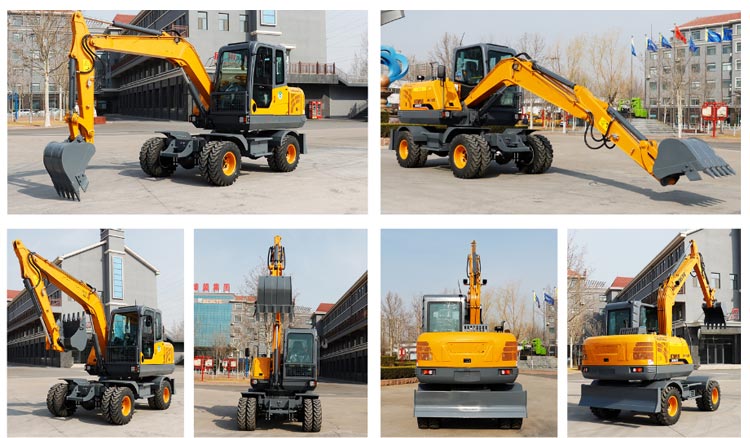

Product muiti-angle display

21.5 Ton wheel excavator

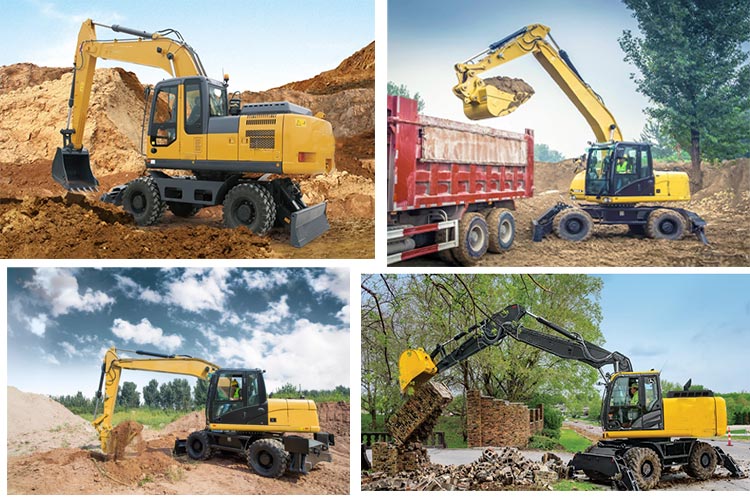

Application scenarios

it has wide range of applications in greenhouses,indoors,landcaping,etc.,such as deepening orchard fertilization,watercourses,planting trees,digging cable trenches,digging water pipes,indoor crushing,etc

21.5 wheel excavator
