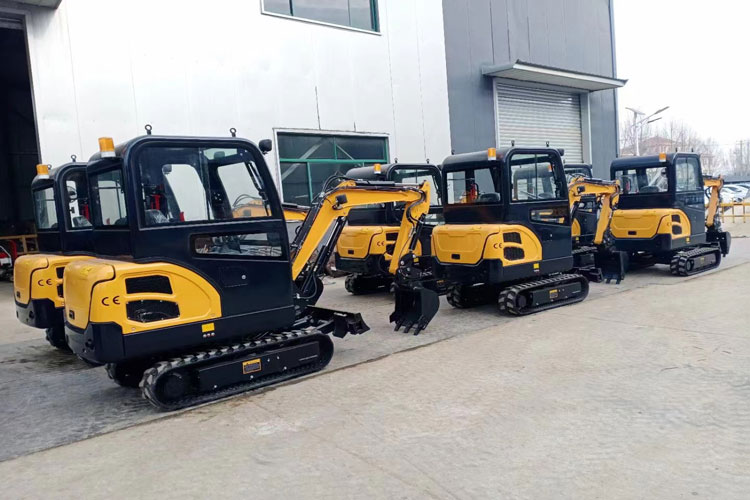

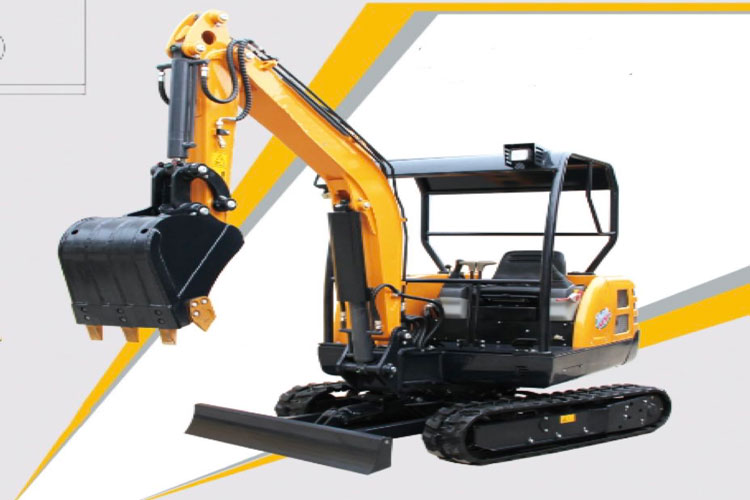

2.2T crawler excavator with large rotation radius

-Bucket capacity: 0.1m ³

-Engine type: Kubota

-Superior performance, high configuration, and low fuel consumption

-Powerful, energy-saving, and fuel-efficient

-Supports OEM, meets environmental standards, and the appearance color can be customized

-Power: 22.1kW (19HP)/2300rpm

-Customization cycle: 25 days

-WhatsApp:+8615806625431

-Email: info@sdshinemachinery.com


Contact Now E-mail Telephone WhatsApp
Product Details

Product Details

The 2.2T crawler excavator has an integral reinforced chassis, robot welding, and weld forming that completely eliminates the influence of human factors. The arc is stable, the melting depth is controllable, and the forming is beautiful. The load sensitive system achieves a perfect match between the engine and the main pump, accurately providing flow, improving work efficiency, and saving fuel and time. It adopts internationally renowned brand engines, which comply with the Euro 5 emission standards, with high torque, strong power, and energy saving.

Product parameter

Performance parameters
Bucket capacity (m³)0.1
Rotation speed (rmp)0-12
Maximum climbing angle (°)30
Maximum digging force of bucket (KN)15.3
Maximum digging force of bucket rod (KN)10.5
Engine model

KUBOTA

Power/speed (KW/rmp)22.1/2300
Tire model-
System pressure (MPa)18

Scope of work
Maximum digging height (mm)3700
Maximum unloading height (mm)2290
Maximum digging depth (mm)2450
Maximum vertical digging depth (mm)2160
Maximum digging radius (mm)4370
Minimum turning radius (mm)2020
Maximum ground clearance of dozer blade (mm)240
Maximum depth of bulldozing board sinking (mm)310
Boom swing angle (left)°70
Boom swing angle (right)°50


Overall size
Overall dimensions length*width*height (mm)4170*1300*2280
Cab height (mm)2280
Wheelbase (mm)1230
Wheel (rail) gauge (mm)1050
Minimum ground clearance (mm)230
Tail turning radius (mm)1180

Applications

The product is widely used for indoor demolition, orchard planting, municipal engineering, greenhouses, land reclamation, nursery trenching and fertilization, pipelines, basement renovation, underground operations, etc.

Applications

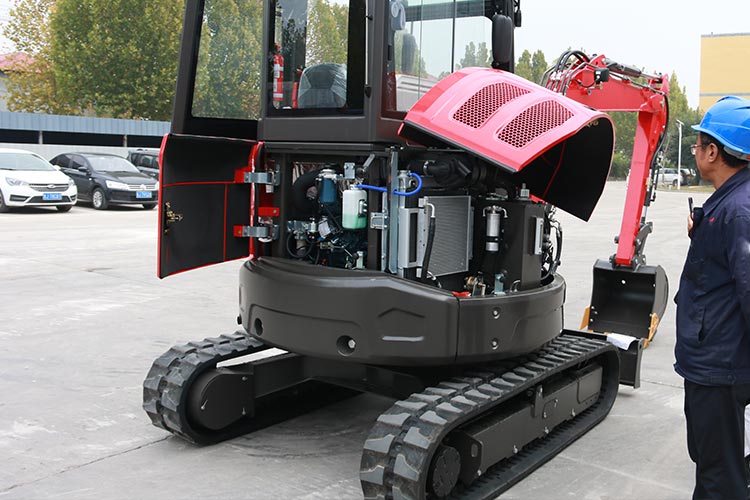

Product display

The 2.2T crawler excavator comes standard with a crushing pipeline, which can be equipped with various attachments such as crushing hammers, scarifiers, wood grabbers, and spiral drills, making it versatile for one machine; Iron and rubber tracks can be interchanged at any time, suitable for various construction conditions, and equipped with a deflection arm, which can easily excavate the wall foot for deflection work

Product display

Loading and delivery

Loading and delivery

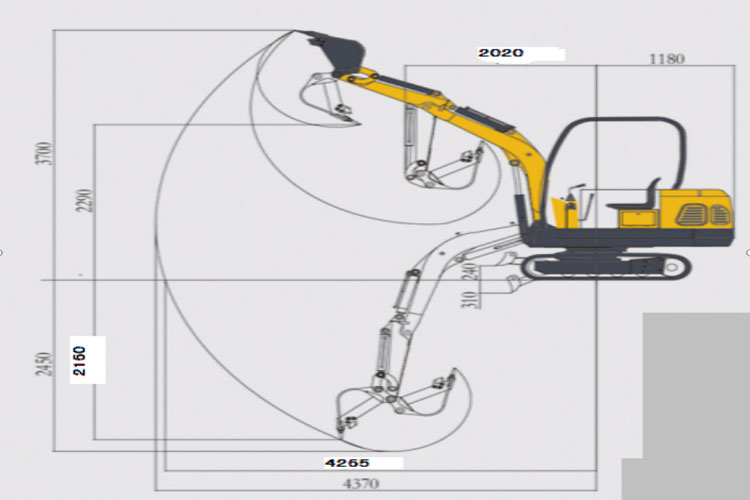

Mechanical drawing

Mechanical drawing

Logistics display

Logistics display
