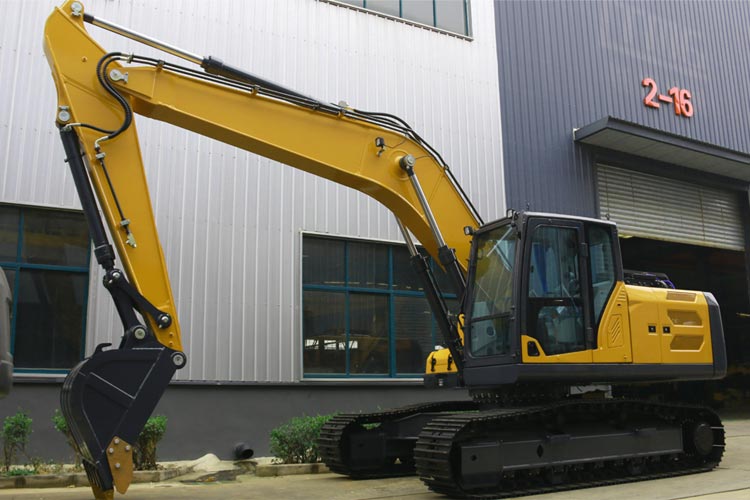

23 Ton Large crawler excavator

  • CUMMINS engine,133Kw/2000rpm

  • KOREA PNM brand pump

  • KOREA PARKER brand valves

  • KOREA PNM brand slewing motor

  • Hydraulic pilot servo operation system

  • Email:Sunny@hoclshine.com

  • WhatsApp:+8615806625431

  Contact Now E-mail Telephone WhatsApp
Product Details

The crawler excavator is an economic middle type excavator,which matched CUMMINS engine with strong power and low noise and low consumption and environment protection.

Adopted imported driving motor and swing motor,Adopted hydraulic pilot servo operation system and hydraulic oil radiator ensure the machine have high working efficiency

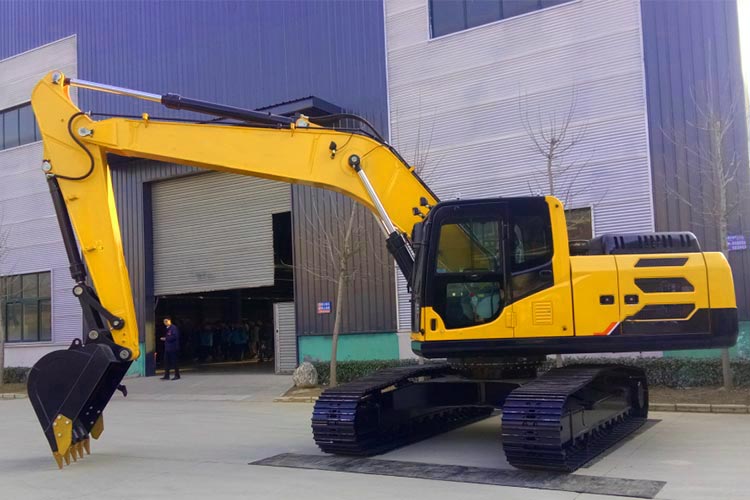

23 tons crawler excavator

Specifications


                                                                Enging
Emission StandardChina stage ||
MakeCUMMINS
Model6BTAA5.9-C178-||
Power/Rotation speed133Kw(178HP)@2000rpm
Number of cylinder6


                                                       Track system
Maximum Travel speed(high/low)5.6/3.3km/h
Width of track shoe600mm
Number of upper roller per side2
Number of bottom roller per side9
                                              Performance parameter
Rock Bucket capacity1.1M3
Swing speed12rpm
Maximum Grade ability30℃
Maximum Bucket digging force150KN
Maximum Arm digging force110KN
Hydraulic system pressure34.3Mpa
Ground pressure46Kpa
Machine weight22500kg
Operation weight23500kg
Fuel tank360L
Hydraulic oil tank220L
Boom length
5700mm
Arm length3800mm

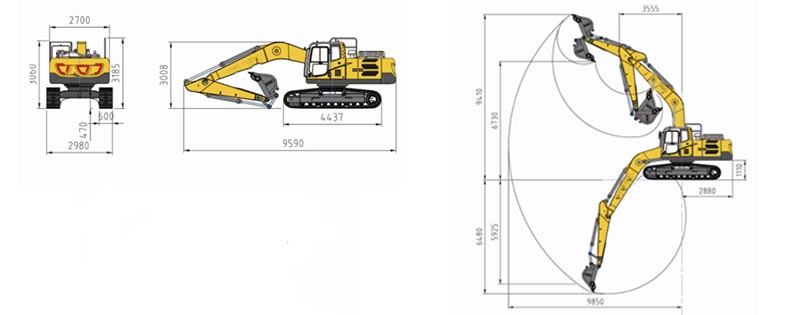

                                                        Machine size
Overall dimension(L*W*H)9600mm*2990mm*3000mm
Height cabin3000mm
Track length on ground(Axle base)3700mm
Track gauge2390mm
Minimum Ground clearance470mm
Min.slewing radius at front work device3555mm
                                                       Working range
Maximum Digging height9410mm
Maximum Dumping height6730mm
Maximum Digging depth6480mm
Maximum Vertical digging depth5925mm
Maximum Digging radius9850mm

23 tons crawler excavator

Product Features

The professional structural parts and working mechanism,ensure the machine has reliability and durability

The breaking pipeline equipped improve the working performance

23 tons crawler excavator
