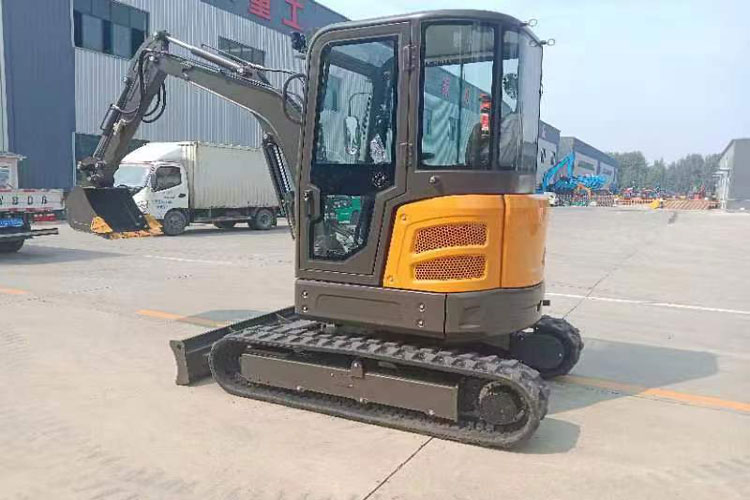

3.0T small tracked excavator with Euro 5

-Engine type: Kubota

-Powerful, energy-saving, and fuel-efficient

-Superior performance, high configuration, and low fuel consumption

-Supports OEM, meets environmental standards, and the appearance color can be customized

-Power: 14kW (19HP) @ 2200rpm

-Bucket capacity: 0.1m ³

-Customization cycle: 25 days

-WhatsApp:+8615806625431

-Email: info@sdshinemachinery.com


  Contact Now E-mail Telephone WhatsApp
Product Details

Product Details

The important hinge parts of the 3.0T crawler excavator bucket rod adopt a forged structure, which can alleviate stress and improve durability by changing the shape and plate thickness. The boom is formed by integral welding, and finally bored by the boring machine and treated with alkane, which can effectively strengthen the robustness of the large and small arms, extend the service life of the pins and sleeves, and avoid welding fracture at the welding point, making it durable. The bucket cutting plates are made of special wear-resistant steel plates, which are suitable for heavy-duty operations. They are equipped with wear-resistant bucket teeth and side teeth to improve the performance of the machine.

Product parameter

Performance parameters
Bucket capacity (m³)0.1
Rotation speed (rmp)10
Maximum climbing angle (°)58
Maximum digging force of bucket (KN)23.5
Maximum digging force of bucket rod (KN)14
Engine modelKUBOTA
Power/speed (KW/rmp)

14kw(19HP)@2200rpm

Tire model-
System pressure (MPa)24

Scope of work
Maximum digging height (mm)4427
Maximum unloading height (mm)3005
Maximum digging depth (mm)2830
Maximum vertical digging depth (mm)2530
Maximum digging radius (mm)4835
Minimum turning radius (mm)2160
Maximum ground clearance of dozer blade (mm)308
Maximum depth of bulldozing board sinking (mm)363
Boom swing angle (left)°69
Boom swing angle (right)°45

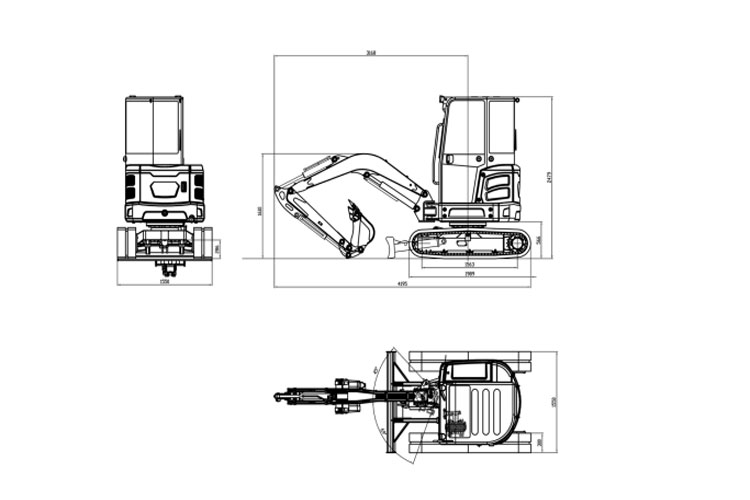

Overall size
Overall dimensions length*width*height (mm)4195*1550*2480
Wheelbase (mm)1565
Wheel (rail) gauge (mm)1250
Minimum ground clearance (mm)286

Boom length(mm)

2200

Product display

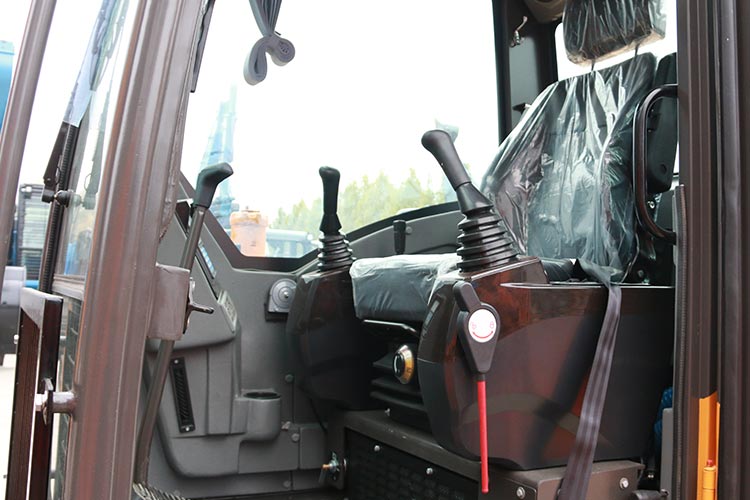

The 3.0T crawler excavator increases the sunroof glass to improve upward visibility and increase ventilation. The doors and windows are made of tempered glass, with a sunshade that prevents direct sunlight. All operating controls are designed and arranged according to ergonomic theory, and the operating handle is easy to control.

Product display

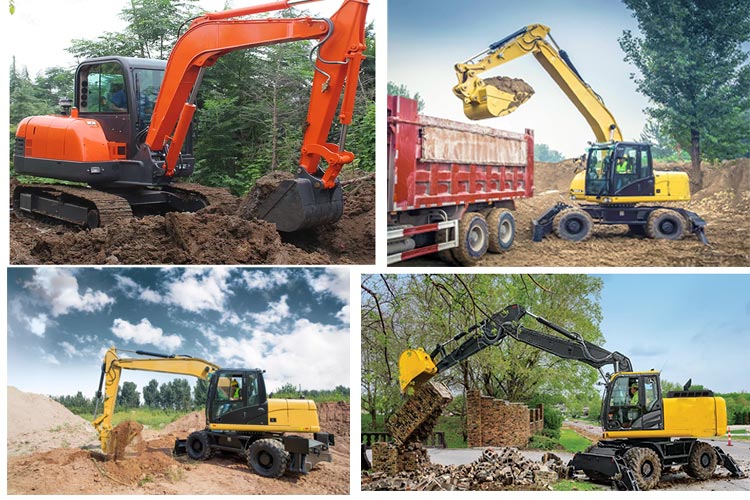

Applications

The product is widely used for indoor demolition, orchard planting, municipal engineering, greenhouses, land reclamation, nursery trenching and fertilization, pipelines, basement renovation, underground operations, etc.

Applications

Structure display

The 3.0T crawler excavator increases the sunroof glass to improve upward visibility and increase ventilation. The doors and windows are made of tempered glass, which is a sunshade to prevent direct sunlight

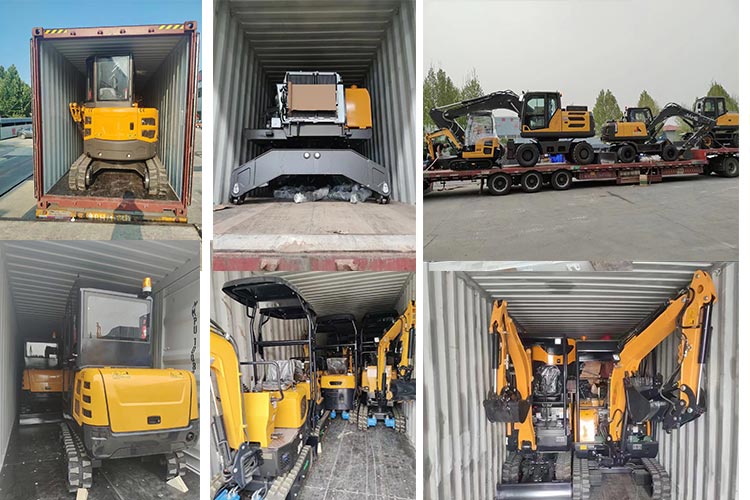

Logistics delivery
