3T tracked excavator easy to transport

-Supports OEM, meets environmental standards, and the appearance color can be customized

-Power: 14kW (19HP) @ 2200rpm

-Customization cycle: 25 days

-Bucket capacity: 0.1m ³

-Superior performance, high configuration, and low fuel consumption

-Engine type: Kubota

-Powerful, energy-saving and fuel-efficient

-WhatsApp:+86 15806625431

-Email: info@sdshinemachinery.com


  Contact Now E-mail Telephone WhatsApp
Product Details

Product Details

The 3T tracked excavator has a compact body and is not limited by the size of the construction space, making it easy to enter small spaces for excavation operations. Not only can it perform excavation operations, but small excavators can also be equipped with breaking hammers, wood grabbers, spiral drills, rakes, etc. to achieve ground and wall breaking, drilling tree pits, and grabbing wood and hay. Small in size, it can be flexibly transferred to different construction sites. No need for large trailers for transportation, ordinary small trucks can complete the transportation. This not only facilitates transportation, but also reduces the transfer cost of small excavators. The price is cheaper, the purchase cost is lower, and the work speed is faster, saving labor.

Product parameter

Performance parameters
Bucket capacity (m³)0.1
Rotation speed (rmp)10
Maximum climbing angle (°)58
Maximum digging force of bucket (KN)23.5
Maximum digging force of bucket rod (KN)14
Engine modelKUBOTA
Power/speed (KW/rmp)

14kw(19HP)@2200rpm

Tire model-
System pressure (MPa)24

Scope of work
Maximum digging height (mm)4427
Maximum unloading height (mm)3005
Maximum digging depth (mm)2830
Maximum vertical digging depth (mm)2530
Maximum digging radius (mm)4835
Minimum turning radius (mm)2160
Maximum ground clearance of dozer blade (mm)308
Maximum depth of bulldozing board sinking (mm)363
Boom swing angle (left)°69
Boom swing angle (right)°45

Overall size
Overall dimensions length*width*height (mm)4195*1550*2480
Wheelbase (mm)1565
Wheel (rail) gauge (mm)1250
Minimum ground clearance (mm)286

Boom length(mm)

2200

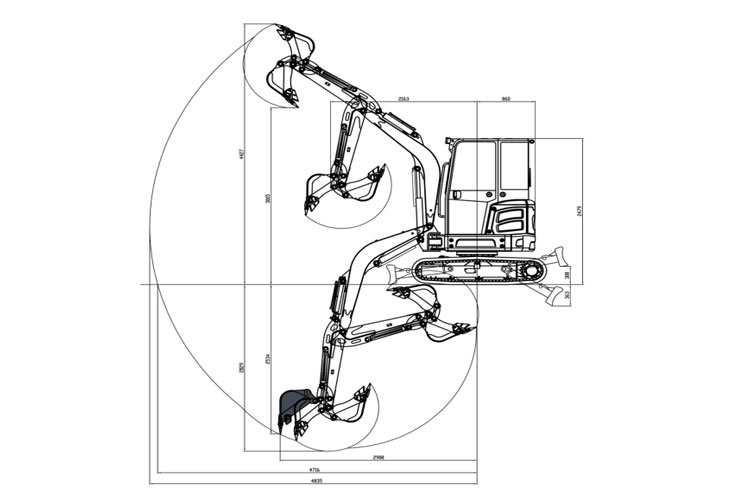

Mechanical drawing

Mechanical drawing

Product display

3T tracked excavators often use components from world-renowned brands, such as Kubota and Schneider.

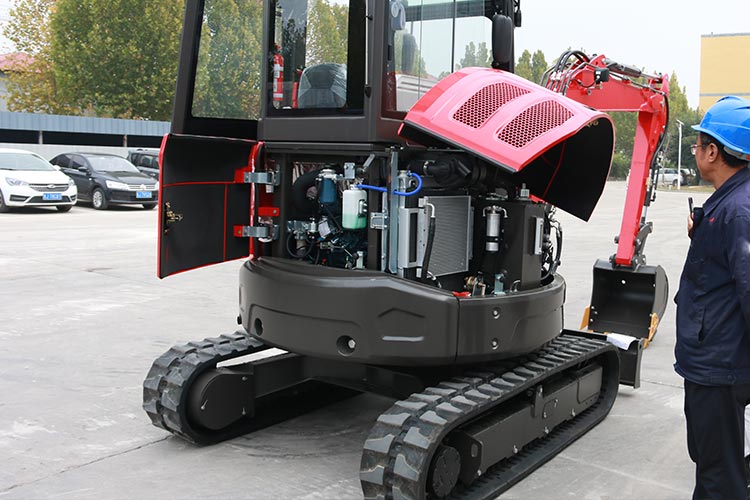

body display

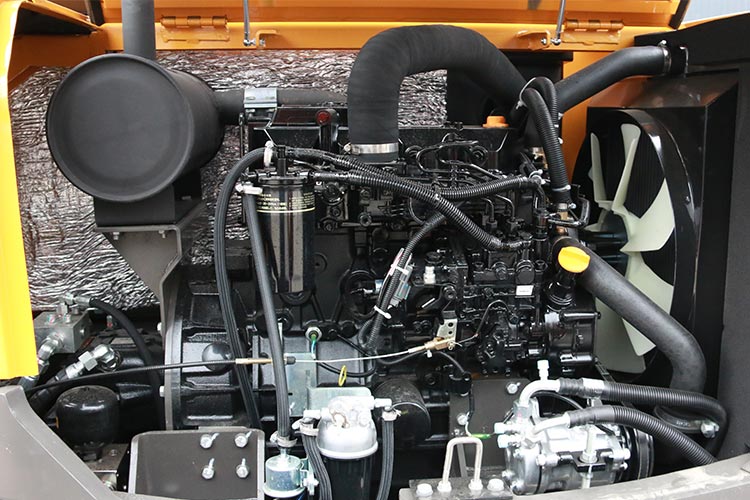

engine

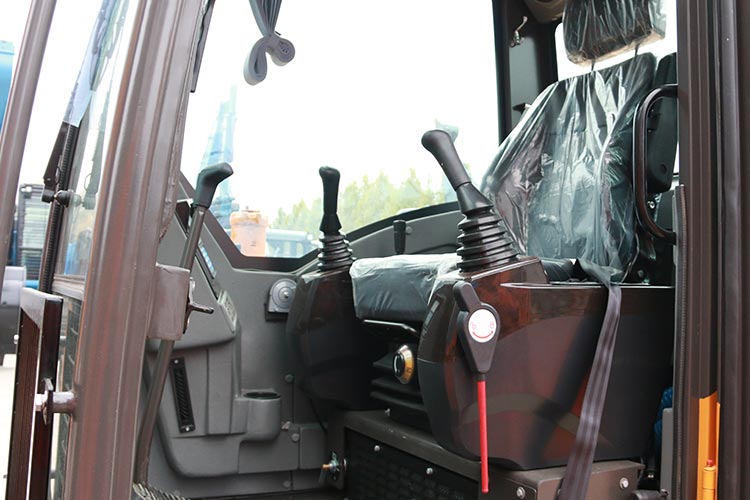

cab

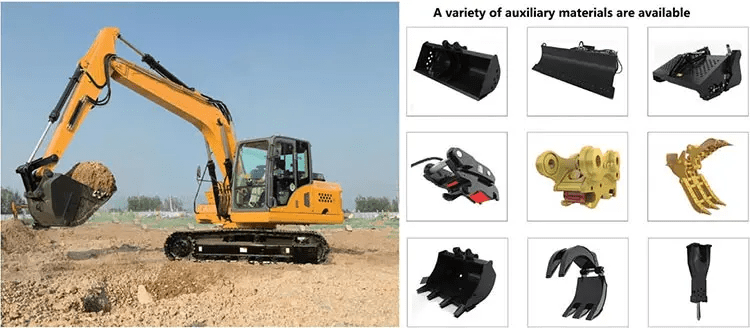

Structural display

Structural display

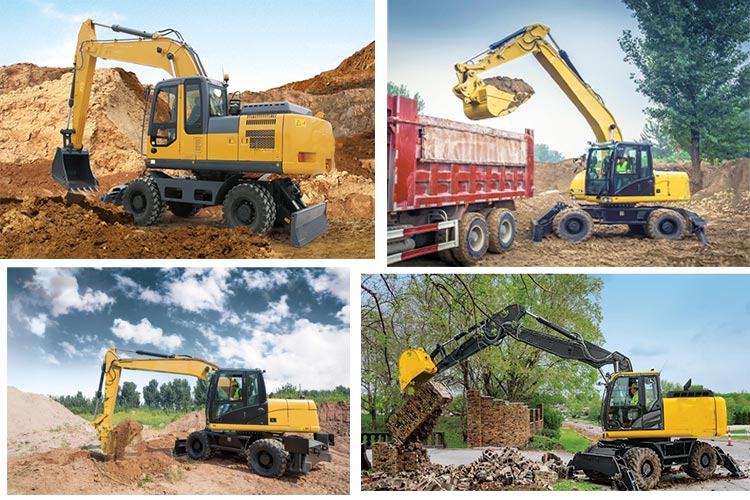

Application Display

3T tracked excavator is widely used for indoor demolition, orchard planting, municipal engineering, greenhouses, land reclamation, nursery trenching and fertilization, pipelines, basement renovation, underground operations, etc.

application

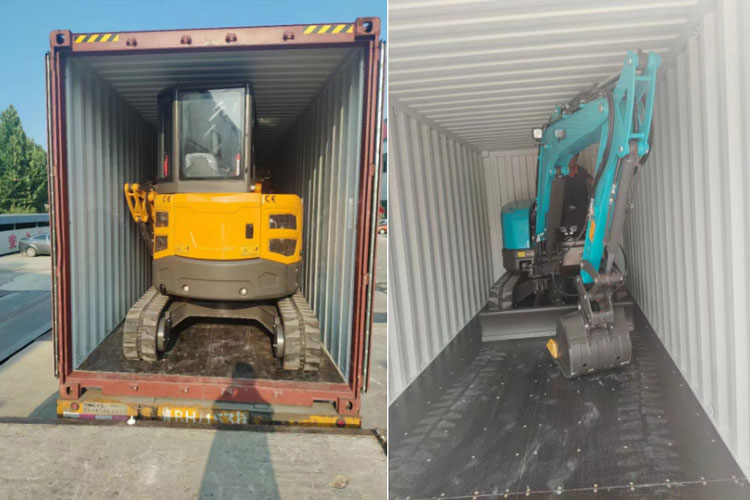

Logistics Display


Logistics Display
