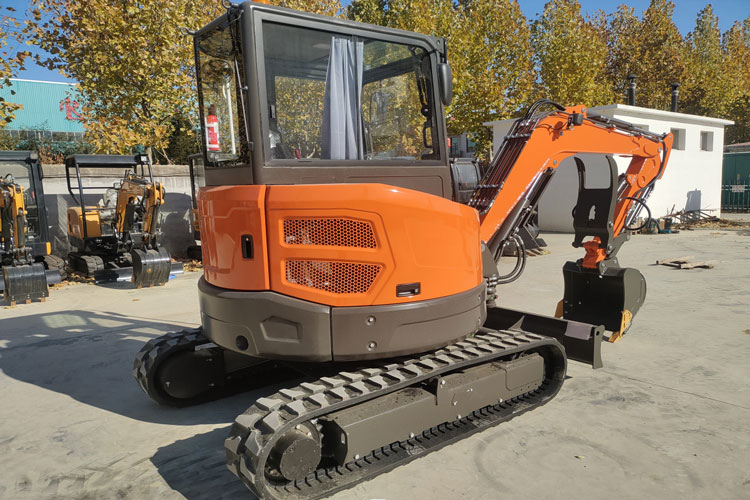

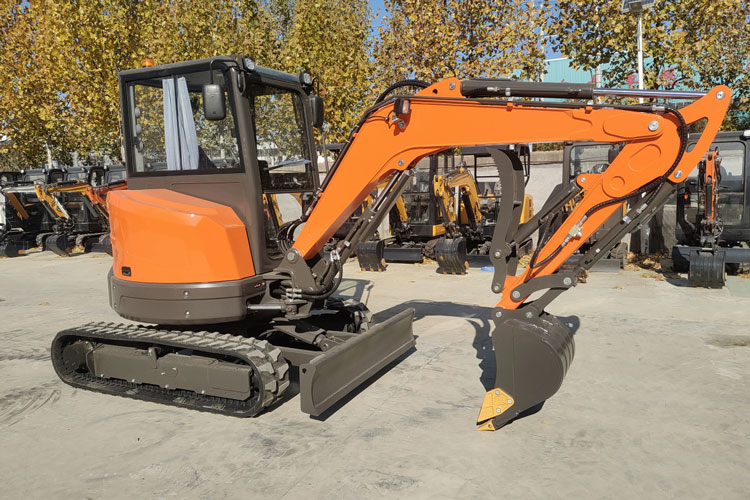

3T tracked excavator fast delivery

-Bucket capacity: 0.1m ³

-Power: 14kW (19HP) @ 2200rpm

-Superior performance, high configuration, and low fuel consumption

-Engine type: Kubota

-Powerful, energy-saving and fuel-efficient

-Supports OEM, meets environmental standards, and the appearance color can be customized

-Customization cycle: 25 days

-WhatsApp:+8615806625431

-Email: info@sdshinemachinery.com

Contact Now E-mail Telephone WhatsApp

Product Details

Product Details

The 3.0Tmini tracked excavator engine can meet Euro5 emission standards. Our company accepts customized products and therefore provides OEM services, which means we can produce excavators according to customer needs. Small excavators can easily move in narrow areas and require some force to separate anything, in order to accommodate all types of mini equipment smoothly. Small excavators generate less surface grinding or scraping during operation. Smaller machines, equipped with rubber tracks, also facilitate transportation. Small devices can be easily moved with the help of small trucks. Mini and micro excavators are easy to move and eliminate expensive logistics costs.

Product parameter

Performance parameters
Bucket capacity (m³)	0.1
Rotation speed (rmp)	10
Maximum climbing angle (°)	58
Maximum digging force of bucket (KN)	23.5
Maximum digging force of bucket rod (KN)	14
Engine model	KUBOTA
Power/speed (KW/rmp)	14kw(19HP)@2200rpm
Tire model	-
System pressure (MPa)	24

Scope of work
Maximum digging height (mm)	4427
Maximum unloading height (mm)	3005
Maximum digging depth (mm)	2830
Maximum vertical digging depth (mm)	2530
Maximum digging radius (mm)	4835
Minimum turning radius (mm)	2160
Maximum ground clearance of dozer blade (mm)	308
Maximum depth of bulldozing board sinking (mm)	363
Boom swing angle (left)°	69
Boom swing angle (right)°	45

Overall size
Overall dimensions lengthwidthheight (mm)	419515502480
Wheelbase (mm)	1565
Wheel (rail) gauge (mm)	1250
Minimum ground clearance (mm)	286
Boom length（mm）	2200

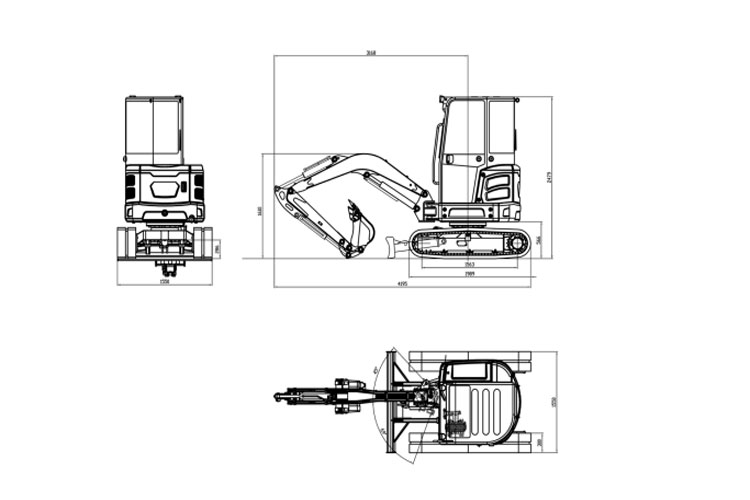

Mechanical drawings

The 3.0Tmini tracked excavator adopts a compact design, making operation more convenient.

Mechanical drawings

Product display

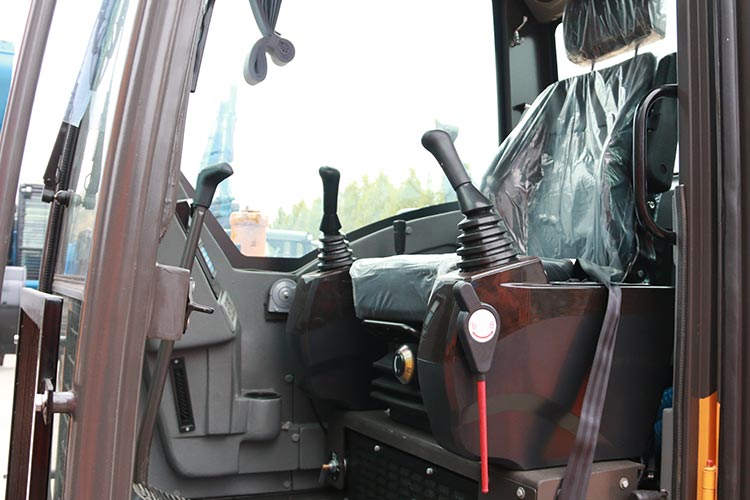

The 3.0Tmini tracked excavator has a more spacious cab and a clearer view.

pilothouse

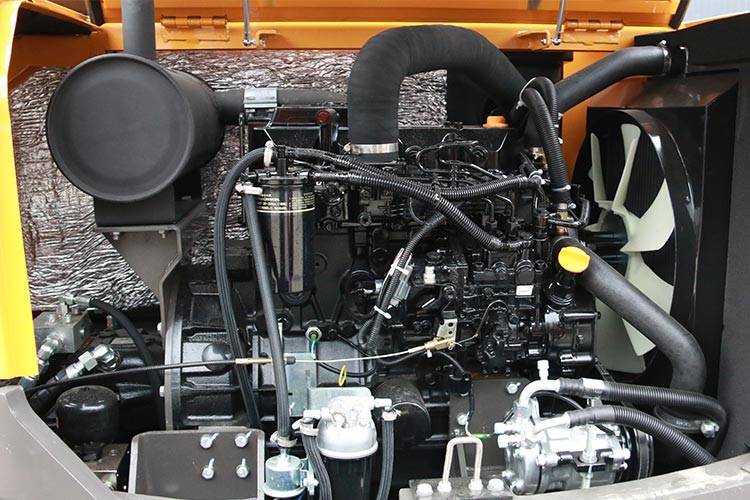

The engine of the 3.0T tracked excavator complies with Euro 5 emission standards.

Engine

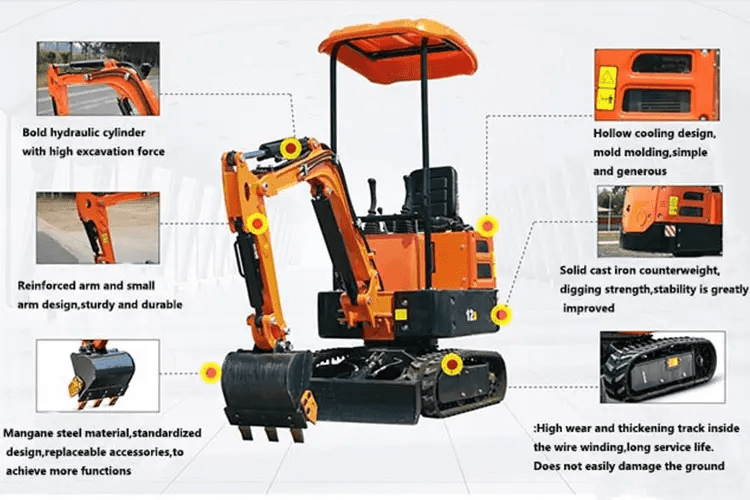

Structural display

Applications

The product is widely used for indoor demolition, orchard planting, municipal engineering, greenhouses, land reclamation, nursery trenching and fertilization, pipelines, basement renovation, underground operations, etc.
