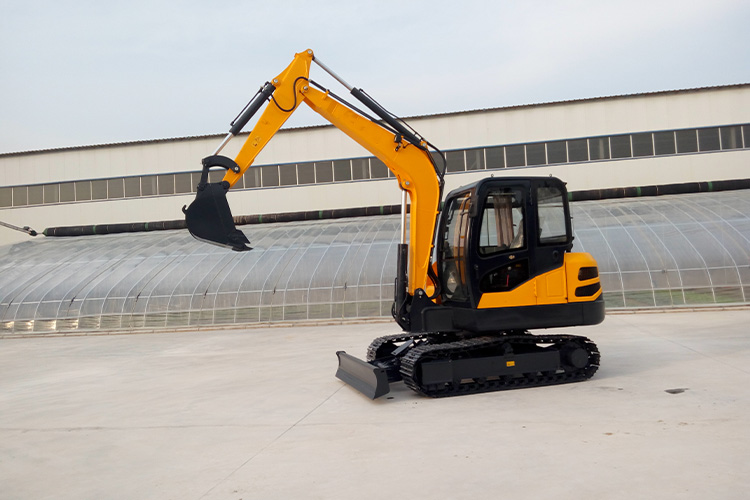

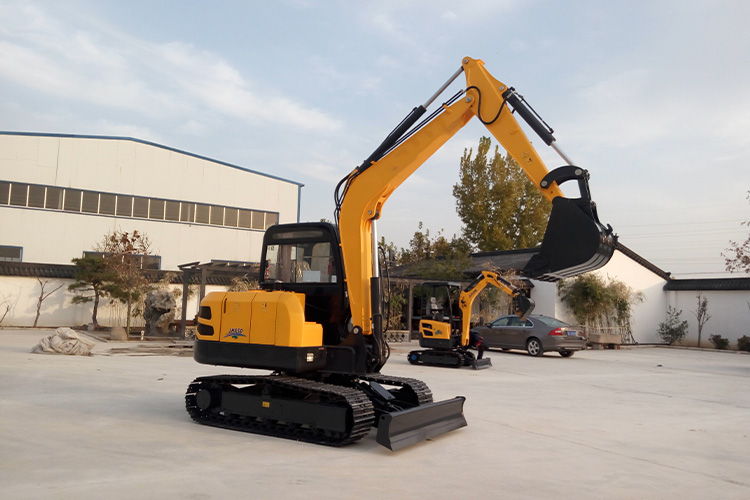

6.5Ton Mini crawler excavator from China

Engine: KUBOTAD

Source factory, can accept OEM

Power /Rotation speed: 43kw/2000rpm

Contact:

whatsapp:+86 15806625431

E-mail: info@sdshinemachinery.com

Contact Now E-mail Telephone WhatsApp

Product Details

product feature

Installed luxury full seal cabin with A/C and LCD display etc.

parts display

Adopted hydraulic pilot servo operation system and hydraulic oil radiator, ensure the machine have high working efficiency

The professional structural parts and working mechanism ,

The breaking pipeline equipped improve the working performance . ensure the machine can comfortable operation and convenient maintenance.

ENGINE
Emission Standard	Euro 5/EPA4
Make /Model	KUBOTA/V2607
Power /Rotation speed	43kw@2000rpm
Number of cylinder	4
TRACK SYSTEM
Maximum Travel speed	2.4/4.3 km/h
Width of track shoe	400mm
Number of track shoe per side	40pcs
Number of upper roller per side	1
Number of bottom roller per side	5
PERFORMANCE PARAMETER
Standard Bucket capacity	0.21m³
Swing speed	11rpm
Maximum Grade ability	35°
Maximum Bucket digging force	48KN
Maximum Arm digging force	35KN
Hydraulic system pressure	28Mpa
Machine weight	6100kg
Fuel tank	87L
Hydraulic oil tank	100L
MACHINE SIZE
*Overall dimension (LWH)*	*5940mm1880mm2570mm*
Height of cabin	2600mm
Track length on ground(Axle base)	1990mm
Track gauge	1480mm
Minimum Ground clearance	353mm
Swing radius at tail	1689mm
WORKING RANGE
Maximum Digging height	5499mm
Maximum Dumping height	3845mm
Maximum Digging depth	3808mm
Maximum Vertical digging depth	2983mm
Maximum Digging radius	6128mm
Minimum swing radius	2607mm
Maximum Lifting height of blade	376mm
Maximum Cutting depth of blade	474mm

product feature

• Adopt advanced turbocharging technology to enhance the plateau adaptability of the machine;

• Unique funnel mouth fan cover, greatly improve the engine air intake and system heat dissipation capacity, to ensure continuous and efficient operation of the machine.

parts display

• Advanced hydraulic system

• High-end configuration: main pump, main valve, rotary motor, walking motor, cylinder, pilot control valve and other components are all adopted international well-known brands to ensure the quality of products.

• Integrates the latest research results to reduce energy consumption, improve design, and respond faster.
