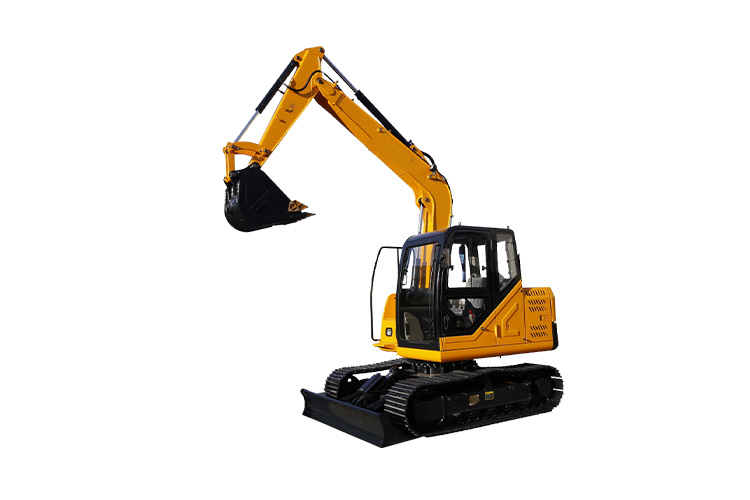

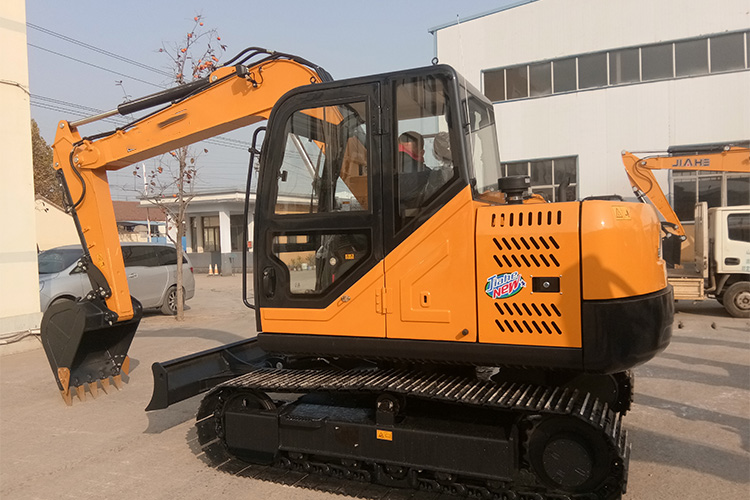

7.5Ton mini crawler excavator Sold well

Engine: KUBOTAD

Source factory, can accept OEM

Power /Rotation speed: 43kw(59HP)@2000rpm







Contact:

whatsapp:+86 15806625431

E-mail: info@sdshinemachinery.com



  Contact Now E-mail Telephone WhatsApp
Product Details

Product features and details

75 excavator super configuration Excellent performance Import configuration Domestic price Domestic brand engine, strong power, to meet the requirements of efficient operation. Precise matching design and advanced energy saving control make the machine less fuel consumption. The use of new cooling fans and large silencers makes the machine less noisy; The use of advanced turbocharging technology to enhance the plateau adaptability of the machine; The unique funnel mouth fan cover greatly improves the air intake of the engine and the ability of the system to dissipate heat, ensuring continuous and efficient operation of the machine. Advanced hydraulic system.

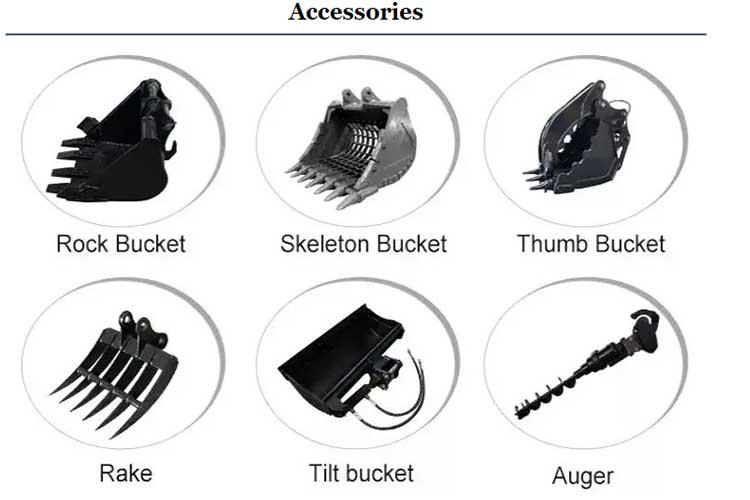

parts display

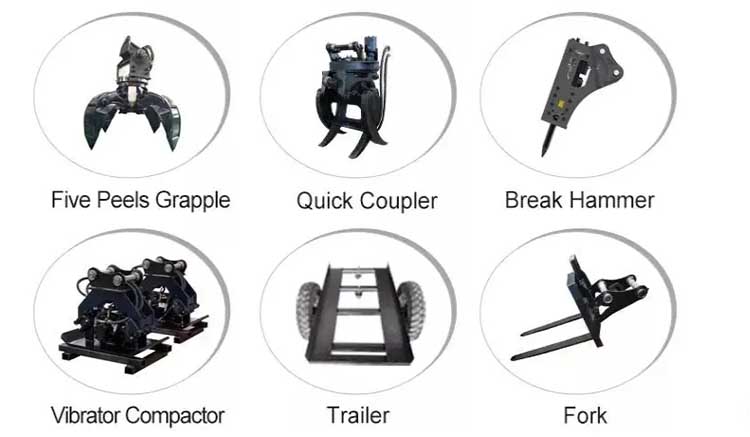

parts display


technical specification

 Increase skylight glass to improve upward visibility and increase ventilation. Doors and Windows are made of tempered glass to prevent direct sunlight;


ENGINE

Emission Standard

EURO 5/EPA4

Make /Model

KUBOTA/V2607

Power /Rotation speed

43kw(59HP)@2000rpm

Number of cylinder

4

TRACK SYSTEM

Maximum Travel speed

2.5/4.5km/h

Width of track shoe

450mm

Number of track shoe per side

39pcs

Number of upper roller per side

1

Number of bottom roller per side

5

PERFORMANCE PARAMETER

Standard Bucket capacity

0.28m³

Swing speed

11rpm

Maximum Grade ability

35°

Maximum Bucket digging force

56KN

Maximum Arm digging force

38KN

Hydraulic system pressure

27Mpa

Machine weight

7500kg

Fuel tank

120L

Hydraulic oil tank

100L

MACHINE SIZE

Overall dimension (L*W*H)

6054mm*2216mm*2672mm

Height of cabin

2672mm

Track length on ground(Axle base)

2209mm

Track gauge

1745mm

Minimum Ground clearance

375mm

Swing radius at tail

1730mm

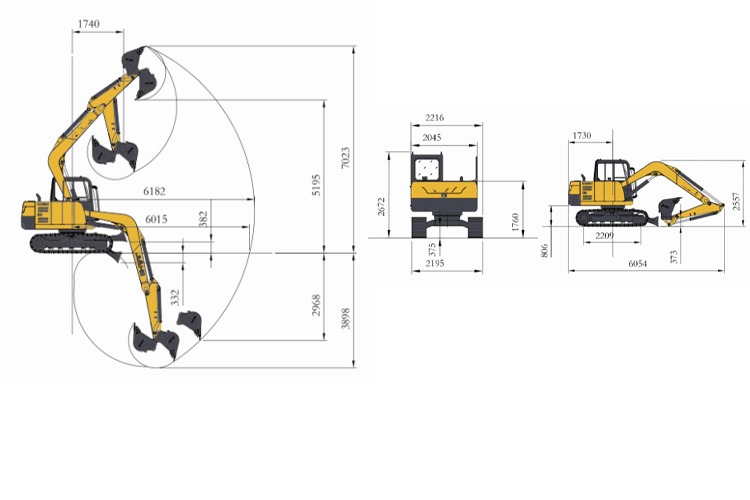

WORKING RANGE

Maximum Digging height

7023mm

Maximum Dumping height

5195mm

Maximum Digging depth

3898mm

Maximum Vertical digging depth

2968mm

Maximum Digging radius

6182mm

Minimum swing radius

1740mm

Maximum Lifting height of blade

382mm

Maximum Cutting depth of blade

332mm

Factory office environment

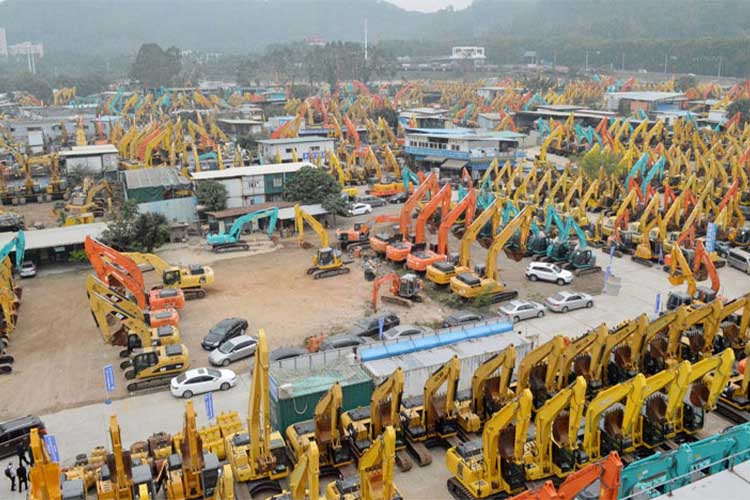

body display


qualifications



customer visits
