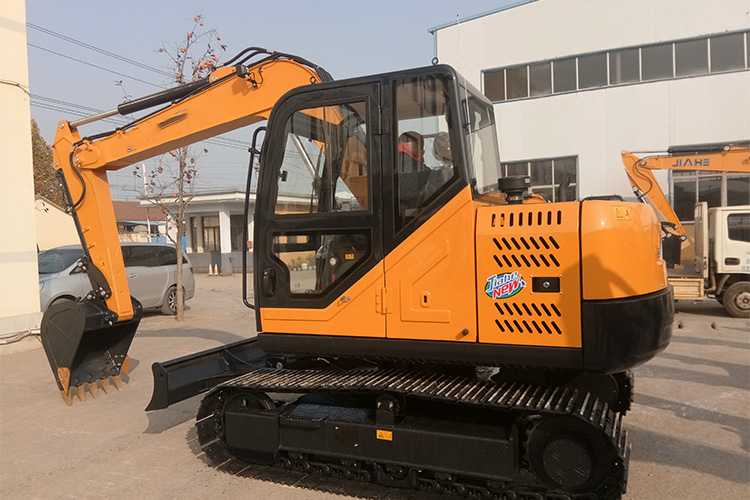

7.5Ton Mini crawler excavator
Engine: KUBOTAD
Source factory, can accept OEM
Power /Rotation speed: 43kw(59HP)@2000rpm
Contact:
whatsapp:+86 15806625431
E-mail: info@sdshinemachinery.com
product presentation
ENGINE | |
Emission Standard | EURO 5/EPA4 |
Make /Model | KUBOTA/V2607 |
Power /Rotation speed | 43kw(59HP)/2000rpm |
Number of cylinder | 4 |
TRACK SYSTEM | |
Maximum Travel speed | 2.5/4.5km/h |
Width of track shoe | 450mm |
Number of track shoe p er side | 39pcs |
Number of upper roller per side | 1 |
Number of bottom roller per side | 5 |
PERFORMANCE PARAMETER | |
Standard Bucket capacity | 0.28m³ |
Swing speed | 11rpm |
Maximum Grade ability | 35° |
Maximum Bucket digging force | 56KN |
Maximum Arm digging force | 38KN |
Hydraulic system pressure | 27Mpa |
Machine weight | 7500kg |
Fuel tank | 120L |
Hydraulic oil tank | 100L |

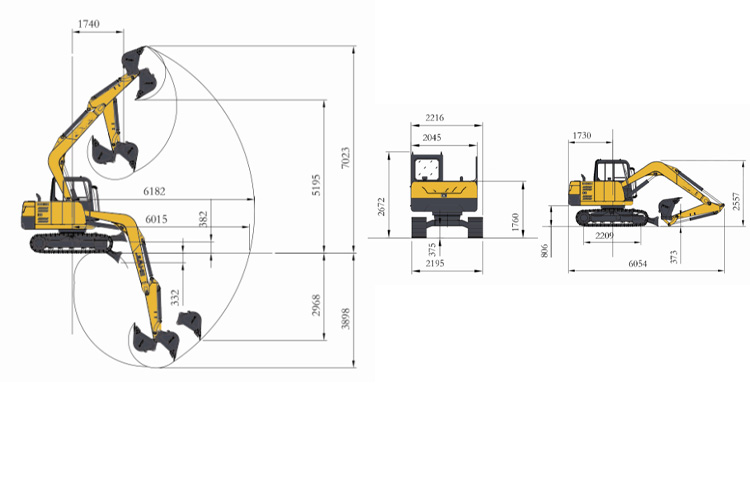

MACHINE SIZE | |
Overall dimension (L*W*H) | 6054mm*2216mm*2672mm |
Height of cabin | 2672mm |
Track length on ground(Axle base) | 2209mm |
Track gauge | 1745mm |
Minimum Ground clearance | 375mm |
Swing radius at tail | 1730mm |
WORKING RANGE | |
Maximum Digging height | 7023mm |
Maximum Dumping height | 5195mm |
Maximum Digging depth | 3898mm |
Maximum Vertical digging depth | 2968mm |
Maximum Vertical digging depth | 6182mm |
Minimum swing radius | 1740mm |
Maximum Lifting height of blade | 382mm |
Maximum Cutting depth of blade | 332mm |
product feature
▲The professional structural parts and working mechanism , ensure the machine has reliability and durability .
▲The breaking pipeline equipped improve the working performance .

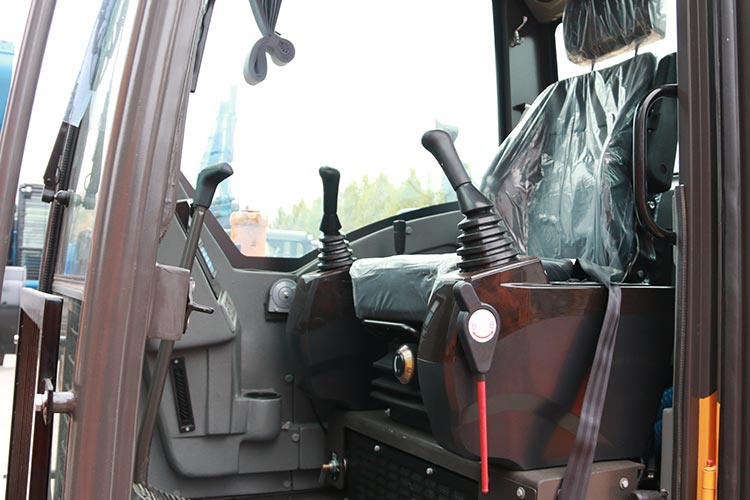

▲Installed luxury full seal cabin with A/C and LCD display and LED lights etc.
▲ The humanized design , ensure the machine can comfortable operation and convenient maintenance.
show details
Packaging and logistics
Successfully shipped to United Arab Emirates
customer feedback
