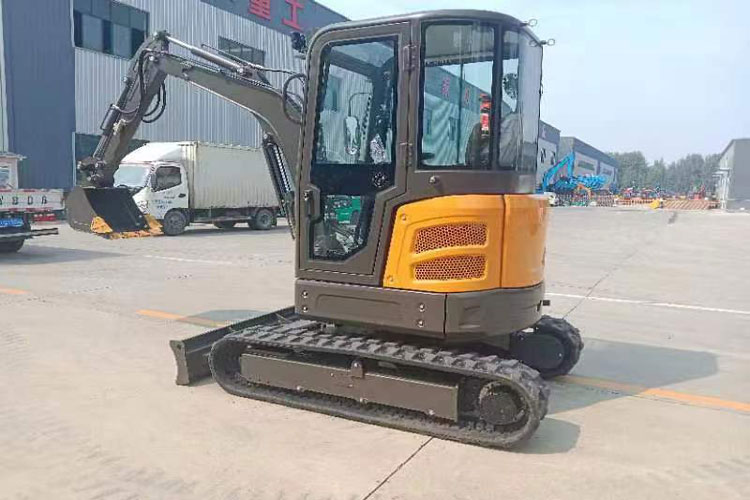

3.0T crawler excavator with practical model

-Powerful, energy-saving, and fuel-efficient

-Superior performance, high configuration, and low fuel consumption

-Supports OEM, meets environmental standards, and the appearance color can be customized

-Engine type: Kubota

-Power: 14kW (19HP) @ 2200rpm

-Bucket capacity: 0.1m ³

-Customization cycle: 25 days

-WhatsApp:+8615806625431

-Email: info@sdshinemachinery.com


  Contact Now E-mail Telephone WhatsApp
Product Details

Product Details

The 3.0T crawler excavator has a multifunctional LCD monitor with a large screen and digital display, which comprehensively monitors the working status of the engine (such as speed, water temperature, oil pressure, etc.). Various operating information of the machine can be queried at any time. The function switches are centrally arranged on the control panel and can be easily selected through touch buttons. The load sensitive system achieves a perfect match between the engine and the main pump, accurately providing flow, improving work efficiency, and saving fuel and time.

Product parameter

Performance parameters
Bucket capacity (m³)0.1
Rotation speed (rmp)10
Maximum climbing angle (°)58
Maximum digging force of bucket (KN)23.5
Maximum digging force of bucket rod (KN)14
Engine modelKUBOTA
Power/speed (KW/rmp)

14kw(19HP)@2200rpm

Tire model-
System pressure (MPa)24

Scope of work
Maximum digging height (mm)4427
Maximum unloading height (mm)3005
Maximum digging depth (mm)2830
Maximum vertical digging depth (mm)2530
Maximum digging radius (mm)4835
Minimum turning radius (mm)2160
Maximum ground clearance of dozer blade (mm)308
Maximum depth of bulldozing board sinking (mm)363
Boom swing angle (left)°69
Boom swing angle (right)°45

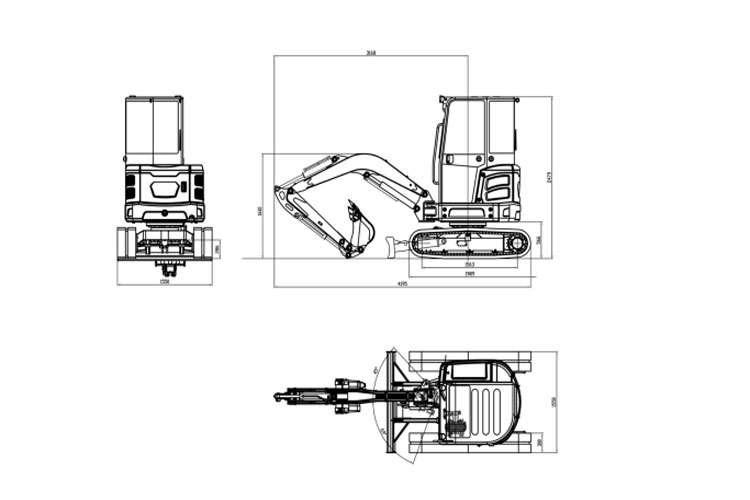

Overall size
Overall dimensions length*width*height (mm)4195*1550*2480
Wheelbase (mm)1565
Wheel (rail) gauge (mm)1250
Minimum ground clearance (mm)286

Boom length(mm)

2200

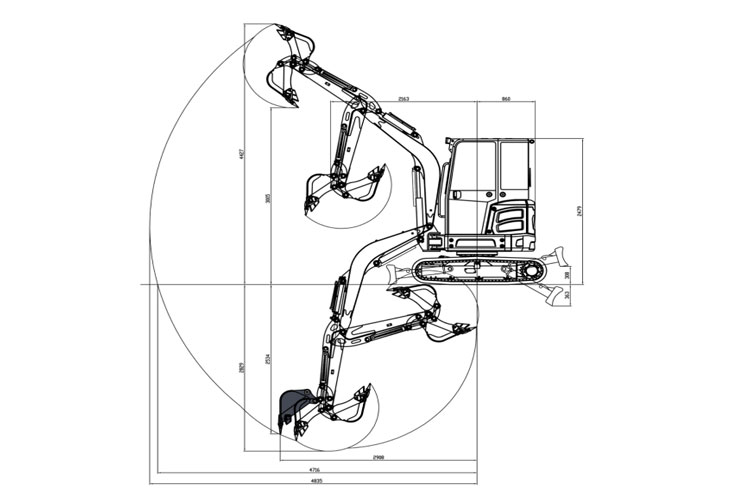

Mechanical drawing


Mechanical drawing

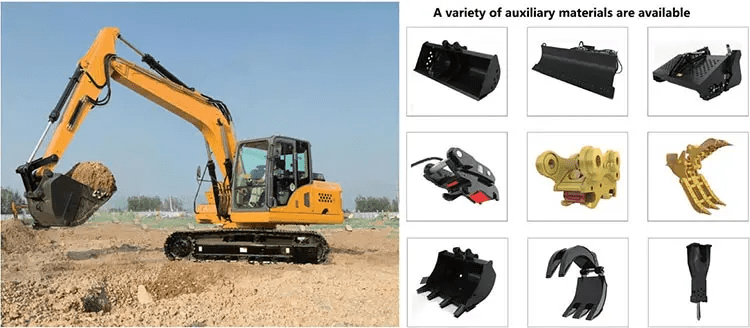

Structural principle

Structural principle

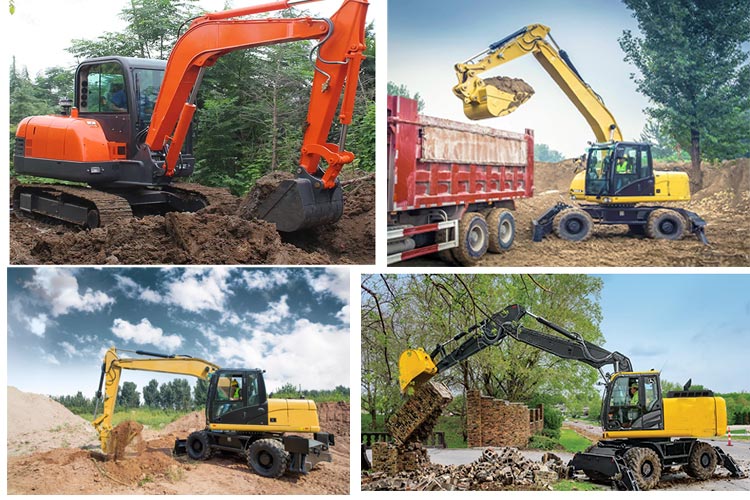

Applications

The product is widely used for indoor demolition, orchard planting, municipal engineering, greenhouses, land reclamation, nursery trenching and fertilization, pipelines, basement renovation, underground operations, etc.

Applications
