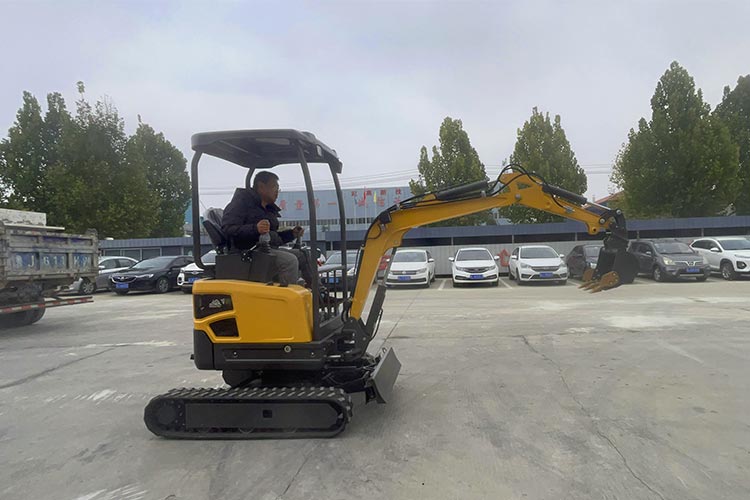

1T crawler excavator with Excellent reputation

-Supports OEM, meets environmental standards, and the appearance color can be customized

-Superior performance, high configuration, and low fuel consumption

-Powerful, energy-saving, and fuel-efficient

-Engine type: Kubota

-Power: 7kw/3000rpm

-Bucket capacity: 0.023m ³

-Customization cycle: 25 days

-WhatsApp:+8615806625431


  Contact Now E-mail Telephone WhatsApp
Product Details

Product Details

The important hinge parts of the bucket rod of a 1T tracked excavator adopt a forged structure, which can alleviate stress and improve durability by changing the shape and plate thickness. The design of improving the cross-sectional shape of the track frame reduces soil accumulation, makes the carrier roller less prone to wear, and improves the durability of the machine.Crawler excavators cannot be used on highways, but they can work in muddy areas without getting stuck. From the appearance, the model of crawler excavators is significantly different from wheeled excavators, with generally larger individual and self weight, and relatively higher efficiency. In addition, because the crawlers are all metal products, they can also be competent in mines or areas with harsh working conditions, and have stronger off-road capabilities, Its disadvantage is that compared to wheeled excavators, it has a higher investment, poor mobility, and a higher design speed of only 5-7km/h. Long distance movement still relies on trailer trucks.

Product parameter

Performance parameters
Bucket capacity (m³) 0.023
Rotation speed (rmp)0-13
Maximum climbing angle (°)30
Maximum digging force of bucket (KN)72
Maximum digging force of bucket rod (KN) 4.6
Engine model        KUBOTA
Power/speed (KW/rmp) 7/3000
Tire model                -
System pressure (MPa)               16

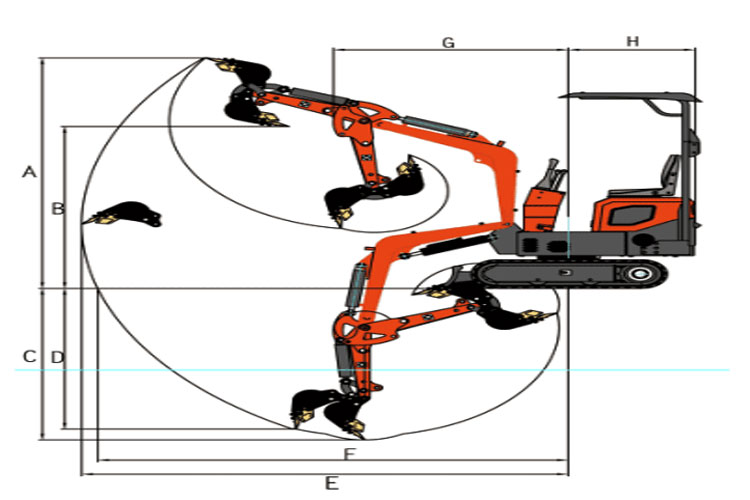

Scope of work


Maximum digging height (mm)2600
Maximum unloading height (mm)2385
Maximum digging depth (mm)1715
Maximum vertical digging depth (mm)1590
Maximum digging radius (mm)3065
Minimum turning radius (mm)1480


Overall size
Overall dimensions length*width*height (mm)2840*880*2220
Cab height (mm)            2220
Wheelbase (mm)             900
Wheel (rail) gauge (mm)             660
Minimum ground clearance (mm)132
Tail turning radius (mm)             800

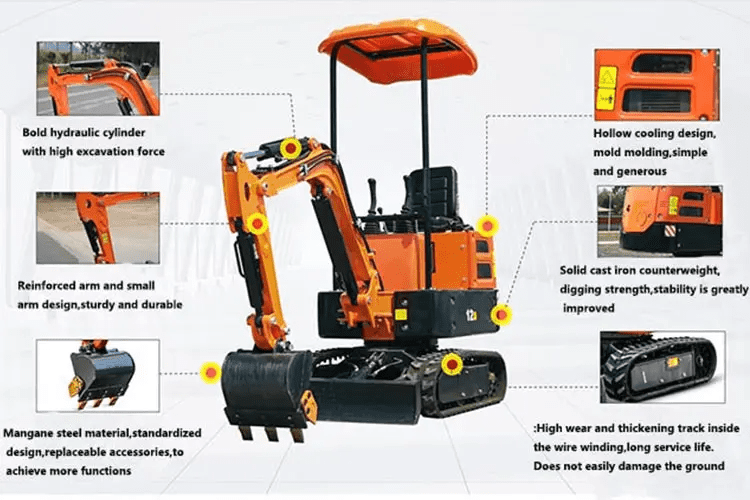

Product display


1T crawler excavator oil cylinder with buffering function: boom oil cylinder and stick oil cylinder, bucket oil cylinder design with buffering, can reduce machine vibration and impact, reduce noise, and extend oil cylinder life

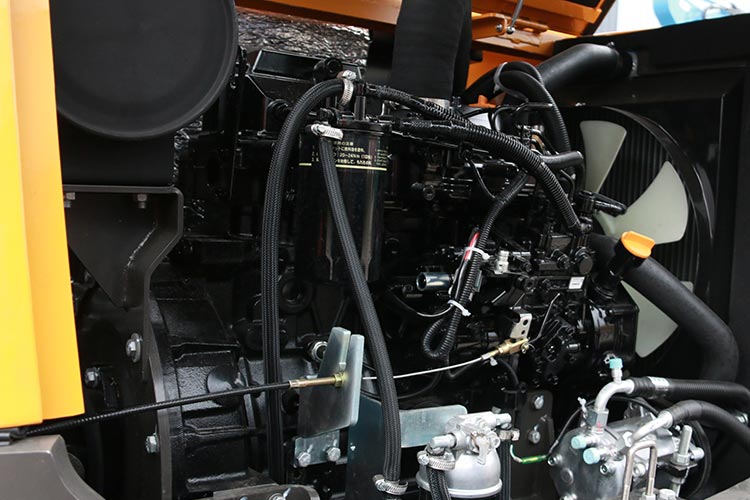

Core components

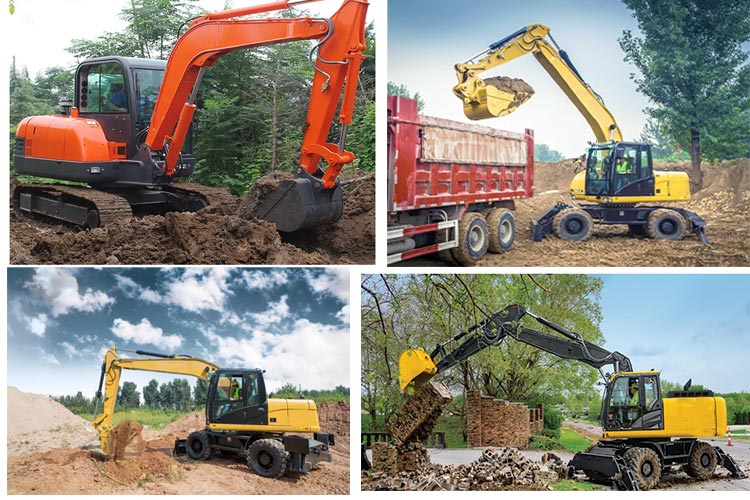

Applications

The product is widely used for indoor demolition, orchard planting, municipal engineering, greenhouses, land reclamation, nursery trenching and fertilization, pipelines, basement renovation, underground operations, etc.

Applications

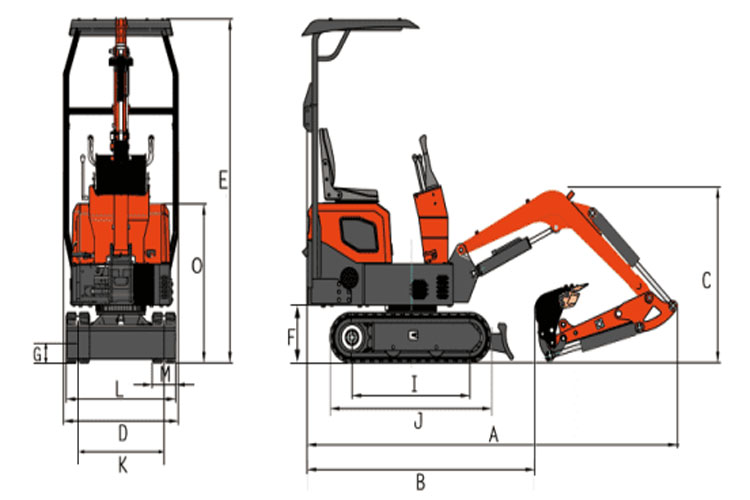

Mechanical drawing
