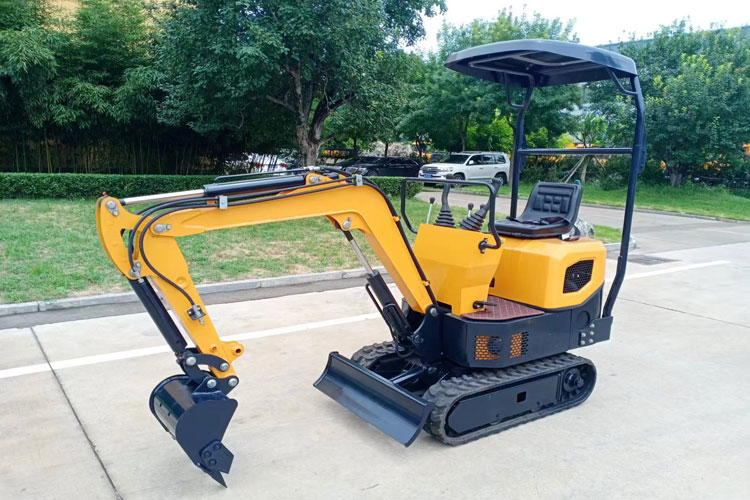

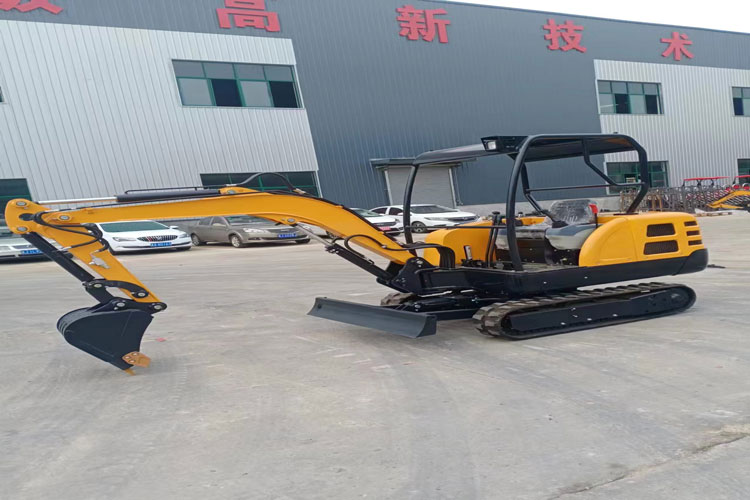

1.5T crawler excavator good traction

-Power: 10.2kw/2500rpm

-Supports OEM, meets environmental standards, and the appearance color can be customized

-Powerful, energy-saving and fuel-efficient

-Superior performance, high configuration, and low fuel consumption

-Engine type: Kubota

-Bucket capacity: 0.025m ³

-Customization cycle: 25 days

-WhatsApp:+8615806625431

-Email: info@sdshinemachinery.com

Contact Now E-mail Telephone WhatsApp

Product Details

Product Details

Due to its track and chassis system design, heavy weight, and large footprint, the 1.5T tracked excavator typically provides better traction on slopes, loose soil, and uneven terrain. Can complete homework in multiple scenarios.

Product parameter

Performance parameters
Bucket capacity (m³)	0.025
Rotation speed (rmp)	14
Maximum climbing angle (°)	30
Maximum digging force of bucket (KN)	9
Maximum digging force of bucket rod (KN)	5.5
Engine model	KUBOTA
Power/speed (KW/rmp)	10.2/2500
Tire model	-
System pressure (MPa)	20

Scope of work
Maximum digging height (mm)	2955
Maximum unloading height (mm)	2077
Maximum digging depth (mm)	2017
Maximum vertical digging depth (mm)	1610
Maximum digging radius (mm)	3529
Minimum turning radius (mm)	1720
Maximum ground clearance of dozer blade (mm)	236
Maximum depth of bulldozing board sinking (mm)	229
Boom swing angle (left)°	50
Boom swing angle (right)°	52

Overall size
Overall dimensions lengthwidthheight (mm)	386510502270
Cab height (mm)	2270
Wheelbase (mm)	1230
Wheel (rail) gauge (mm)	820
Minimum ground clearance (mm)	210
Tail turning radius (mm)	1125

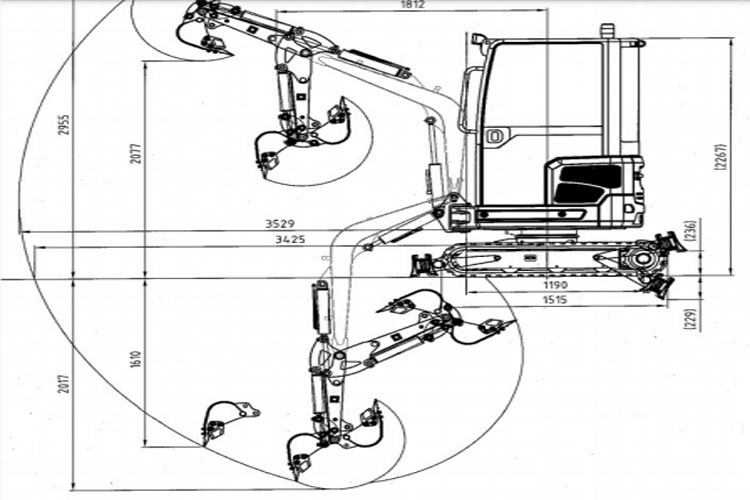

Mechanical drawing

Product display

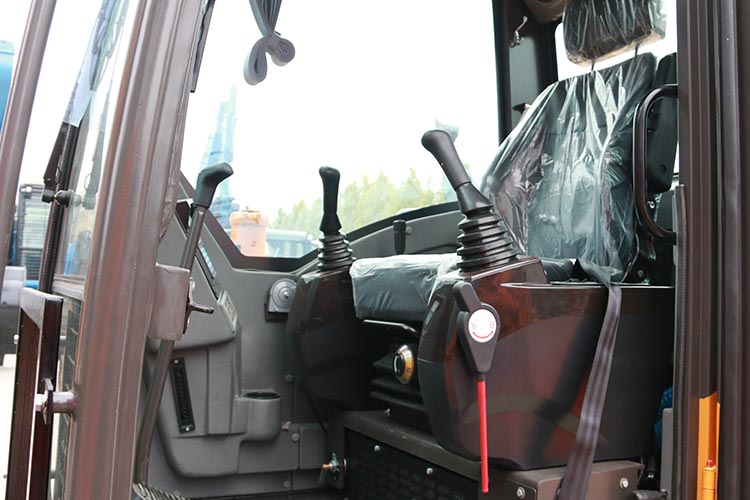

The comfortable safety seat of the 1.5T tracked excavator based on human bionics has a triple comfort structure, adjustable front and rear anti fatigue settings, and also includes a safety belt and comfort pilot control device.

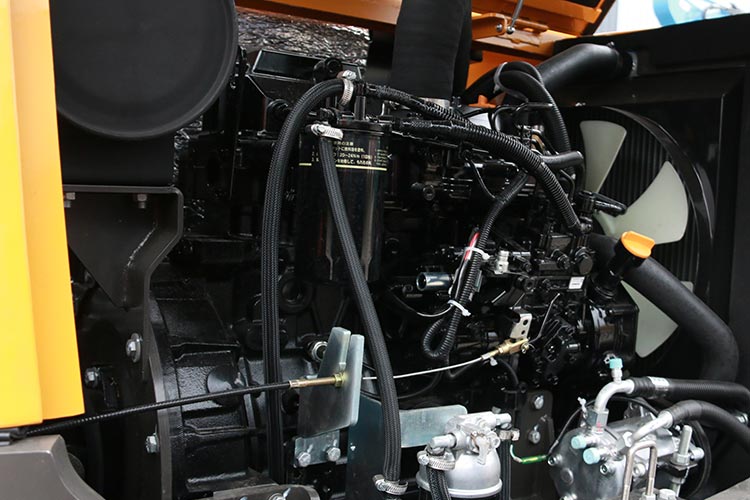

The 1.5T tracked excavator is based on excellent engine matching technology and high-quality Japanese European hydraulic system, which enables the machine to have high power output, improve working speed, and reduce fuel consumption.

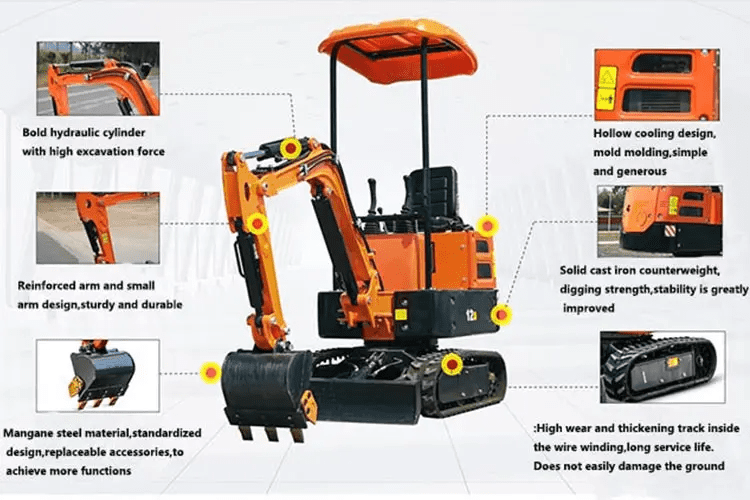

Structural display

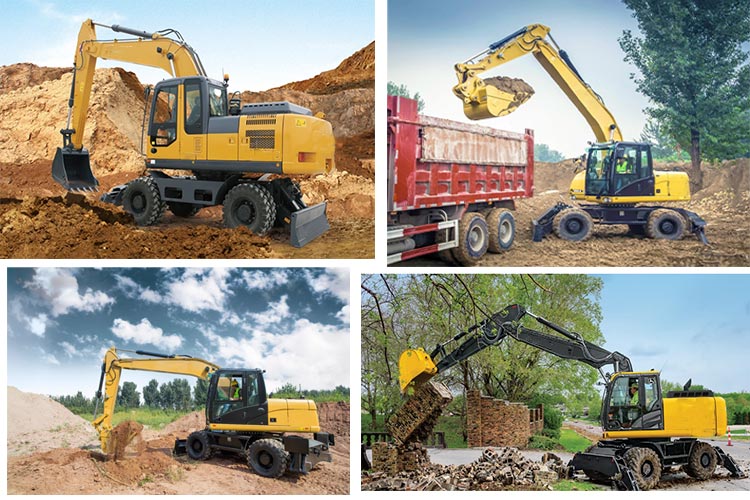

Applications

1.5T tracked excavator is widely used for indoor demolition, orchard planting, municipal engineering, greenhouses, land reclamation, nursery trenching and fertilization, pipelines, basement renovation, underground operations, etc.
