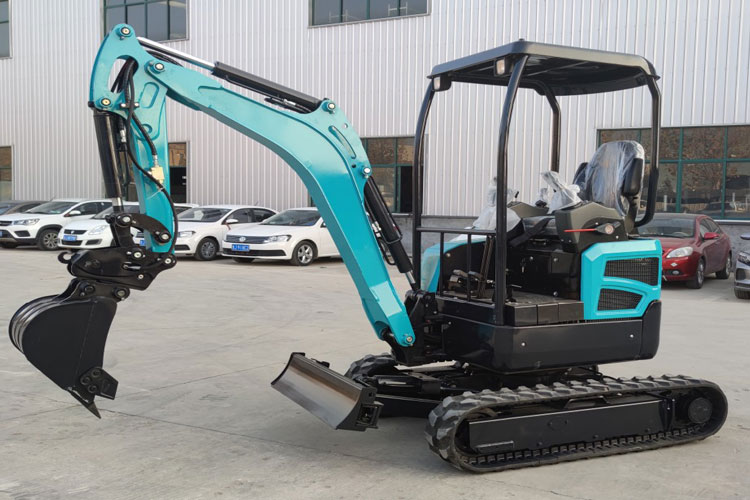

2.0T Mini Crawler Excavator with large rotation radius

-Engine type: Kubota

-Superior performance, high configuration, and low fuel consumption

-Powerful, energy-saving, and fuel-efficient

-Supports OEM, meets environmental standards, and the appearance color can be customized

-Power: 14.2kW (19HP) @ 2000rpm

-Bucket capacity: 0.07m ³

-Customization cycle: 25 days

-WhatsApp:+8615806625431

-Email: info@sdshinemachinery.com


  Contact Now E-mail Telephone WhatsApp
Product Details

ProductDetails

The 2.0T micro tracked excavator comes standard with a crushing pipeline, which can be equipped with various attachments such as crushing hammers, scarifiers, wood grabbers, and spiral drills, making it versatile for one machine; Iron and rubber tracks can be interchanged at any time, suitable for various construction conditions, and use a deflection arm to easily excavate the wall foot during deflection work. The product is widely used for indoor demolition, orchard planting, municipal engineering, greenhouses, land reclamation, nursery trenching and fertilization, pipelines, basement renovation, underground operations, etc.

Product parameter

Performance parameters
Bucket capacity (m³)0.07
Rotation speed (rmp)0-9
Maximum climbing angle (°)35
Maximum digging force of bucket (KN)18
Maximum digging force of bucket rod (KN)11
Engine modelKUBOTA
Power/speed (KW/rmp)

14.2kw(19HP)@2000rpm

Tire model-
System pressure (MPa)21.5

Scope of work
Maximum digging height (mm)3700
Maximum unloading height (mm)2440
Maximum digging depth (mm)2400
Maximum vertical digging depth (mm)2025
Maximum digging radius (mm)4040
Minimum turning radius (mm)1610
Maximum ground clearance of dozer blade (mm)240
Maximum depth of bulldozing board sinking (mm)270
Overall size
Overall dimensions length*width*height (mm)3555*1300*2290
Wheelbase (mm)1230
Wheel (rail) gauge (mm)760
Minimum ground clearance (mm)150

Tail turning radius (mm)

650

Product display

The 2.0T micro tracked excavator has a super large toolbox, which is more conducive to storing spare items and has a longer repair and maintenance cycle. High quality components are selected to extend the service life and reduce the maintenance time of the machine.

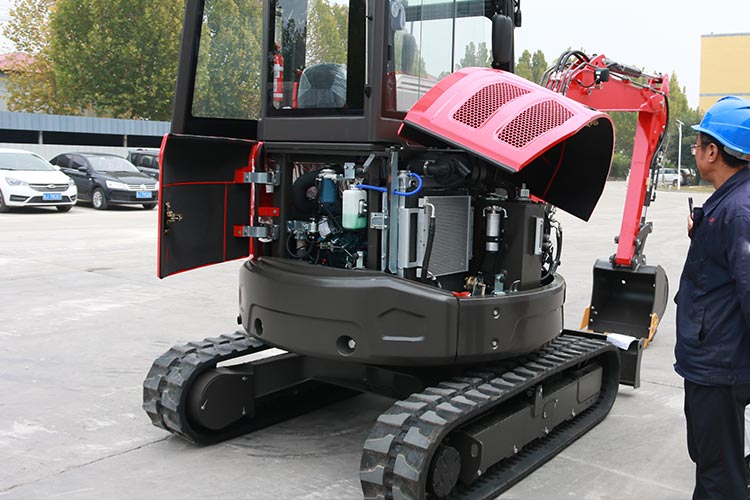

External display

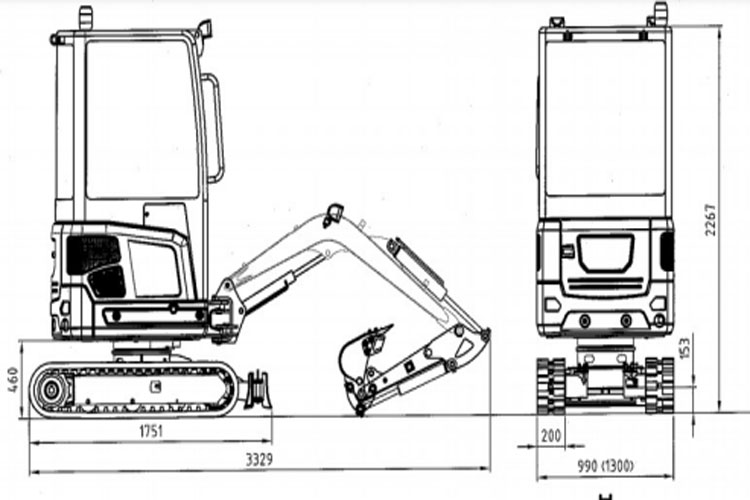

Mechanical drawing

Mechanical drawing

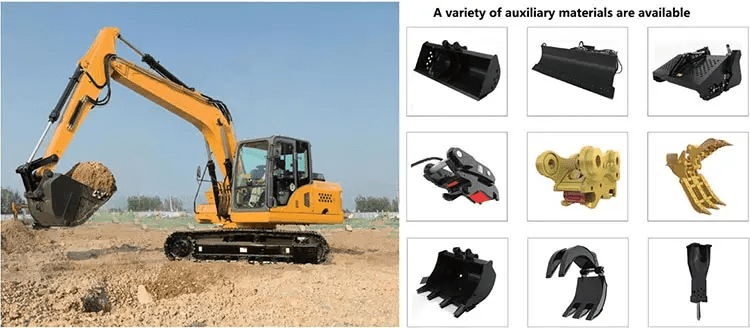

Applications

The product is widely used for indoor demolition, orchard planting, municipal engineering, greenhouses, land reclamation, nursery trenching and fertilization, pipelines, basement renovation, underground operations, etc.

Applications

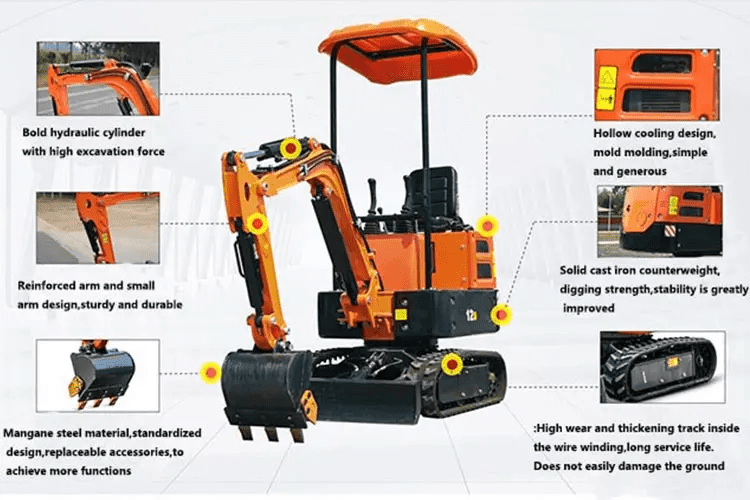

Structure display


Logistics delivery

Logistics delivery
