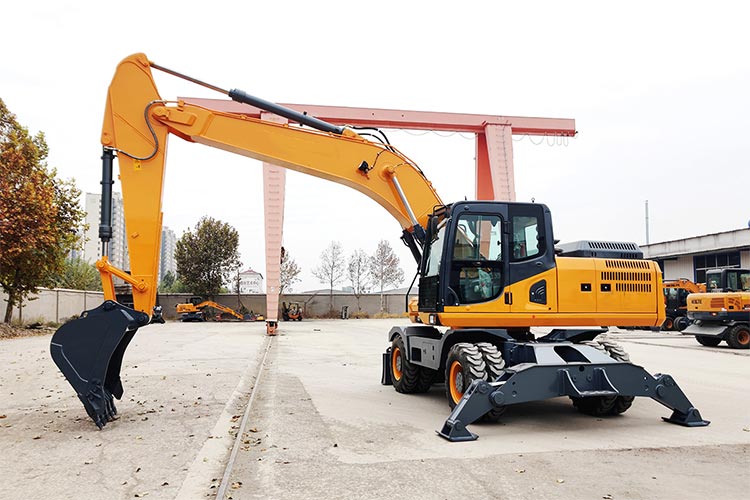

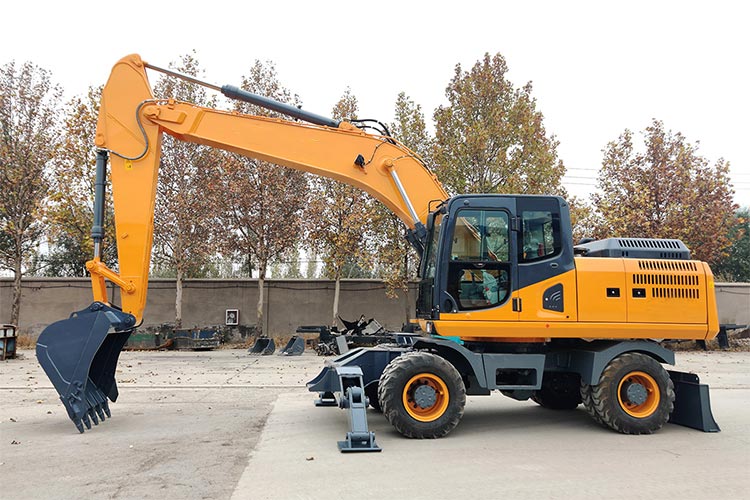

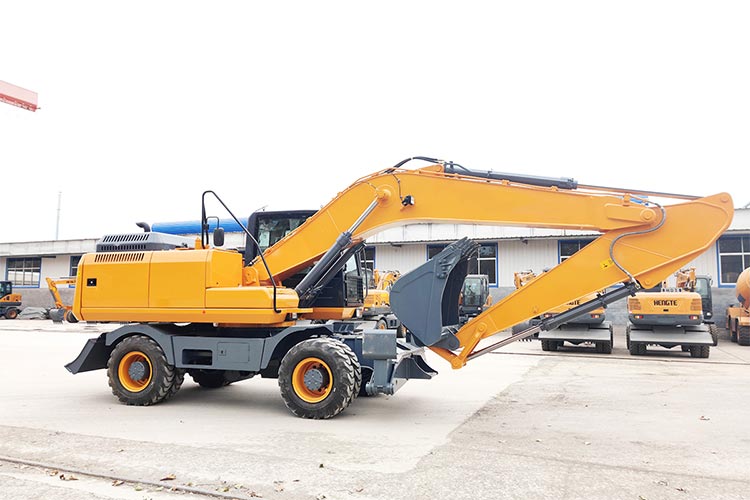

21.5 Ton Large wheeled excavator

Adopt a new intelligent control system,with powerful big date analysis and storage functions,timely warning tips

Full-time four-wheel drive,walking motor through the gearbox,differential directly drive four wheels,can cope with various situations

Reinforced structural parts,more suitable for harsh working conditions,improve durability

Email:Sunny@hoclshine.com

WhatsApp:+8615806625431

  Contact Now E-mail Telephone WhatsApp
Product Details

15.5 Ton of new generation of hydraulic wheel excavator,Wheeled excavators have a small body size, can work in a narrow space, can adapt to a variety of working environments, simple operation, with off-road performance using intelligent driving computer,with big date analysis and storage functions,timely warning function,international well-known brand engine,more fuel saving,strong power.


21.5 wheel excavator


Product parameter

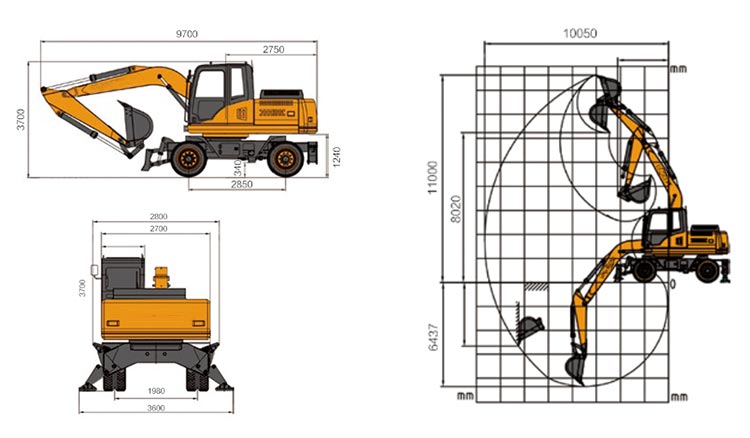

                                           Technical Specification
ShippingLength9700mm
Total height during transportation3300mm
Overall width2490mm
Tail turning radius2750mm
Wheelbase2855mm
Track width1975mm
Turntable ground clearance1240mm
Rear axle ground clearance340L
Fuel tank capacity liquid350L
Hydraulic tank capacity215L


                              Working Range and Digging Force
Max.digging Radius10050mm
Max.DiggingHeight11000mm
Max.DiggingDepth6437mm
Max.Unloading height8020mm
BucketForces152.1kn
ArmForces119.5kn
BucketVolum1.0M3
Travel Speed30Km/h
HydraulicSystem Flow2*239L/min
Climbing ability70%

21.5 Ton wheel excavator

Product details

21.5 Ton of the new generation of hydraulic wheel excavator,the use of internationally renowned brand engine,low fuel consumption,strong power,while using the original imported main hydraulic system,and perfectly matched with the engine,

The wheeled excavator is also equipped with the driving record monitoring function, which can warn the fault in advance and reduce the occurrence of accidents.can accurately provide flow,improve work efficiency. High driving force,so that the vehicle has a flexible escape ability to ensure strong off-road performance

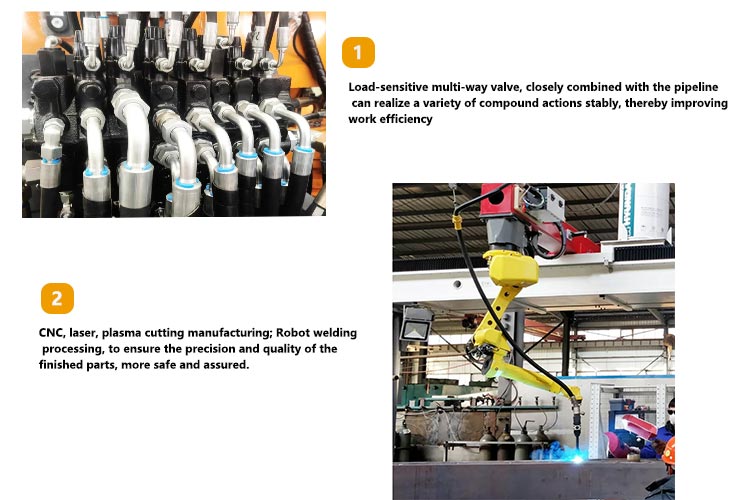

21.5 Ton wheel excavator

21.5 wheel excavator

  • Ergonomic ner suspension seat to improve the driver's operating comfort

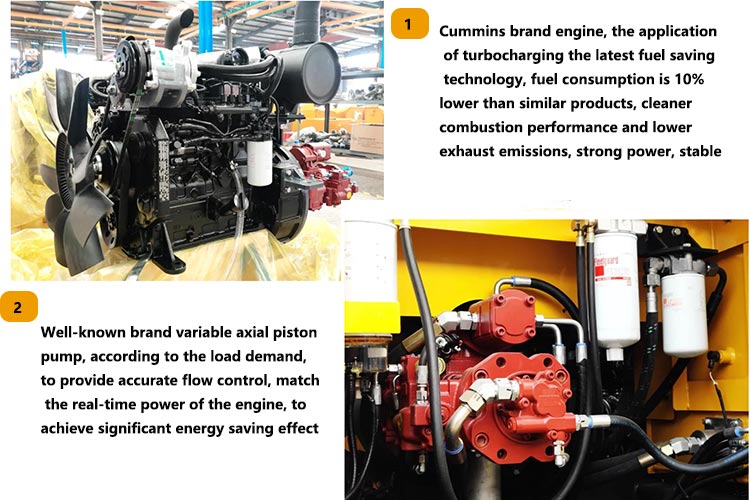

  • The use of internationally renowned brand engine,reduce fuel consumption strong power

  • The original imported main hydraulic system is perfectly matched with the engine,accurately providing flow and improving working efficiency

  • Full-time four-wheel drive,equipped with high and low gear,with high-speed walking ability,can achieve rapid transition

  • High driving force,so that the vehicle has flexible escape ability,to ensure strong off-road performance

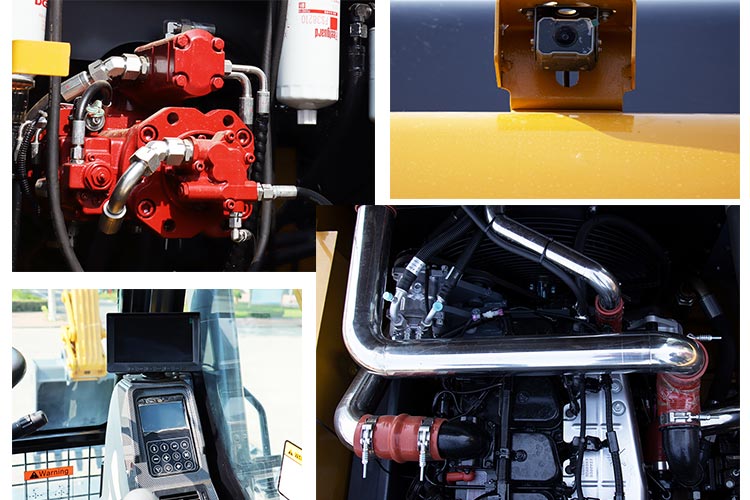

21.5 Wheel excavator

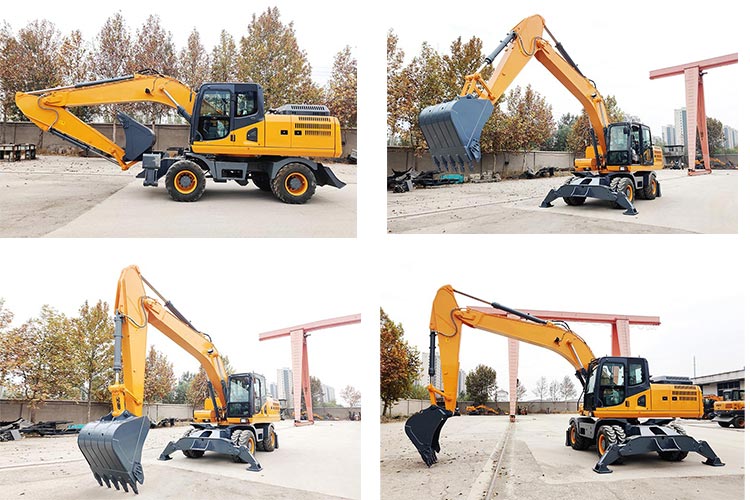

Product muiti-angle display

21.5 Ton wheel excavator

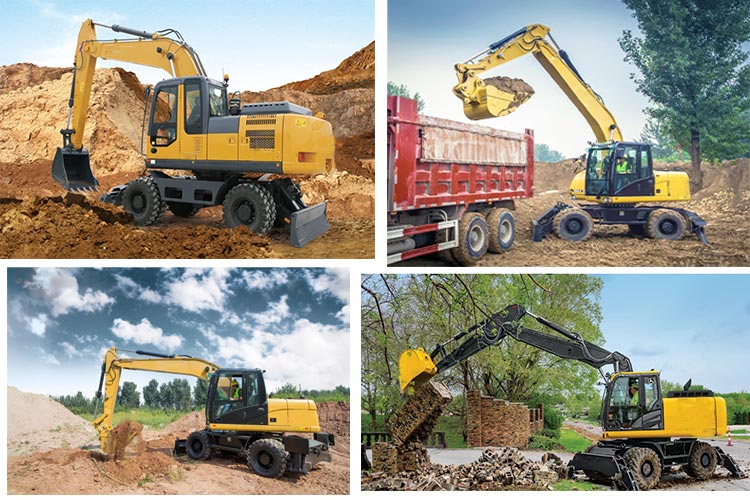

21.5 Ton wheel excavator is a large excavator and is suitable for large-scale projects,Wheeled excavators are widely used in construction sites, road maintenance, urban construction, mining and farmland construction and other fields

21.5 Ton wheel excavator
