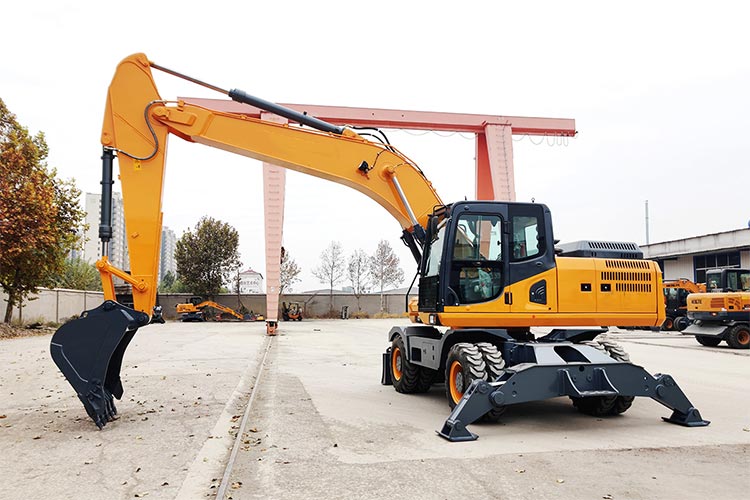

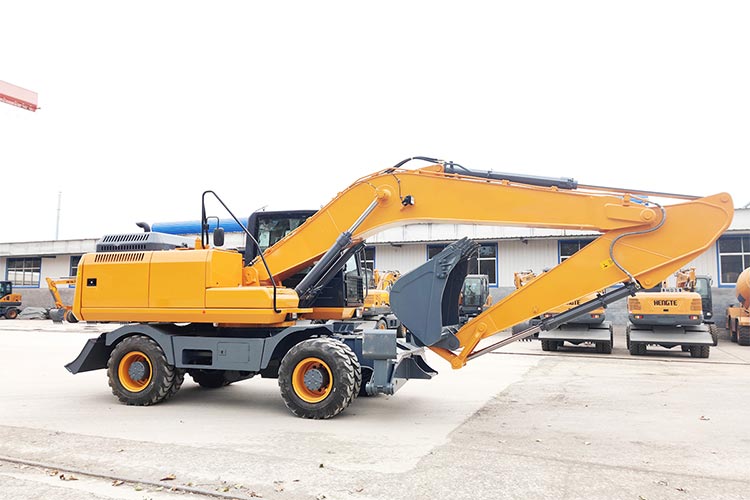

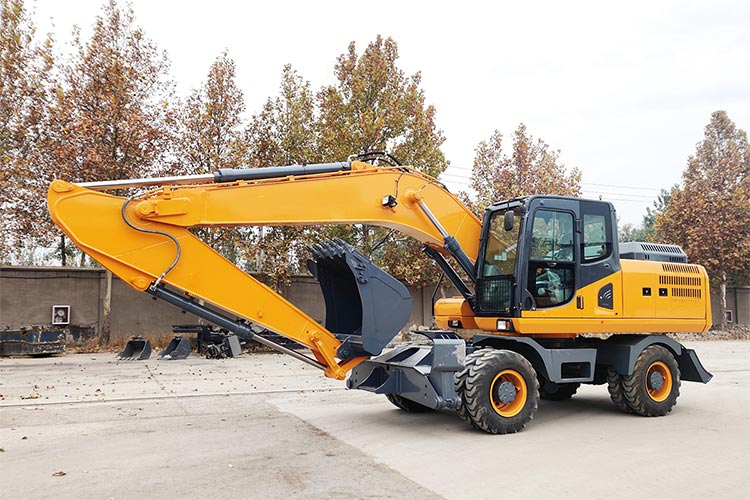

21.5 Tons Big wheel excavatator with attachments for sale

  • Full hydraulic drive (automatic transmission,more convenient)

  • Load sensitive system(smooth operation,more power)

  • Full view of the Cab(high configuration,good vision)

  • Multi-function operating system(handle control,easy operation)

  • High driving force,full-time four-wheel drive(faster,more stable)

  • Email:Sunny@hoclshine.com

  • WhatsApp:+8615806625431


  Contact Now E-mail Telephone WhatsApp
Product Details

21.5 Ton Wheel excavator, Double balance hydraulic suspension system,Wheeled excavators are equipped with high-efficiency hydraulic excavators, which can achieve efficient excavation and loading work,when the road is not normal,the suspension system can automatically adjust the front axle tilt Angle,So that the driving level,reduce the vehicle jolt,improve comfort


21.5 Ton wheel excavator

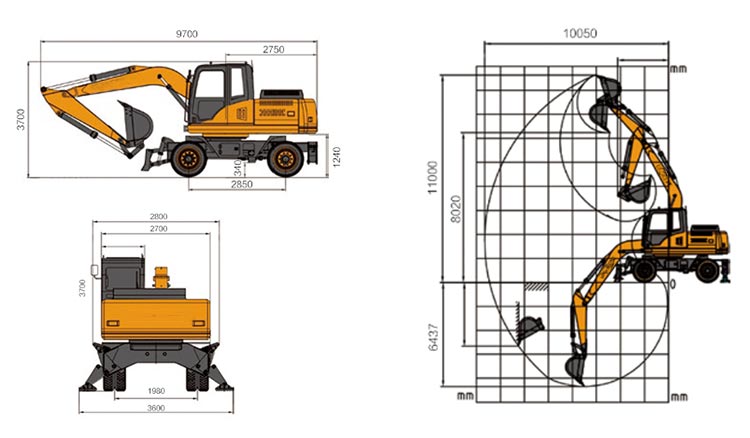

Product parameter

                                                 Technical Specification
ShippingLength9700mm
Total height during transportation3300mm
Overall width2490mm
Tail turning radius2750mm
Wheelbase2855mm
Track width1975mm
Turntable ground clearance1240mm
Rear axle ground clearance340L
Fuel tank capacity liquid350L
Hydraulic tank capacity215L

                                         Working Range and Digging Force
Max.Digging Radius10050mm
Max.DiggingHeight11000mm
Max.DiggingDepth6437mm
Max.Unloading height8020mm
BucketForces152.1kn
ArmForces119.5kn
BucketVolum1.0M3
Travel Speed30Km/h
HydraulicSystem Flow2*239L/min
Climbing ability70%

21.5 Ton wheel excavator

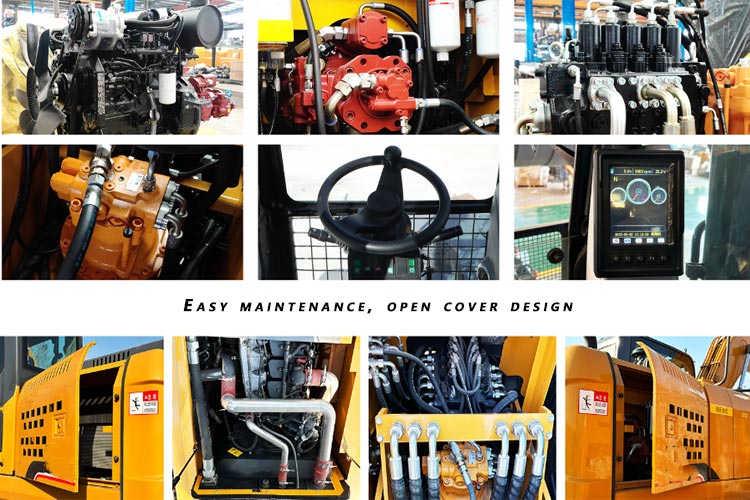

Product details

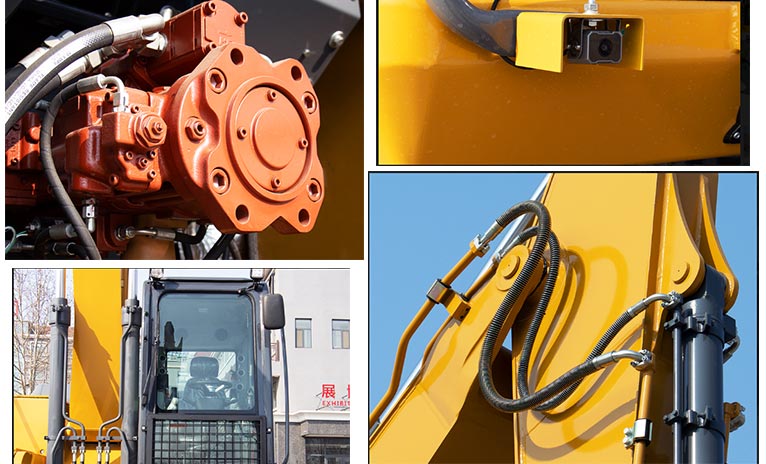

21.5 Ton of the new generation of hydraulic wheel excavator,the use of internationally renowned brand engine,low fuel consumption,strong power,while using the original imported main hydraulic system,Wheeled excavators have a variety of working modes, and can adjust the digging depth, excavation width and other parameters according to the work needs.

21.5 Ton wheel excavator


  • The use of internationally renowned brand engine,reduce fuel consumption strong power

  • The original imported main hydraulic system is perfectly matched with the engine,accurately providing flow and improving working efficiency

  • Intelligent driving computer,with big data analysis and storage functions,timely warning tips

  • Full-time four-wheel drive,equipped with high and low gear,with high-speed walking ability,can achieve rapid transition

  • High driving force,so that the vehicle has flexible escape ability,to ensure strong off-road performance

21.5 Ton wheel excavator

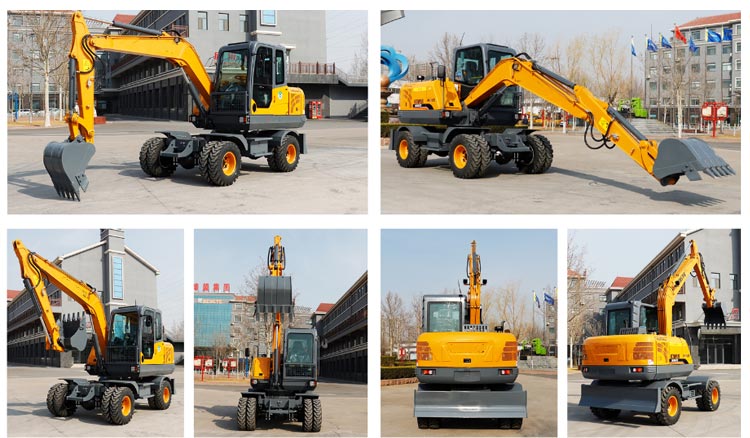

Product muiti-angle display

21.5 Wheel excavator

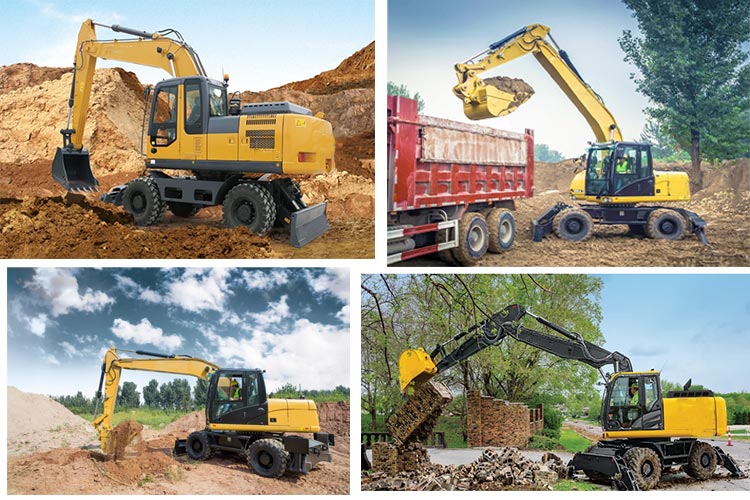

21.5 Ton wheel excavator is a large excavator ,Wheeled excavators are also widely used in urban construction and public facility construction, and can also be used in road construction, bridge construction, municipal engineering, landscaping, etc. Its flexibility and mobility make them able to adapt to diverse working environments such as small urban Spaces

21.5 Wheel excavator
