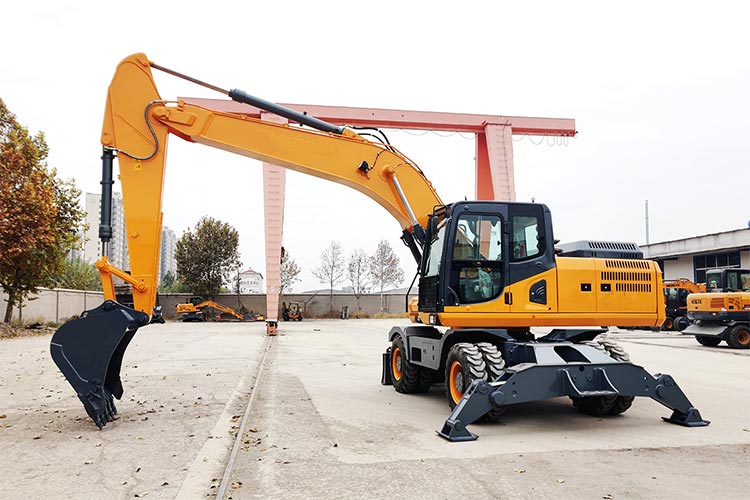

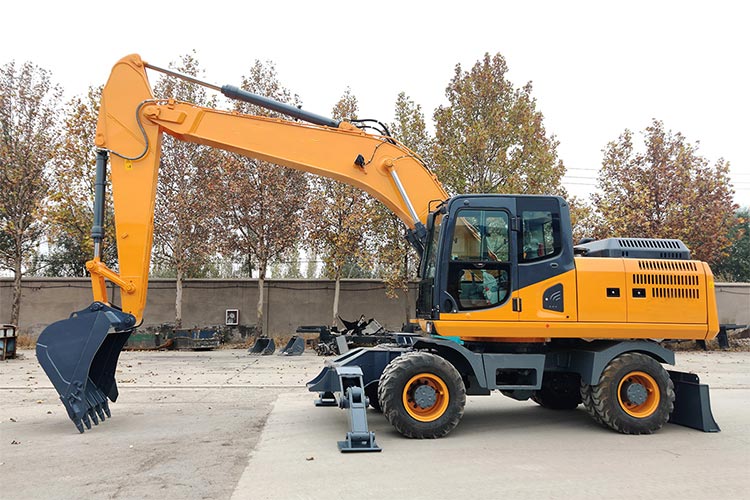

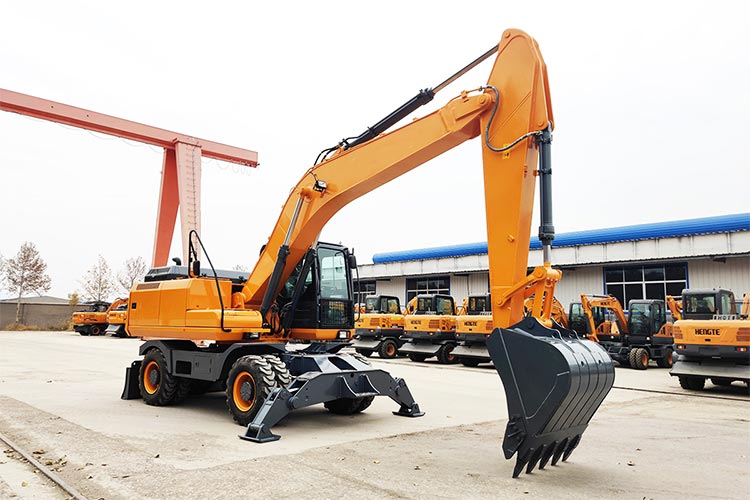

21.5 Tons Big wheel excavation

Adopt a new intelligent control system,with powerful big data analysis and storage functions,timely warning tips

Full-time four-wheel drive,walking motor through the gearbox,differential directly directly drive four wheels,can cope with various situations

Reinforced structural parts,more suitable for harsh working conditions,improve durability

Email:Sunny@hoclshine.com

WhatsApp:+8615806625431


  Contact Now E-mail Telephone WhatsApp
Product Details

21.5 Ton of the new generation of hydraulic wheel excavator,the use of internationally renowned brand engine,low fuel consumption,strong power,while using the original imported main hydraulic system,Wheeled excavators use tires to drive, and can drive on relatively flat roads and construction sites, with high-speed movement and off-road performance and perfectly matched with the engine,can accurately provide flow,improve work efficiency,High driving force,so that the vehicle has a flexible escape ability to ensure strong off-road performance



21.5 Ton wheel excavator


Product parameter

                                            Technical Specification
ShippingLength9700mm
Total height during transportation3300mm
Overall width2490mm
Tail turning radius2750mm
Wheelbase2855mm
Track width1975mm
Turntable ground clearance1240mm
Rear axle ground clearance340L
Fuel tank capacity liquid350L
Hydraulic tank capacity215L

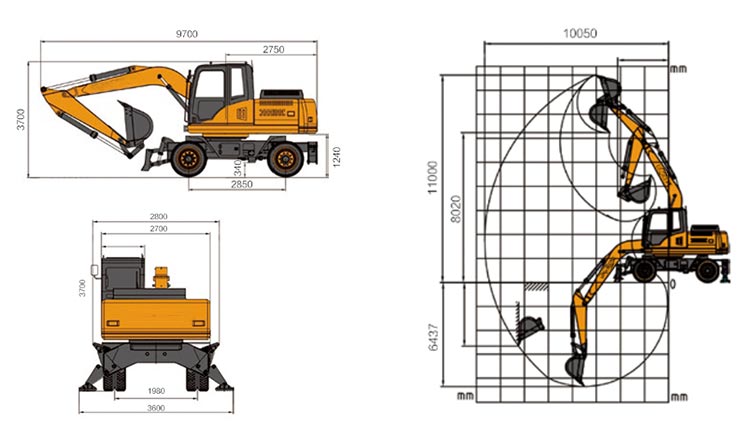

                                     Working Range and Digging Force
Max.Digging Radius10050mm
Max.DiggingHeight11000mm
Max.DiggingDepth6437mm
Max.Unloading height8020mm
BucketForces152.1kn
Armforces119.5kn
BucketVolum1.0M3
Travel Speed30Km/h
HydraulicSystem Flow2*239L/min
Climbing ability70%

21.5 Ton wheel excavator

21.5 Ton of new generation of hydraulic wheel excavator,using intelligent driving computer,with big date analysis and storage functions,timely warning function,international well-known brand engine, Wheeled excavator has the advantages and characteristics of flexibility, rapidness, low energy consumption, strong compensation ability and simple operation, which makes it able to adapt to various scenarios more fuel saving,strong power,at the same time,the original imported main hydraulic system is perfectly matched with the engine to provide accurate flow and improve the operation effect

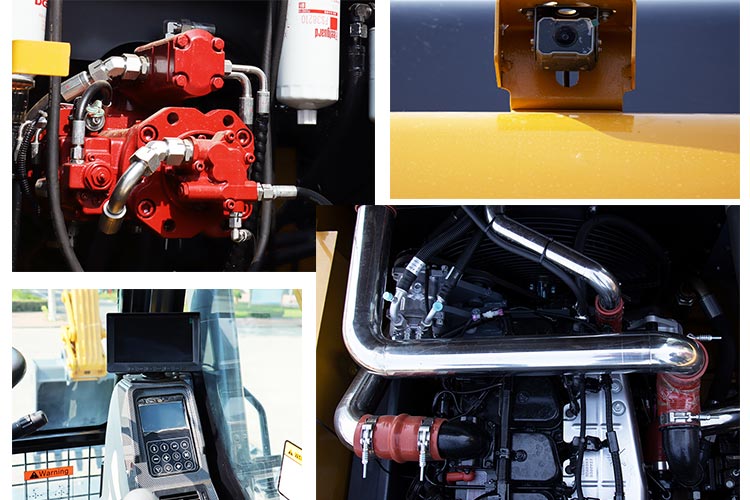

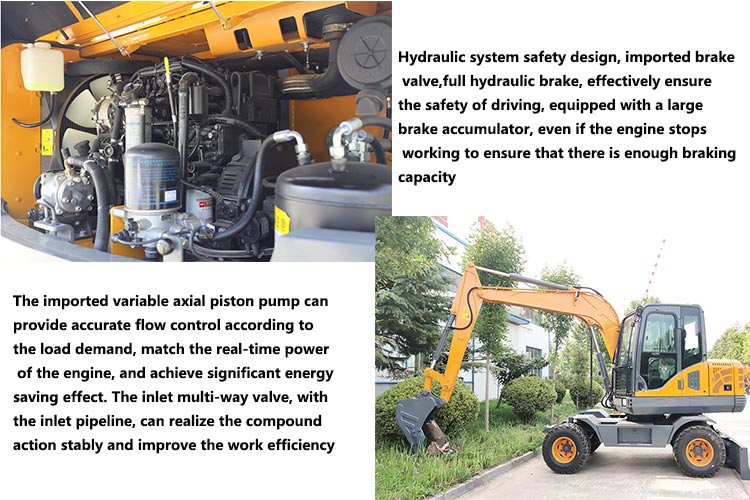

21.5 Ton wheel excavator

  • Spacious and comfortable cab with wide all-round view

  • Ergonomic ner suspension seat to improve the driver's operating comfort

  • The use of internationally renowned brand engine,reduce fuel consumption strong power

  • The original imported main hydraulic system is perfectly matched with the engine,accurately providing flow and improving working efficiency

  • Intelligent driving computer,with big data analysis and storage functions,timely warning tips

  • Full-time four-wheel drive,equipped with high and low gear,with high-speed walking ability,can achieve rapid transition

  • High driving force,so that the vehicle has flexible escape ability,to ensure strong off-road performance

21.5 Ton wheel excavator

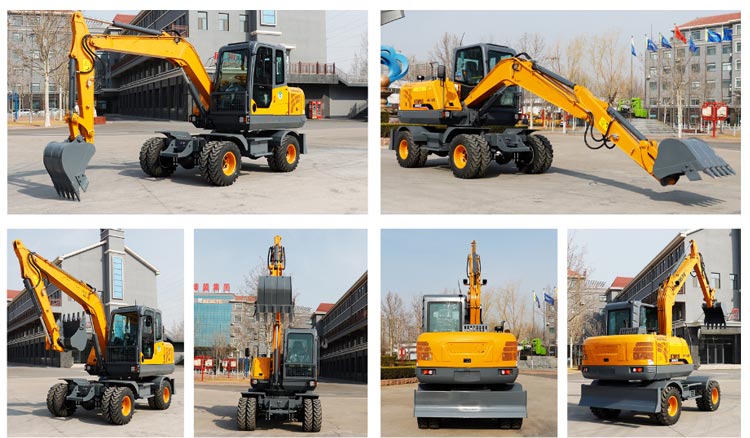

Product muiti-angle display

21.5 Ton wheel excavator

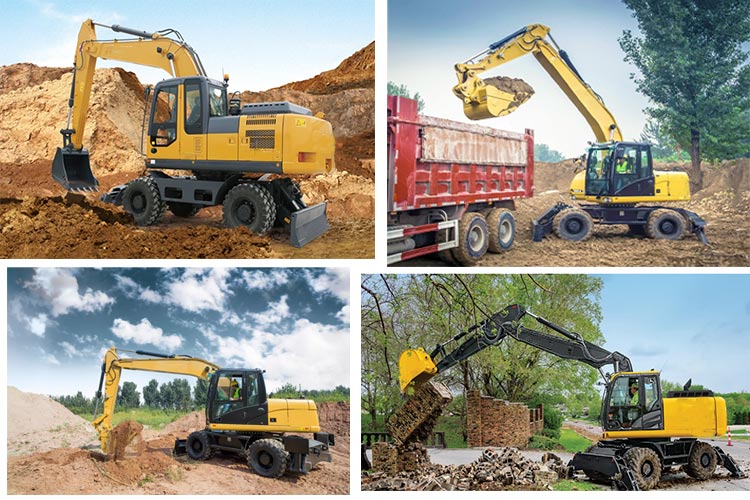

21.5 Ton wheel excavator is a large excavator and is suitable for large-scale projects,Wheeled excavator is widely used in construction sites, road maintenance, urban construction, mining and farmland construction and other fields, it has efficient digging ability, flexible response to the working environment and simple operation.

21.5 wheel excavator
