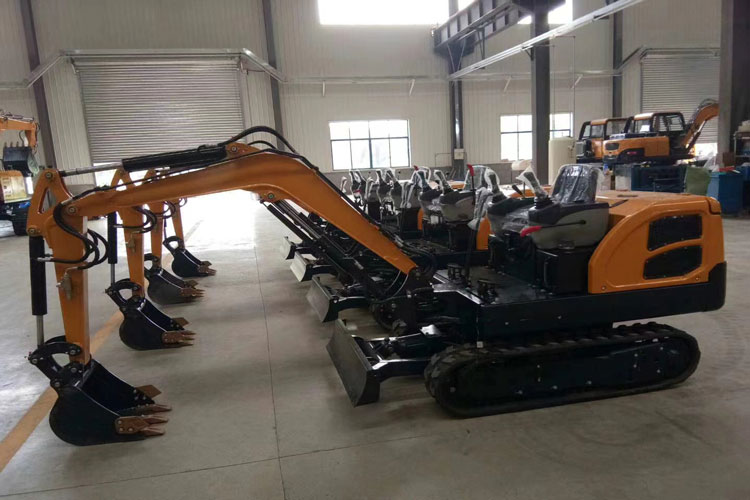

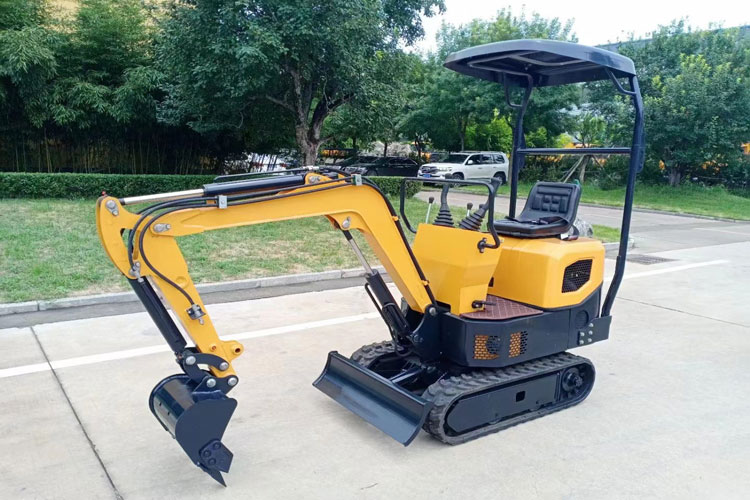

2.2T Mini Track Excavator

-Engine type: Kubota

-Superior performance, high configuration, and low fuel consumption

-Powerful, energy-saving, and fuel-efficient

-Supports OEM, meets environmental standards, and the appearance color can be customized

-Power: 22.1kW (19HP)/2300rpm

-Bucket capacity: 0.1m ³

-Customization cycle: 25 days

-WhatsApp:+8615806625431

-Email: info@sdshinemachinery.com


  Contact Now E-mail Telephone WhatsApp
Product Details

ProductDetails

The arm of the 2.2T micro tracked excavator is formed by overall welding, and finally bored by a boring machine and treated with alkane, which can effectively strengthen the robustness of the large and small arms, extend the service life of the pins and sleeves, and avoid welding and fracture at the welding point. It is durable and durable. The cutting plates of the bucket are made of special wear-resistant steel plates, suitable for heavy-duty operations. It is equipped with wear-resistant bucket teeth and side teeth to improve the performance of the machine.

Product parameter

Performance parameters
Bucket capacity (m³)0.1
Rotation speed (rmp)0-12
Maximum climbing angle (°)30
Maximum digging force of bucket (KN)15.3
Maximum digging force of bucket rod (KN)10.5
Engine model

KUBOTA

Power/speed (KW/rmp)22.1/2300
Tire model-
System pressure (MPa)18

Scope of work
Maximum digging height (mm)3700
Maximum unloading height (mm)2290
Maximum digging depth (mm)2450
Maximum vertical digging depth (mm)2160
Maximum digging radius (mm)4370
Minimum turning radius (mm)2020
Maximum ground clearance of dozer blade (mm)240
Maximum depth of bulldozing board sinking (mm)310
Boom swing angle (left)°70
Boom swing angle (right)°50

Overall size
Overall dimensions length*width*height (mm)4170*1300*2280
Cab height (mm)2280
Wheelbase (mm)1230
Wheel (rail) gauge (mm)1050
Minimum ground clearance (mm)230
Tail turning radius (mm)1180

Product display

The precise matching design of the 2.2T micro tracked excavator, combined with advanced energy-saving control, reduces the machine's fuel consumption. The adoption of new cooling fans and large silencers reduces the machine's noise

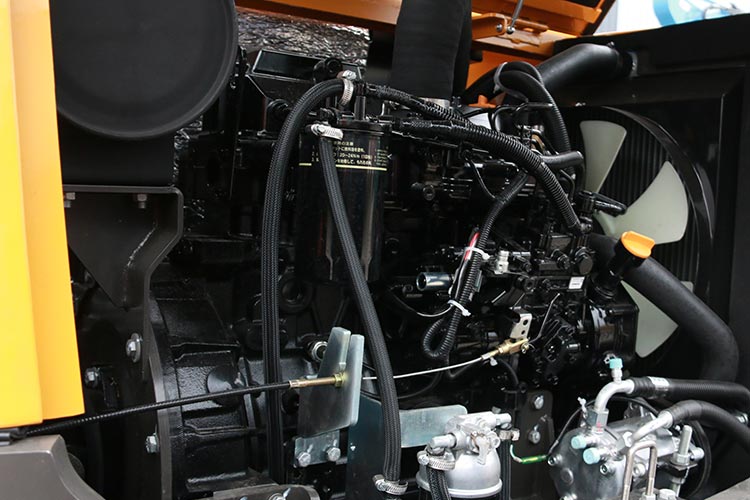

Engine compartment

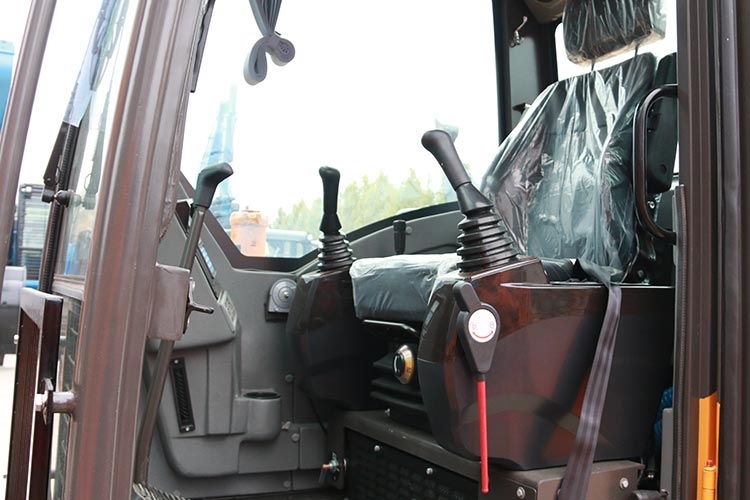

pilothouse

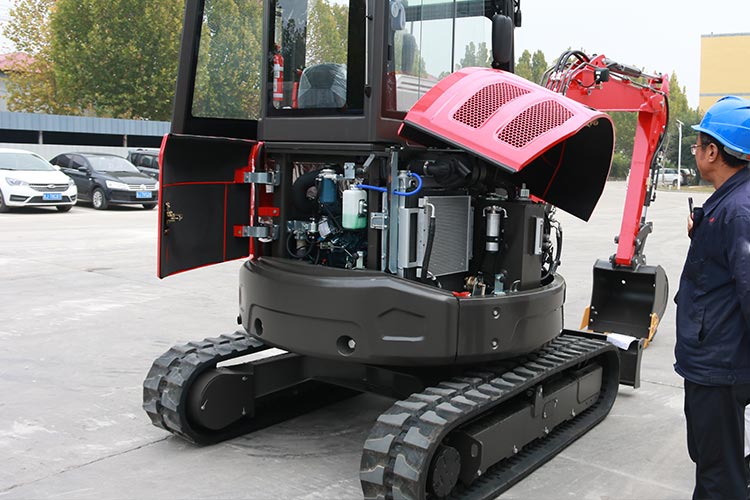

Side display

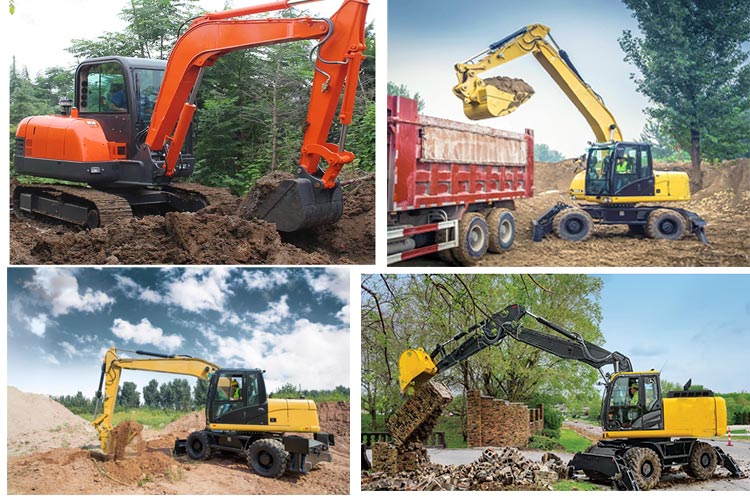

Applications

The product is widely used for indoor demolition, orchard planting, municipal engineering, greenhouses, land reclamation, nursery trenching and fertilization, pipelines, basement renovation, underground operations, etc.

Mining Scenarios

Applications

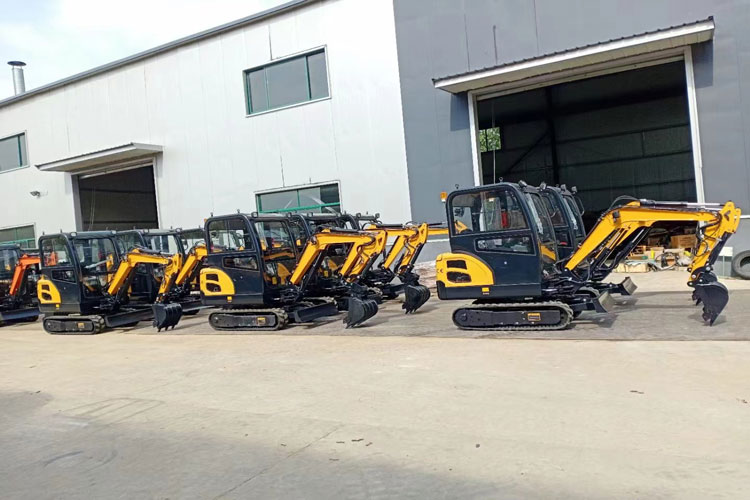

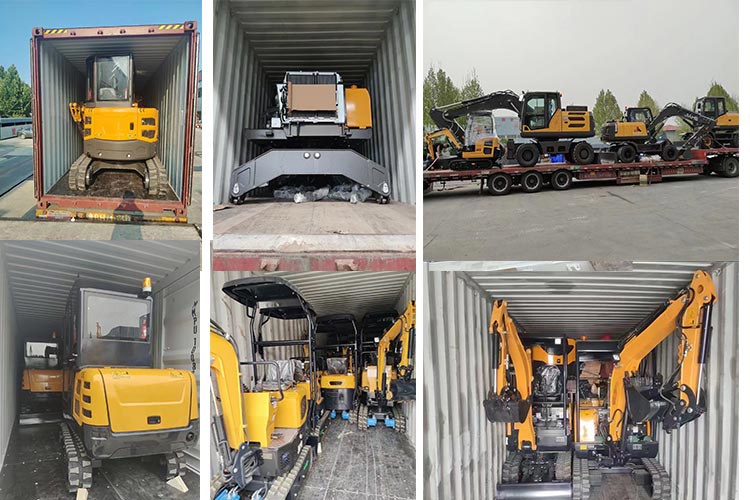

Logistics display

Logistics display

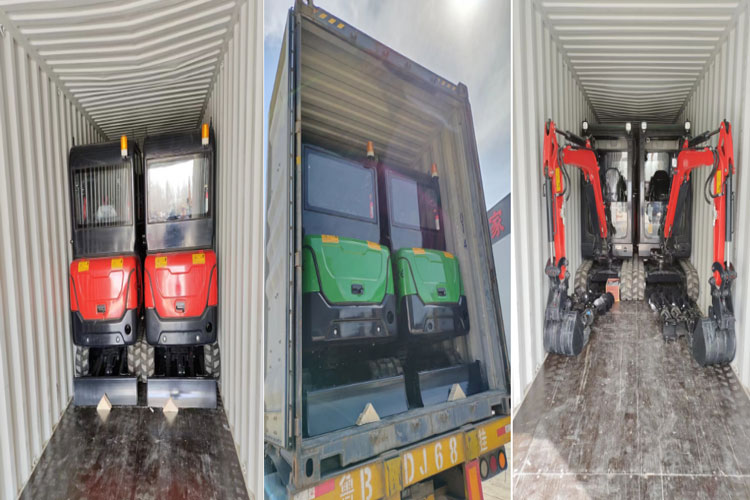

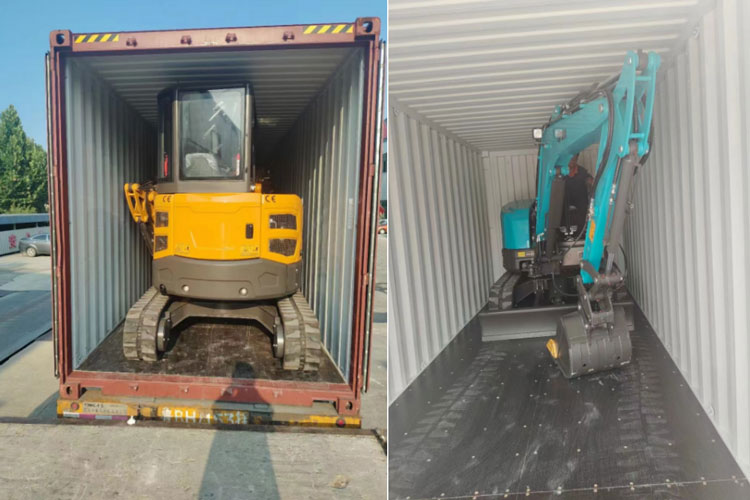

Loading and delivery

Loading and delivery

Loading and delivery

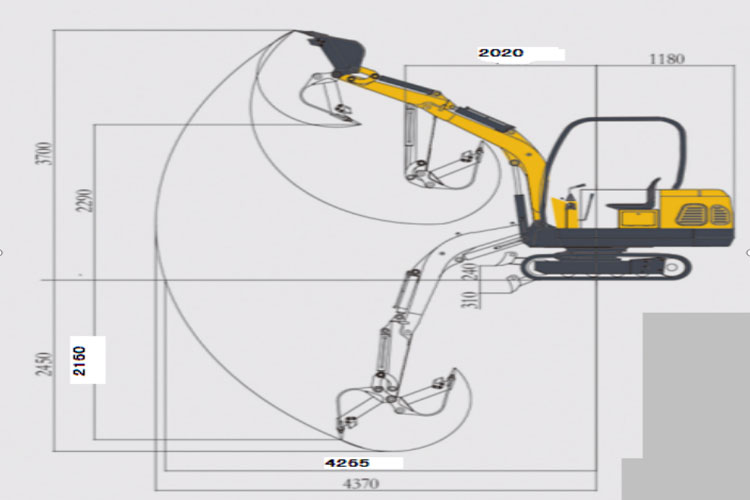

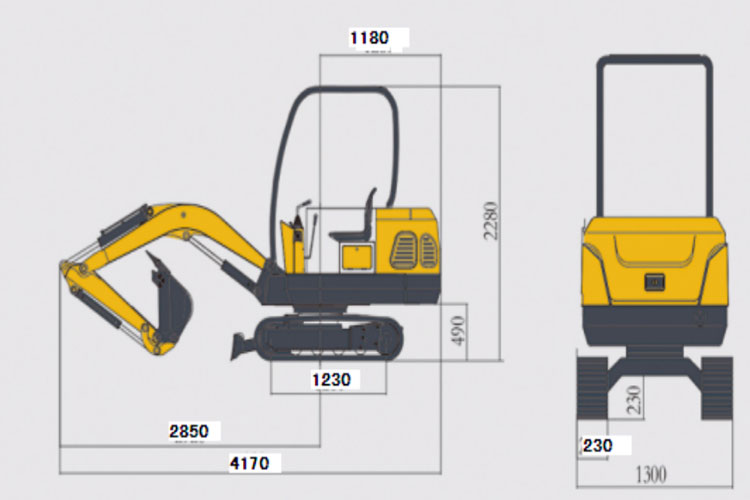

Mechanical drawing

Mechanical drawing

Mechanical drawing
