2.2T small tracked excavator suitable for various sites

-Power: 22.1kW (19HP)/2300rpm

-Engine type: Kubota

-Superior performance, high configuration, and low fuel consumption

-Powerful, energy-saving, and fuel-efficient

-Supports OEM, meets environmental standards, and the appearance color can be customized

-Bucket capacity: 0.1m ³

-Customization cycle: 25 days

-WhatsApp:+8615806625431

-Email: info@sdshinemachinery.com


  Contact Now E-mail Telephone WhatsApp
Product Details

ProductDetails

The electric throttle control system of the 2.2T small tracked excavator fully utilizes the engine power to maintain the best efficiency and economy of the machine under different operating conditions. The automatic idle function is activated. If the machine does not operate for 5 seconds, the engine will automatically idle to save fuel and reduce noise. All operation controls are designed and arranged according to ergonomic theory.

Product parameter

Performance parameters
Bucket capacity (m³)0.1
Rotation speed (rmp)0-12
Maximum climbing angle (°)30
Maximum digging force of bucket (KN)15.3
Maximum digging force of bucket rod (KN)10.5
Engine model

KUBOTA

Power/speed (KW/rmp)22.1/2300
Tire model-
System pressure (MPa)18

Scope of work
Maximum digging height (mm)3700
Maximum unloading height (mm)2290
Maximum digging depth (mm)2450
Maximum vertical digging depth (mm)2160
Maximum digging radius (mm)4370
Minimum turning radius (mm)2020
Maximum ground clearance of dozer blade (mm)240
Maximum depth of bulldozing board sinking (mm)310
Boom swing angle (left)°70
Boom swing angle (right)°50


Overall size
Overall dimensions length*width*height (mm)4170*1300*2280
Cab height (mm)2280
Wheelbase (mm)1230
Wheel (rail) gauge (mm)1050
Minimum ground clearance (mm)230
Tail turning radius (mm)1180

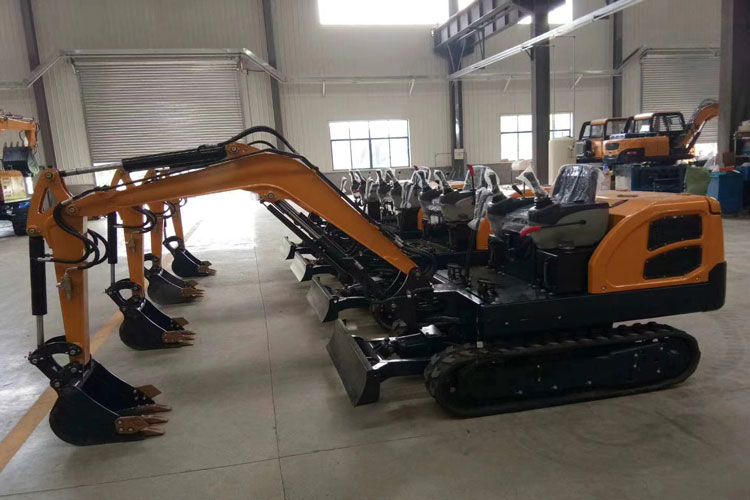

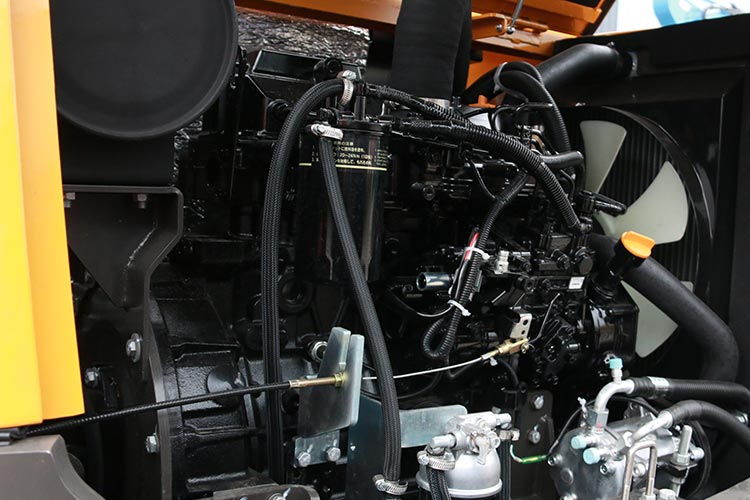

Product display

The arm of the 2.2T small tracked excavator is formed by overall welding, and finally bored by the boring machine and treated with alkane, which can effectively strengthen the robustness of the large and small arms, extend the service life of the pins and sleeves, and avoid welding fractures at the welding points, making it durable.

Product display

Applications

The product is widely used for indoor demolition, orchard planting, municipal engineering, greenhouses, land reclamation, nursery trenching and fertilization, pipelines, basement renovation, underground operations, etc.

Applications

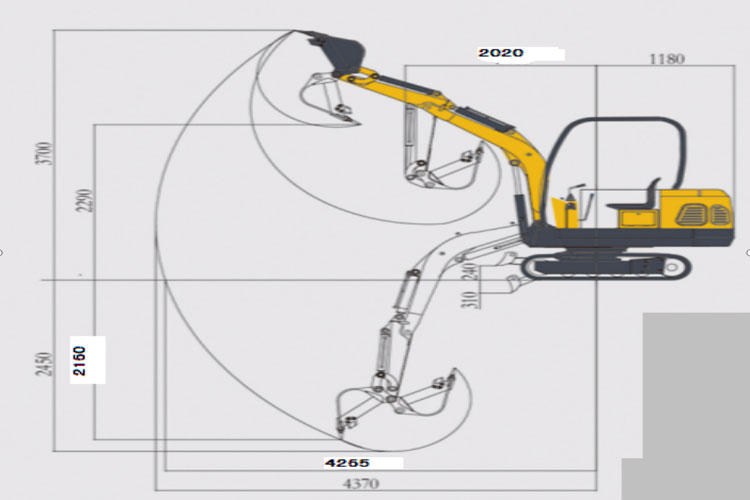

Mechanical drawing

Mechanical drawing

Logistics display

Logistics display

Loading and delivery

Loading and delivery
