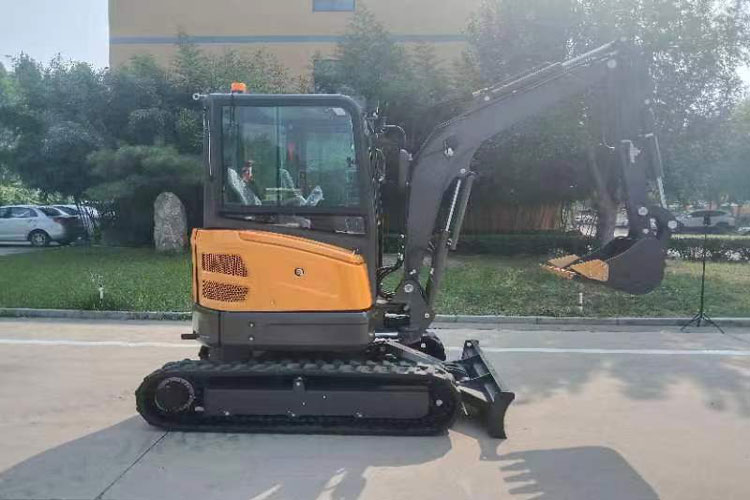

3.0T crawler excavator with large rotation radius

-Powerful, energy-saving, and fuel-efficient

-Superior performance, high configuration, and low fuel consumption

-Supports OEM, meets environmental standards, and the appearance color can be customized

-Engine type: Kubota

-Power: 14kW (19HP) @ 2200rpm

-Bucket capacity: 0.1m ³

-Customization cycle: 25 days

-WhatsApp:+8615806625431

-Email: info@sdshinemachinery.com

Contact Now E-mail Telephone WhatsApp

Product Details

Product Details

3.0T crawler excavator automatic idle function: Enable the automatic idle function. If the machine does not operate within 5 seconds, the engine will automatically idle to save fuel and reduce noise. The multifunctional LCD monitor has a large screen and digital display, comprehensively monitoring the working status of the engine (speed, water temperature, oil pressure, etc.), and various operating information of the machine can be queried at any time. The function switches are centrally arranged on the control panel and can be easily selected through touch buttons.

Product parameter

Performance parameters
Bucket capacity (m³)	0.1
Rotation speed (rmp)	10
Maximum climbing angle (°)	58
Maximum digging force of bucket (KN)	23.5
Maximum digging force of bucket rod (KN)	14
Engine model	KUBOTA
Power/speed (KW/rmp)	14kw(19HP)@2200rpm
Tire model	-
System pressure (MPa)	24

Scope of work
Maximum digging height (mm)	4427
Maximum unloading height (mm)	3005
Maximum digging depth (mm)	2830
Maximum vertical digging depth (mm)	2530
Maximum digging radius (mm)	4835
Minimum turning radius (mm)	2160
Maximum ground clearance of dozer blade (mm)	308
Maximum depth of bulldozing board sinking (mm)	363
Boom swing angle (left)°	69
Boom swing angle (right)°	45

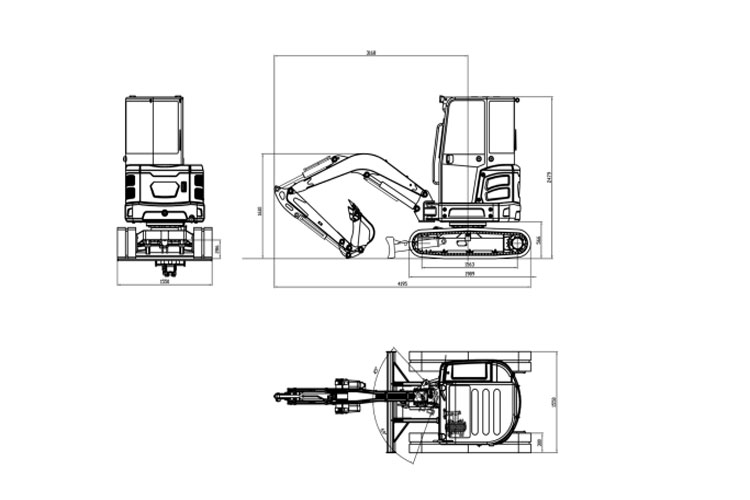

Overall size
Overall dimensions lengthwidthheight (mm)	419515502480
Wheelbase (mm)	1565
Wheel (rail) gauge (mm)	1250
Minimum ground clearance (mm)	286
Boom length（mm）	2200

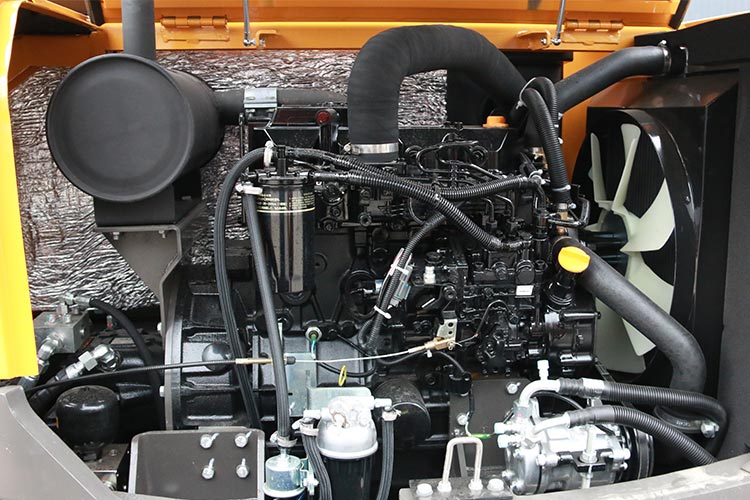

Product display

The 3.0T tracked excavator adopts a GPS satellite positioning system for remote diagnosis, fault warning, maintenance, and automatic reminder. Convenient and fast repair and maintenance

Product display

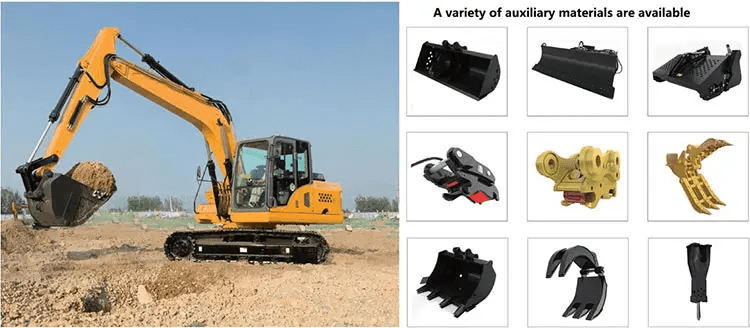

Structure display

The 3.0T crawler excavator increases the sunroof glass to improve upward visibility and increase ventilation. The doors and windows are made of tempered glass, which is a sunshade to prevent direct sunlight

Structure display

Logistics delivery

Applications

The product is widely used for indoor demolition, orchard planting, municipal engineering, greenhouses, land reclamation, nursery trenching and fertilization, pipelines, basement renovation, underground operations, etc.
