3.0T crawler excavator with large excavation radius

-Superior performance, high configuration, and low fuel consumption

-Engine type: Kubota

-Powerful, energy-saving, and fuel-efficient

-Supports OEM, meets environmental standards, and the appearance color can be customized

-Power: 14kW (19HP) @ 2200rpm

-Bucket capacity: 0.1m ³

-Customization cycle: 25 days

-WhatsApp:+8615806625431

-Email: info@sdshinemachinery.com


  Contact Now E-mail Telephone WhatsApp
Product Details

Product Details

The 3.0T crawler excavator has a multifunctional LCD monitor with a large screen and digital display, which comprehensively monitors the working status of the engine (such as speed, water temperature, oil pressure, etc.). Various operating information of the machine can be queried at any time. The function switches are centrally arranged on the control panel, and can be easily selected through point-to-point buttons. With precise matching design and advanced energy-saving control, the machine has low fuel consumption, a branded engine, and strong power, meeting the requirements of efficient operation.

Product parameter

Performance parameters
Bucket capacity (m³)0.1
Rotation speed (rmp)10
Maximum climbing angle (°)58
Maximum digging force of bucket (KN)23.5
Maximum digging force of bucket rod (KN)14
Engine modelKUBOTA
Power/speed (KW/rmp)

14kw(19HP)@2200rpm

Tire model-
System pressure (MPa)24

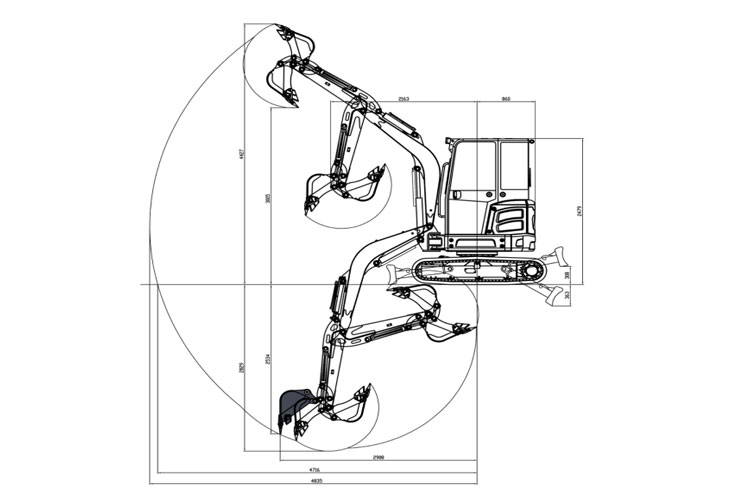

Scope of work
Maximum digging height (mm)4427
Maximum unloading height (mm)3005
Maximum digging depth (mm)2830
Maximum vertical digging depth (mm)2530
Maximum digging radius (mm)4835
Minimum turning radius (mm)2160
Maximum ground clearance of dozer blade (mm)308
Maximum depth of bulldozing board sinking (mm)363
Boom swing angle (left)°69
Boom swing angle (right)°45


Overall size
Overall dimensions length*width*height (mm)4195*1550*2480
Wheelbase (mm)1565
Wheel (rail) gauge (mm)1250
Minimum ground clearance (mm)286

Boom length(mm)

2200

Applications

The product is widely used for indoor demolition, orchard planting, municipal engineering, greenhouses, land reclamation, nursery trenching and fertilization, pipelines, basement renovation, underground operations, etc.

Applications

Product display

3.0T tracked excavator has strong and precise rotation control: improving vibration absorption characteristics to ensure more accurate and stable rotation stop action; By increasing torque reserve, the machine is provided with stronger turning ability.

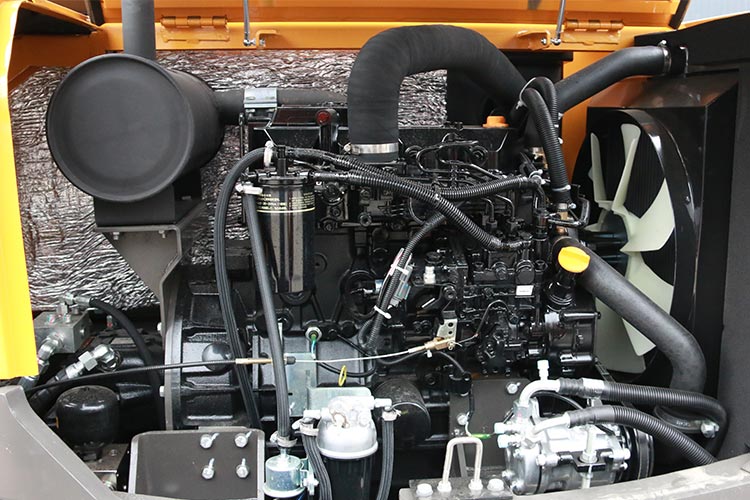

Core components

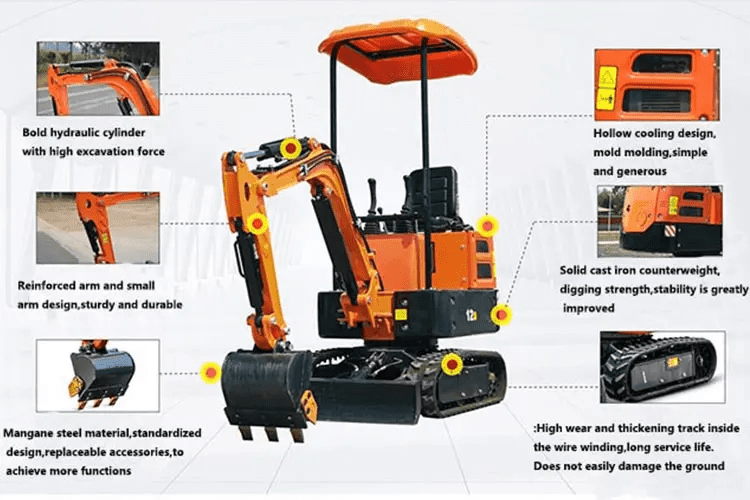

Structure display

Dual pump combined flow technology: Increase the flow rate of the main valve to the boom, stick, and bucket cylinders, and improve the operation speed.

Structure display

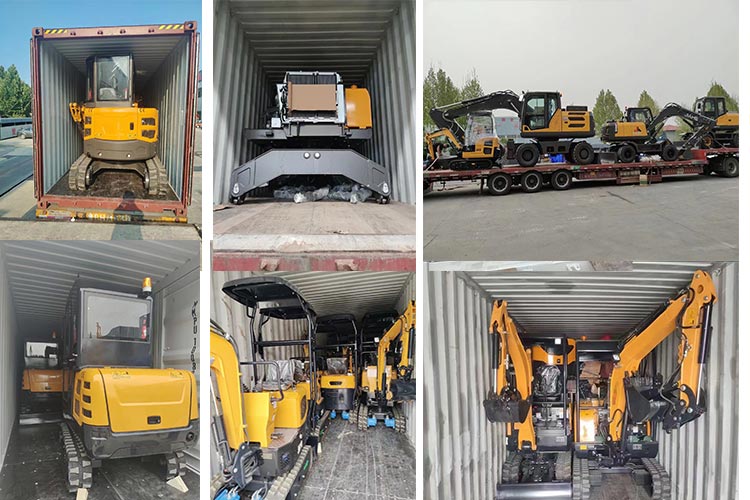

Logistics delivery
