1T crawler excavator compact size

-Power: 7kw/3000rpm

-Bucket capacity: 0.023m ³

-Supports OEM, meets environmental standards, and the appearance color can be customized

-Superior performance, high configuration, and low fuel consumption

-Powerful, energy-saving and fuel-efficient

-Engine type: Kubota

-Customization cycle: 25 days

-WhatsApp:+86 15806625431

Contact Now E-mail Telephone WhatsApp

Product Details

Product Details

The 1T tracked excavator has a smaller size and can be installed in narrow spaces, and can pass through narrow entrances that large machines cannot reach. This makes it very suitable for working in residential areas or urban environments with limited space. Small excavators can be equipped with a range of accessories, such as hammers, augers, and rippers, which enable them to perform various tasks. This versatility makes them valuable tools for many different types of buildings and excavation projects.

Product parameter

Performance parameters
Bucket capacity (m³)	0.023
Rotation speed (rmp)	0-13
Maximum climbing angle (°)	30
Maximum digging force of bucket (KN)	72
Maximum digging force of bucket rod (KN)	4.6
Engine model	KUBOTA
Power/speed (KW/rmp)	7/3000
Tire model	-
System pressure (MPa)	16

Scope of work
Maximum digging height (mm)	2600
Maximum unloading height (mm)	2385
Maximum digging depth (mm)	1715
Maximum vertical digging depth (mm)	1590
Maximum digging radius (mm)	3065
Minimum turning radius (mm)	1480

Overall size
Overall dimensions lengthwidthheight (mm)	28408802220
Cab height (mm)	2220
Wheelbase (mm)	900
Wheel (rail) gauge (mm)	660
Minimum ground clearance (mm)	132
Tail turning radius (mm)	800

Product display

The 1T tracked excavator has high mobility, allowing operators to easily and accurately excavate, move,

and place materials. This makes them ideal choices for jobs that require high precision and control.

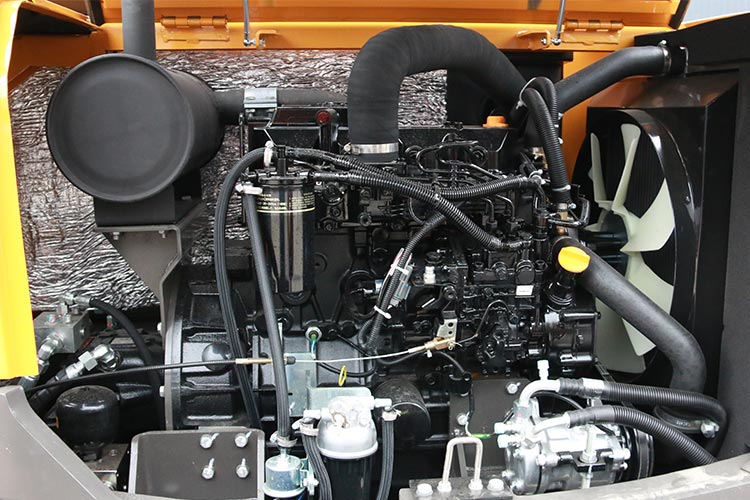

engine

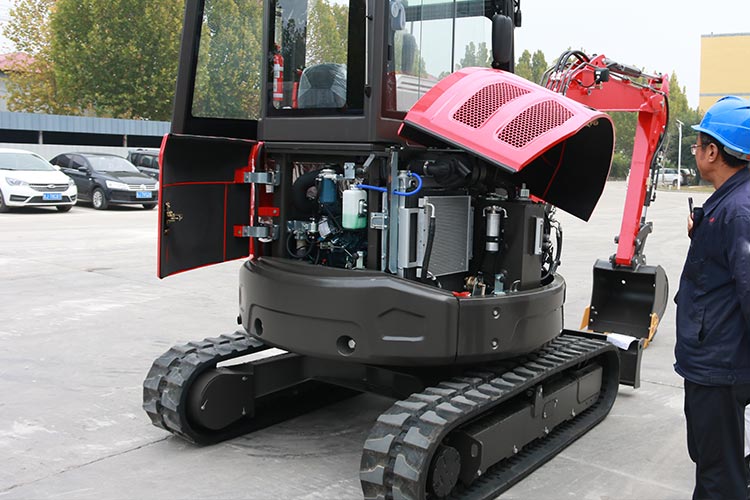

body display

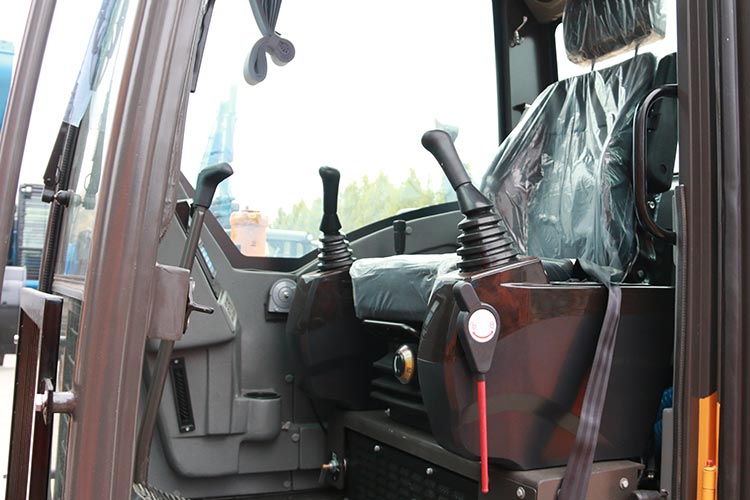

cab

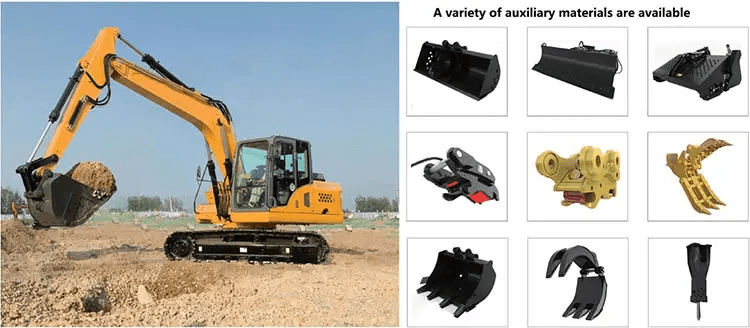

Structural display

The 1T tracked excavator is designed specifically to improve efficiency, and its hydraulic system can provide smooth and precise

movement for the boom and bucket. This enables operators to complete tasks quickly and accurately, saving time and money

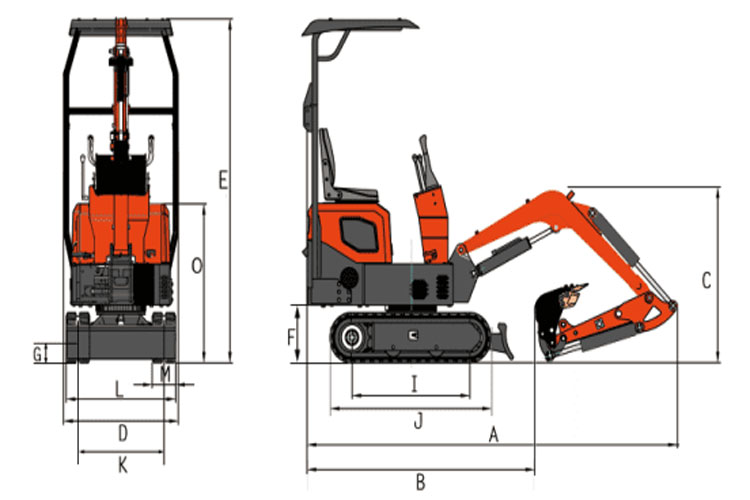

Mechanical drawing

1T tracked excavator body can rotate 360 degrees, adjustable bulldozer.

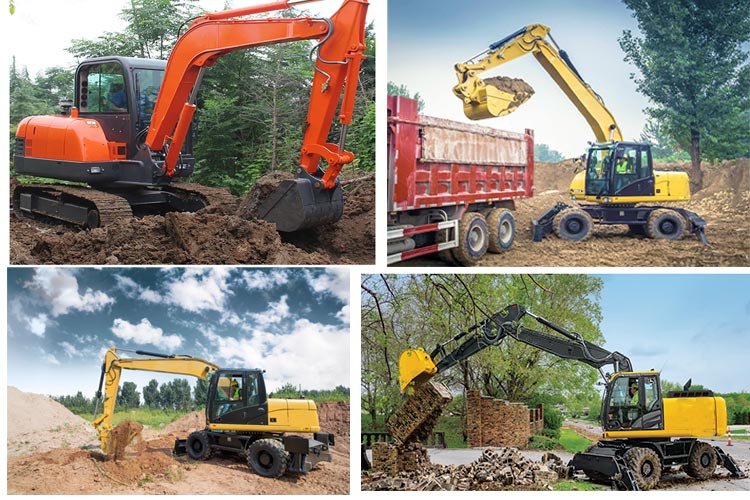

Applications

The 1T mini tracked excavator is widely used for indoor demolition, orchard planting, municipal engineering, greenhouse, land reclamation, nursery trenching

and fertilization, pipeline, basement renovation, underground operations, etc.

Applications
