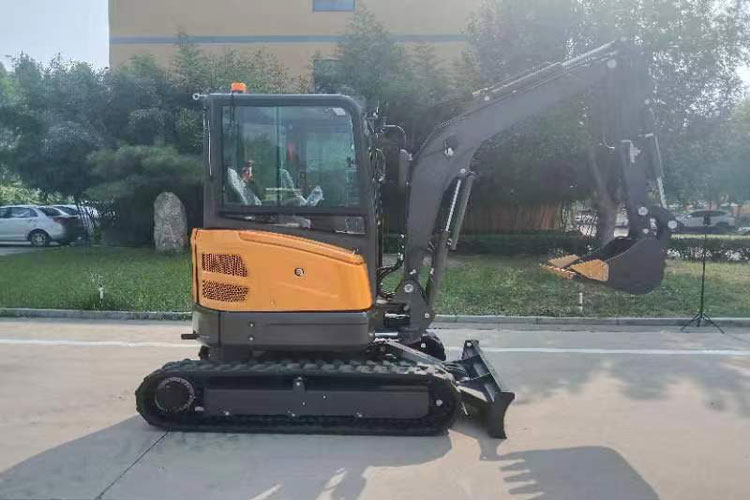

3.0T crawler excavator with Kubota engine

-Power: 14kW (19HP) @ 2200rpm

-Superior performance, high configuration, and low fuel consumption

-Engine type: Kubota

-Powerful, energy-saving, and fuel-efficient

-Supports OEM, meets environmental standards, and the appearance color can be customized

-Bucket capacity: 0.1m ³

-Customization cycle: 25 days

-WhatsApp:+8615806625431

-Email: info@sdshinemachinery.com


  Contact Now E-mail Telephone WhatsApp
Product Details

Product Details

The 3.0T crawler excavator is equipped with an integral reinforced chassis, robot welding, and weld formation, completely eliminating the influence of human factors. The arc is stable, the penetration depth is controllable, and the formation is beautiful. It adopts an internationally renowned brand engine, which meets the Euro 5 emission standards. It has high torque, strong power, energy saving and fuel saving. It is equipped with a standard crushing pipeline and can be equipped with various attachments such as crushing hammers, scarifiers, wood grabbers, and spiral drills, making it versatile for one machine; Iron and rubber tracks can be interchanged at any time, suitable for various construction conditions, and use a deflection arm to easily excavate the wall foot during deflection work.

Product parameter

Performance parameters
Bucket capacity (m³)0.1
Rotation speed (rmp)10
Maximum climbing angle (°)58
Maximum digging force of bucket (KN)23.5
Maximum digging force of bucket rod (KN)14
Engine modelKUBOTA
Power/speed (KW/rmp)

14kw(19HP)@2200rpm

Tire model-
System pressure (MPa)24

Scope of work
Maximum digging height (mm)4427
Maximum unloading height (mm)3005
Maximum digging depth (mm)2830
Maximum vertical digging depth (mm)2530
Maximum digging radius (mm)4835
Minimum turning radius (mm)2160
Maximum ground clearance of dozer blade (mm)308
Maximum depth of bulldozing board sinking (mm)363
Boom swing angle (left)°69
Boom swing angle (right)°45


Overall size
Overall dimensions length*width*height (mm)4195*1550*2480
Wheelbase (mm)1565
Wheel (rail) gauge (mm)1250
Minimum ground clearance (mm)286

Boom length(mm)

2200

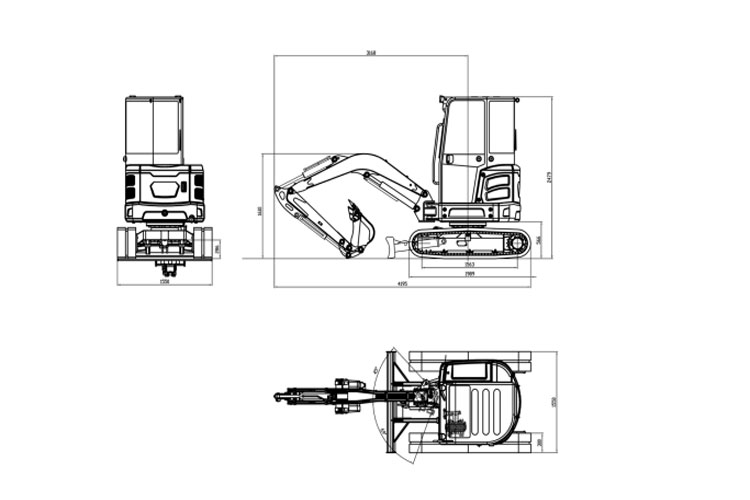

Mechanical drawings


Mechanical drawings

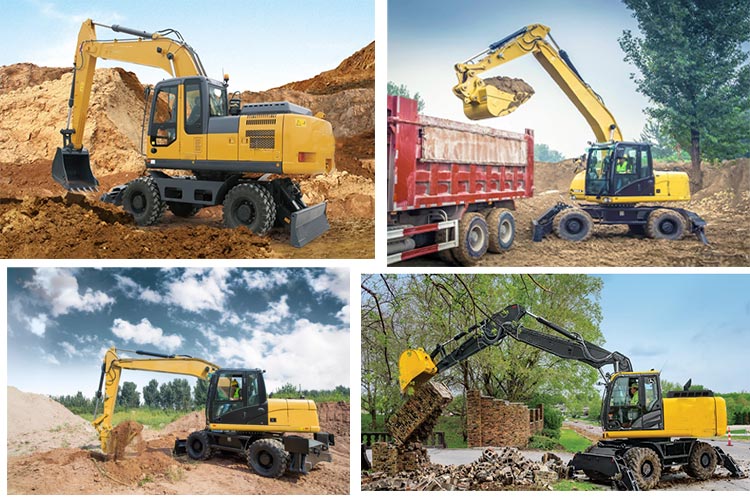

Applications


The product is widely used for indoor demolition, orchard planting, municipal engineering, greenhouses, land reclamation, nursery trenching and fertilization, pipelines, basement renovation, underground operations, etc.

Applications

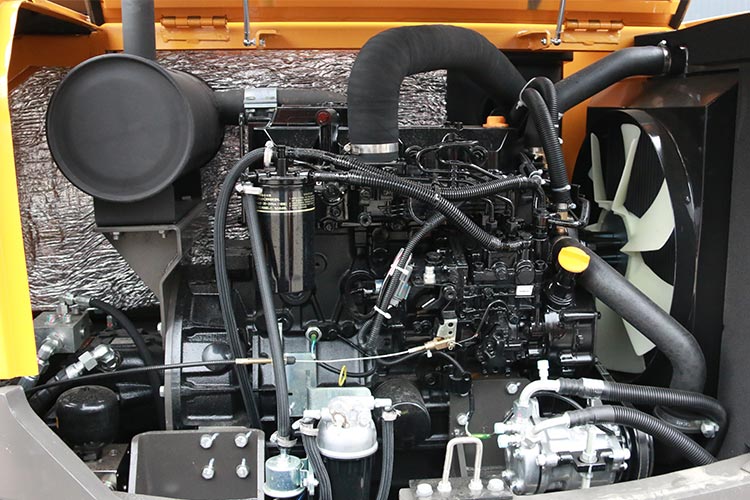

Product display

The high-end configuration of the 3.0T tracked excavator uses internationally renowned hydraulic components to ensure high reliability of the hydraulic system.

Product display

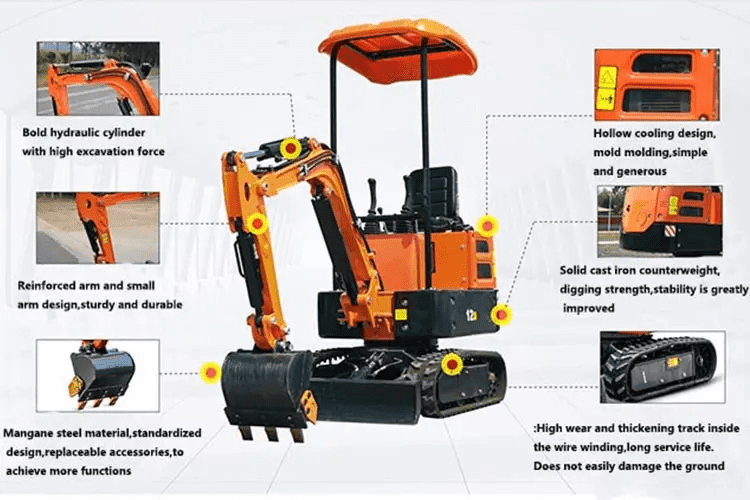

Structure display

Structure display

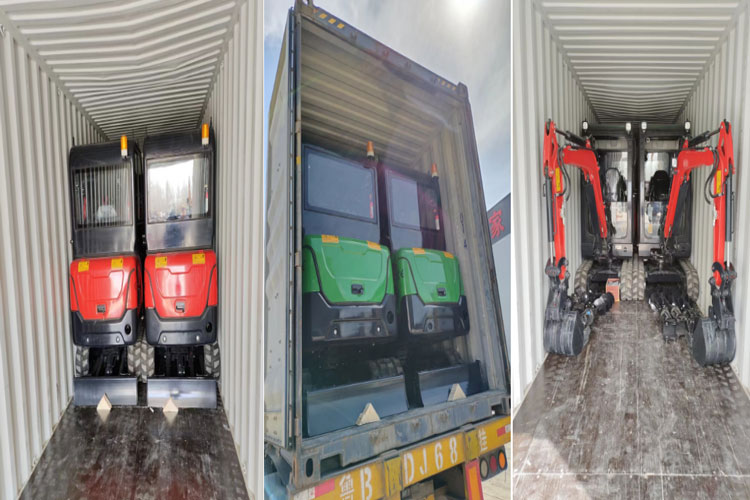

Logistics delivery

Logistics delivery
