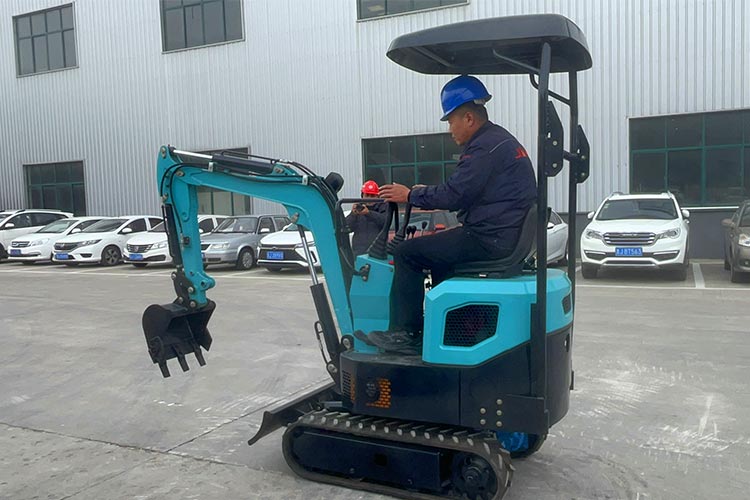

1.8T small tracked excavator with Kubota engine

-Supports OEM, meets environmental standards, and the appearance color can be customized

-Powerful, energy-saving, and fuel-efficient

-Superior performance, high configuration, and low fuel consumption

-Engine type: Kubota

-Power: 18.4kw/2350rpm

-Bucket capacity: 0.06m ³

-Customization cycle: 25 days

-WhatsApp:+8615806625431

-Email: info@sdshinemachinery.com


  Contact Now E-mail Telephone WhatsApp
Product Details

Product Details

The 1.8T small tracked excavator adopts an internationally renowned brand engine that meets the Euro 5 emission standards. It has high torque, strong power, energy-saving and fuel-efficient features, advanced hydraulic system, funnel shaped fan cover, greatly improving the engine's air intake and system heat dissipation capacity, ensuring continuous and efficient operation of the machine. Accurate matching design and advanced energy-saving control ensure low fuel consumption of the machine.

Product parameter

Performance parameters
Bucket capacity (m³)0.06
Rotation speed (rmp)10-12
Maximum climbing angle (°)35
Maximum digging force of bucket (KN)14
Maximum digging force of bucket rod (KN)10
Engine modelKUBOTA
Power/speed (KW/rmp)18.4/2350
Tire model-
System pressure (MPa)18

Scope of work
Maximum digging height (mm)3365
Maximum unloading height (mm)2385
Maximum digging depth (mm)2050
Maximum vertical digging depth (mm)1725
Maximum digging radius (mm)3860
Minimum turning radius (mm)1720
Maximum ground clearance of dozer blade (mm)230
Maximum depth of bulldozing board sinking (mm)275
Boom swing angle (left)°75
Boom swing angle (right)°45


Overall size
Overall dimensions length*width*height (mm)3865*1050*2270
Cab height (mm)2270
Wheelbase (mm)1230
Wheel (rail) gauge (mm)820
Minimum ground clearance (mm)210
Tail turning radius (mm)1125

Applications


The product is widely used for indoor demolition, orchard planting, municipal engineering, greenhouses, land reclamation, nursery trenching and fertilization, pipelines, basement renovation, underground operations, etc.

Applications

Logistics

Logistics

Product display

The 1.8T small tracked excavator adopts advanced turbocharging technology to enhance the machine's adaptability to high altitudes

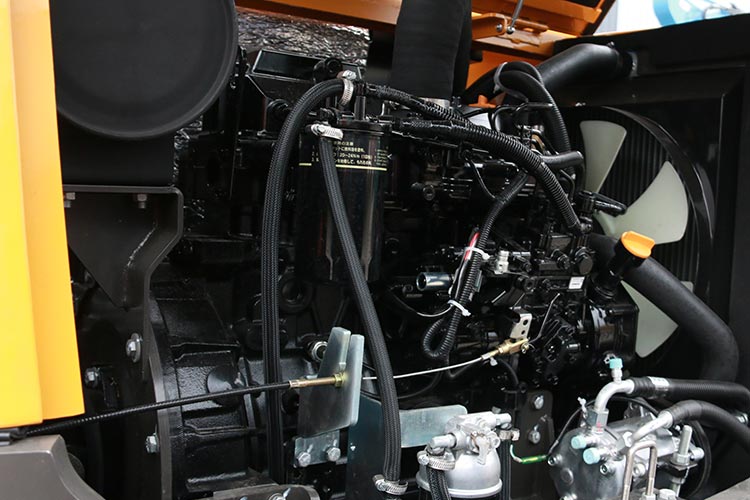

Core components

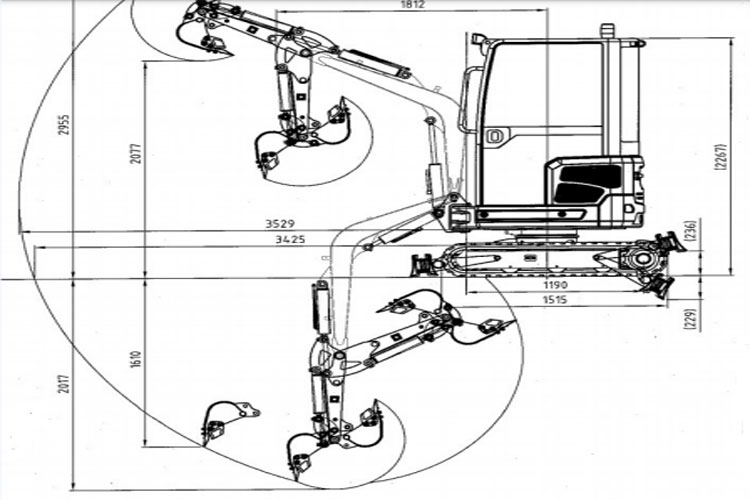

Mechanical drawing

Mechanical drawing
